Fly Sky FS-i6 - Model Installation

直升机模型的安装 Helicopter model installation
CH1
CH2
CH3
CH4
CH5
CH6
Gyroscope陀螺仪
Pitch 螺距
油门舵机
Throttle servo
方向舵机
Rudder servo
副翼舵机
Aileron servo
升降舵机
Elevator servo
接收机 Receiver

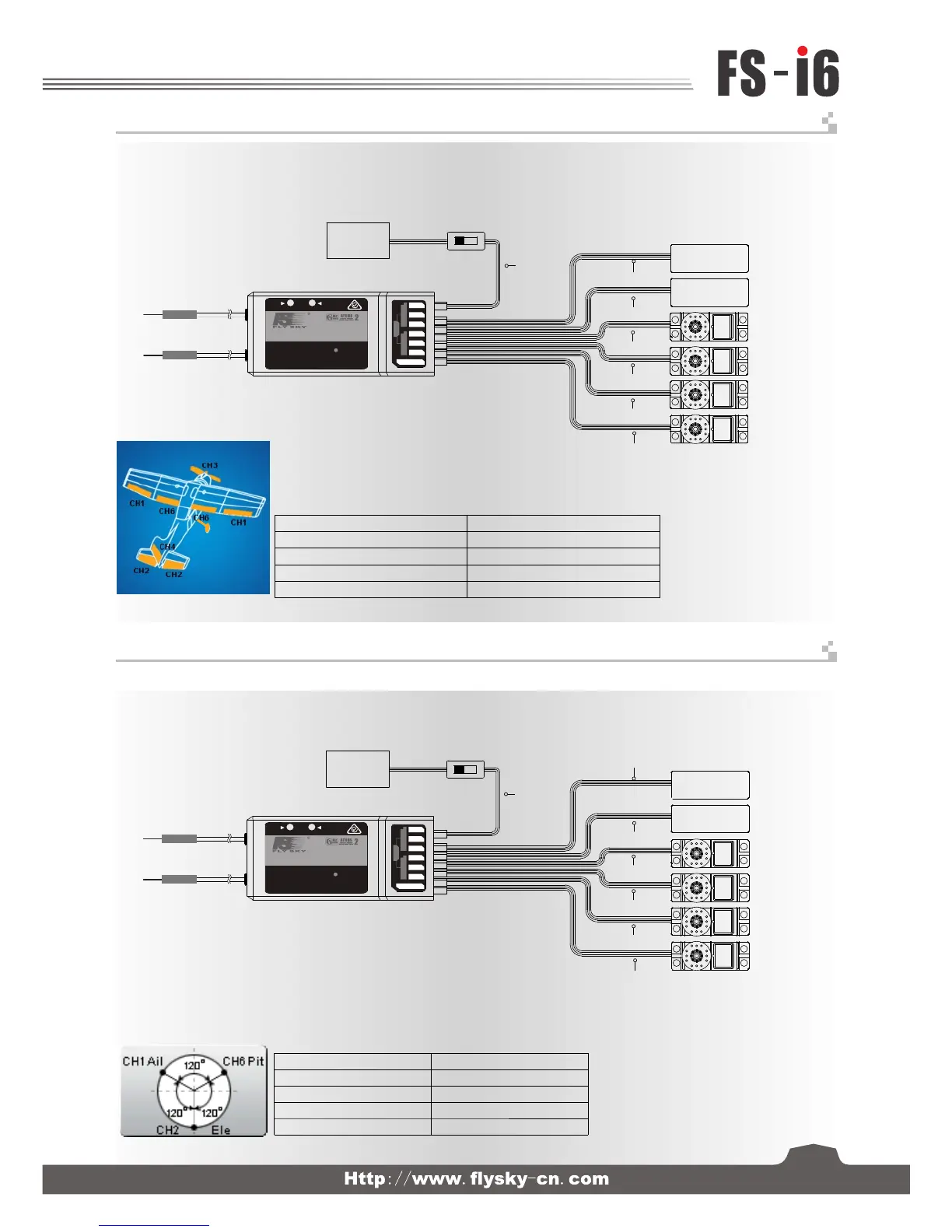

接收机和直升机的连接方法，例如：
结构：可变螺距（120度）+陀螺仪
Ch1：副翼Aileron Ch2：升降Elevator
Ch3：油门Throttle Ch4：方向Rudder
Ch5：陀螺仪Gyroscope Ch6：螺距Pitch
Receiver and helicopter connections, for example:
Structure: variable pitch(120 degrees)+governor
飞机模型的安装 Airplane model installation
接收机 Receiver
B/V
Aux.1起落架
Aux.2襟翼
CH1
CH2
CH3
CH4
CH5
CH6
油门舵机
Throttle servo
方向舵机
Rudder servo
副翼舵机
Alieron servo
升降舵机
Elevator servo
开关 Switch
电池
接收机和固定翼的连接方法，例如：
结构：副翼+襟翼+起落架
Ch1：副翼Aileron
Ch2：升降Elevator
Ch3：油门Throttle
Ch4：方向Rudder
Ch5：起落架
Ch6：襟翼Flap
Connection method for the receiver and
the fix wing, for example:
Structure: Two ailerons+flap+The landing gear
Battery
B/V
开关
电池
Battery
Switch
A
LED
UPDATE
FS-IA6B
6 CHANNELS RECEI VER
2.4
GHz
4.0-6.5V/DC
SERVOSENS
CH5
CH6
B/VCC
CH2
CH3
CH4
PPM/CH1
i-BUS
A
LED
UPDATE
FS-IA6B
6 CHANNELS RECEI VER
2.4
GHz
4.0-6.5V/DC
SERVOSENS
CH5
CH6
B/VCC
CH2
CH3
CH4
PPM/CH1
i-BUS
Digitalproportionalradiocontrolsystem
12
CH5
The landing gear
