4颗螺丝 4 screws
(图 13.1)
右总成座
左总成座
8颗螺丝 8 screws
(图 13.2)
13.
左右手摇杆模式调整

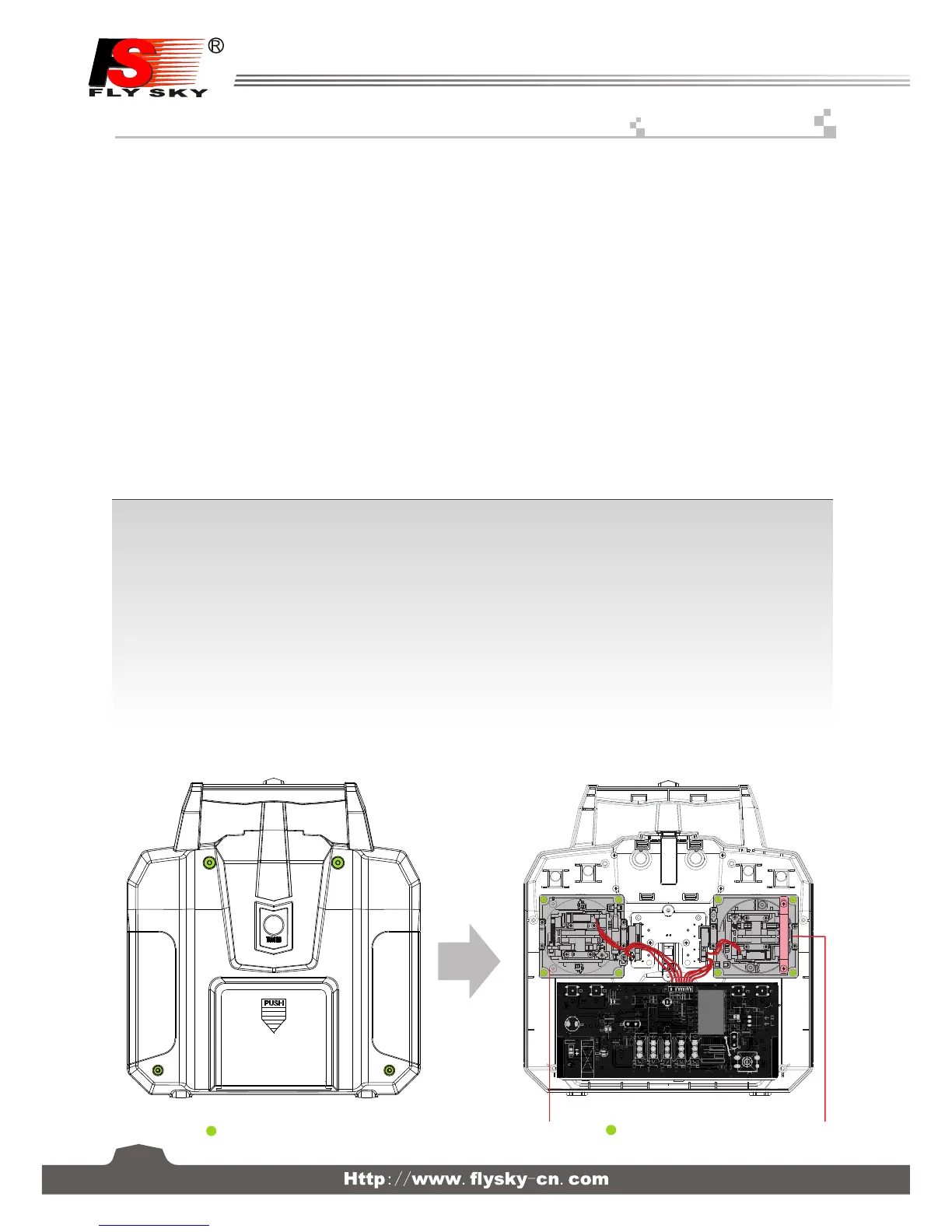

功能说明 ：
此功能是针对不同用户的不同操作习惯而设定的，用户可通过以下操作方式进行调整。
发射机左右手摇杆模式互换的步骤如下：
1、打开发射机的电池盖，取下电池；
2、用螺丝刀卸下锁住发射机后盖的4颗螺丝 (如图13.1)，并妥善放置；
3、轻轻地拨下发射机后盖电线插头，即可看到和 (图13.2) 一样的布局；
4、用小型十字螺丝刀卸下总成8颗螺丝，并妥善放置；
5、将左右总成座互换位置旋转180度，排好电线，并锁紧螺丝；
6、将发射机后盖电线插头小心地插入主板，重新合上发射机的后盖，并锁紧螺丝；
7、装入电池，盒上电池盖，开机，根据刚刚的修改选择合适的“sticks mode”类型并保存,(参考P24 操纵杆模式)；
8、检查操纵杆和微调按键的位置及方向,是否正确。
19
Function discription:
This feature is set for different operating habits of different users , and the user can
adjust by the following operation.
How to interchange right and left stick mode of transmitter
1. Open the transmitter battery cover, and remove the battery;
2 .Use a screwdriver to remove 4 screws that the locking back cover of transmitter
(Figure 13.1), and properly placed;
3.Gently unplug the plug wires of transmitter cover , and you can see layout like
(figure 13.2) shown.
4.Remove 8 screws from the seat assembly with a small screwdriver , and
properly placed;
5 .Rotated transposition of the left and right seat assembly to 180 degrees, and organize
line wire well, and locking the screws;
6. Plug wires of the transmitter cover carefully into the mainboard, re-close the transmitter
cover and locking the screws;
7. Install the battery and then turn on the receiver. Select the proper "stick mode" based
on the previous modification and save it.（Please refer to the P24 stick mode）
8. Check the operation stick and trim button position and direction.
right seat assembly
left seat assembly
Right and left stick can be adjustable.
