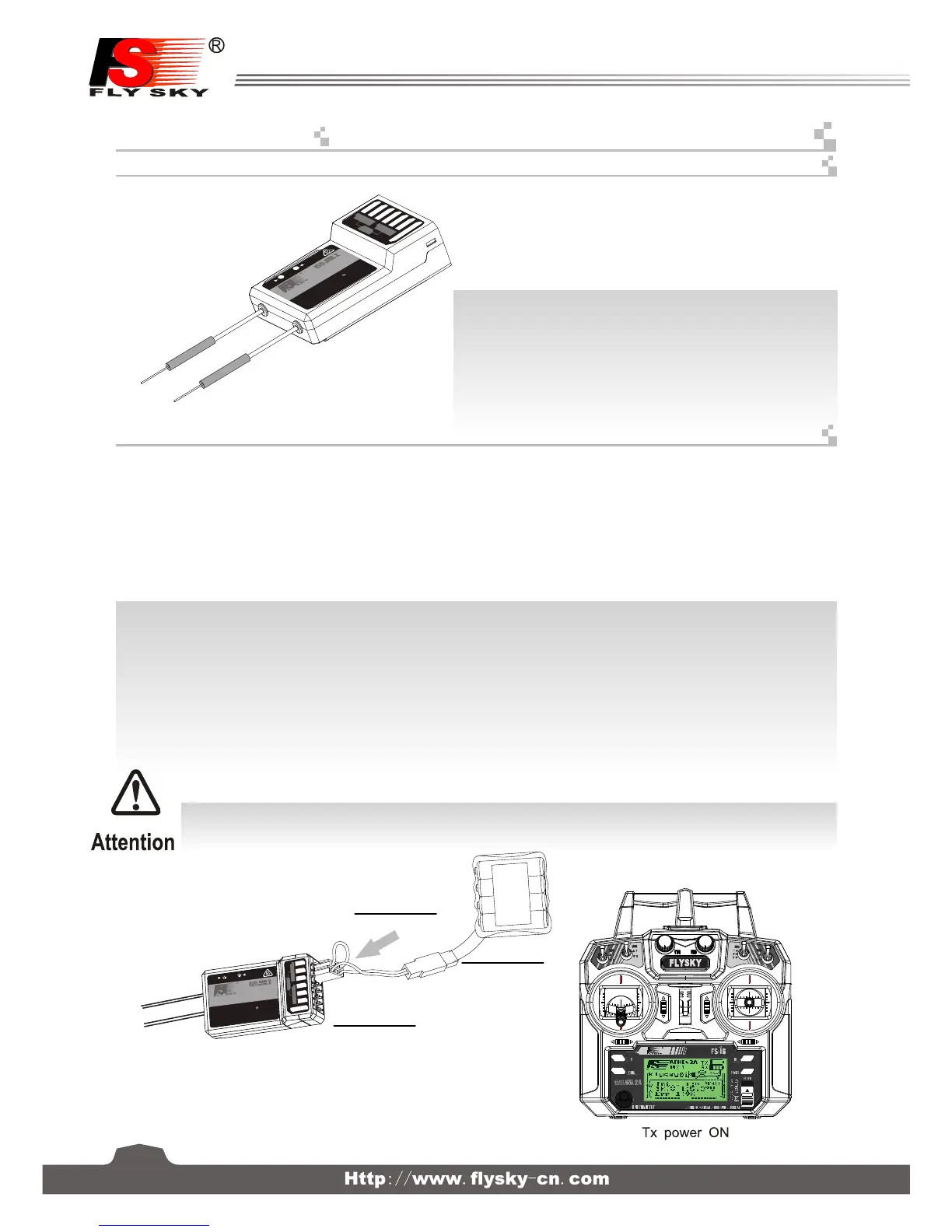

9.03. Receiver operation instruction
线
Bind cable
Receiver
Battery
14
Binding Setup
Port Setup
使
1.
2.
3. 用线B/VCC
4. 使4.0-6.5VDCCH1- CH6LED
5. 退
6. 线LED
7.
(Pic 12.1)
(Pic 12.2)
CH1-CH6
Bind,VCC
OUT出PPM数i-BUS线
IN
CH1/PPM: CH1PPM
CH1-CH6: represent relevant channel of transmitter.
Bind,VCC: represent the channel used for matching and input
power respectively.
OUT: Represent i-BUS port of outputting PPMS data and be used
for connecting the serial bus receiver to expand channels.
IN: Represent input ports of all kinds of sensor data, and data
acquisition modules can be connected in serial optionally.
All receivers are bound to their respective transmitter at production time. If you want to bind it with another transmitter,
please follow the steps below:
1. Install the battery in the transmitter, and turn on the power.
2. Open the main menu, and select "RX setup" function in the second page, then touch "Bind with a receiver" to enter bind mode.
3. Insert the standard bind cable into the power supply channel.
4. Connect the 6VDC power connector to any channel from CH1 to CH 6 with correct polarity to enter bind mode, The receiver
LED will flash at this time.
5. The transmitter will exit the bind mode automatically after having successfully bound with the transmitter.
6. Pull off the bind cable and restart the receiver. Please connect the servos and other telemetry modules to the receiver to check
if everything operates normally.
7. If anything is wrong, please repeat the above steps to bind again.
后, 会
Notice: The bound transmitter and receiver will work abnormally if the transmitter or the receiver enters the binding state
by mistake. In other words, the receiver cannot be controlled by the transmitter. If so, you need to restart the transmitter
and the receiver.
515
CH1/PPM: output of channel 1 or PPM output.
(Please see the RX setup)
