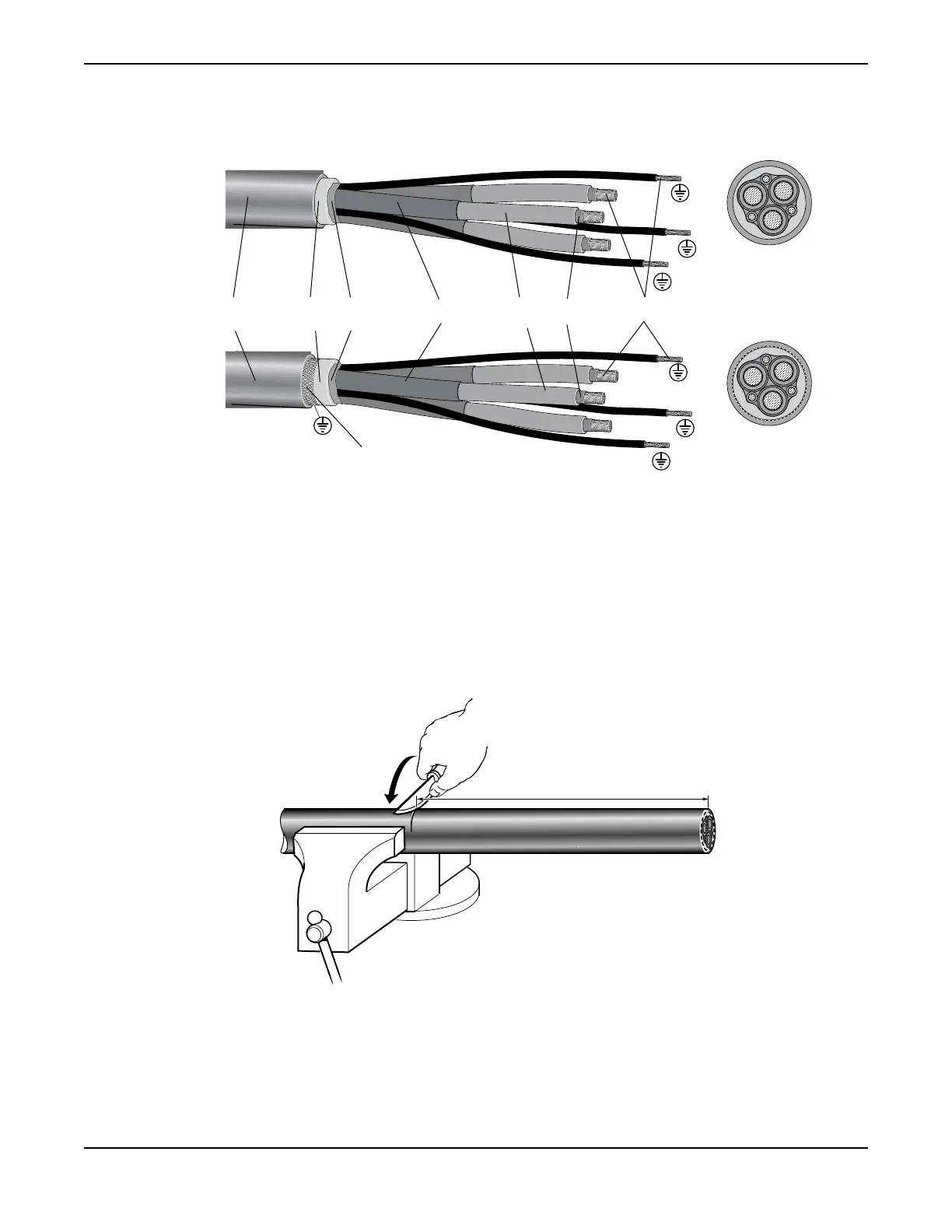

The upper illustration (A) shows a cable without screen. The lower illustration (B) shows a screened cable.
1. Outer cable sheath
2. Inner sheath
3. Conductive foil
4. Conductive layer
5. Conductor insulation
6. Conductive foil
7. Copper conductor
8. Shield wires
1. Peel off 420 mm of the cable casing at the connection ends of the cable.
a) Make the vertical cut.
b) Make the horizontal cut.
Installation
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
67
