F000174

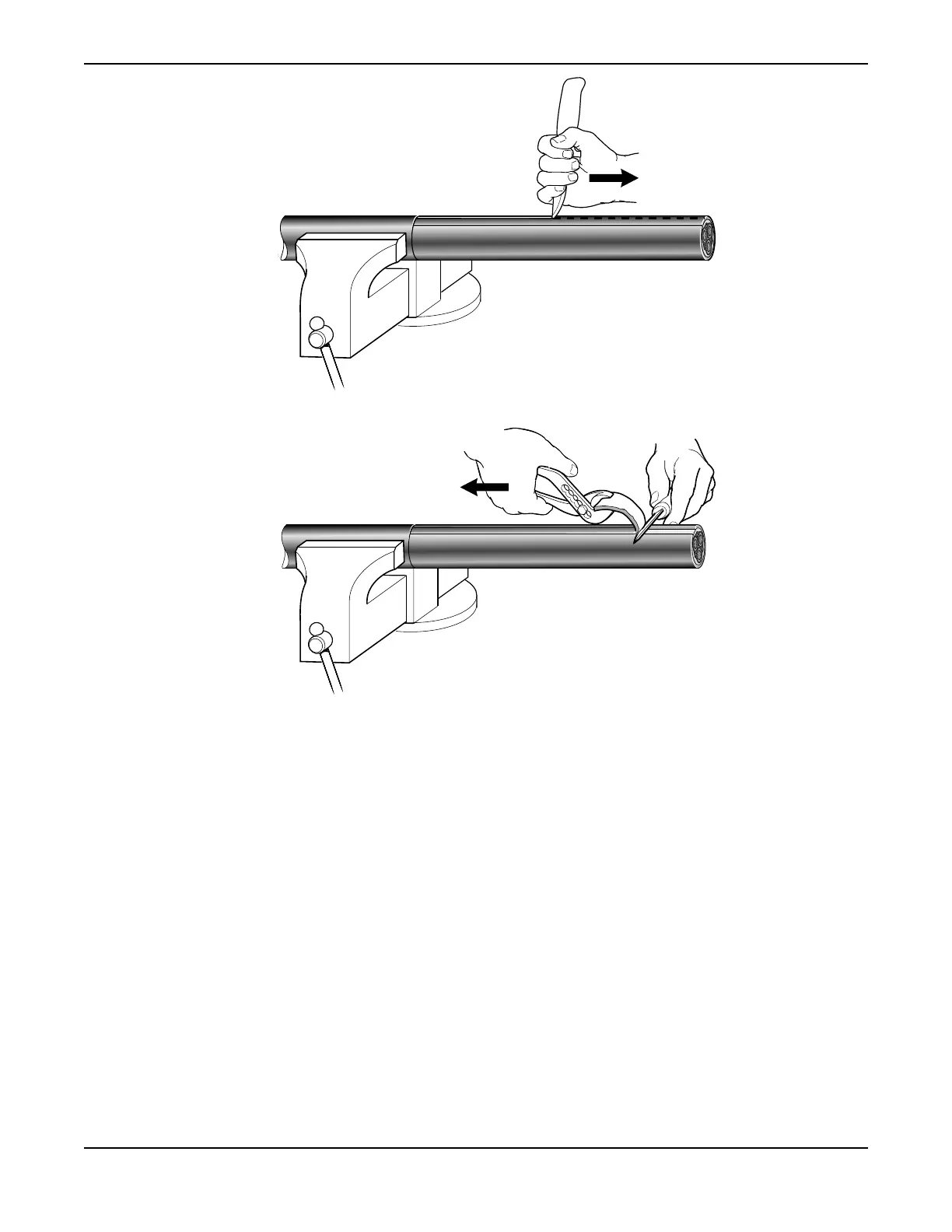

c)
Remov
e the cable casing.
F000175
2.
P
eel off
the casing from the leads.
Installation
68
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
71
73
