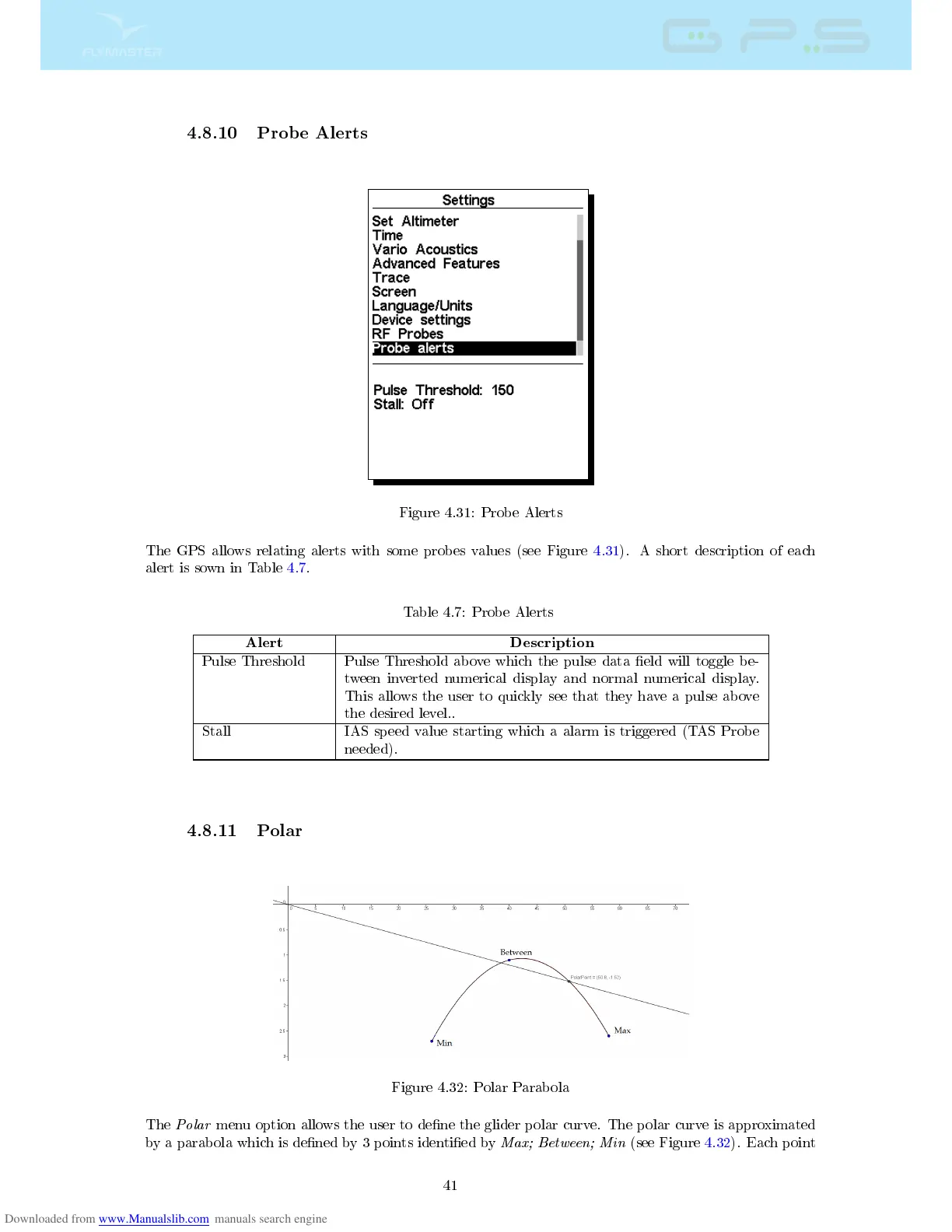

4.8.10 Probe Alerts
Figure 4.31: Probe Alerts
The GPS allows relating alerts with some probes values (see Figure 4.31). A short description of each
alert is sown in Table 4.7.
Table 4.7: Probe Alerts
Alert Description
Pulse Threshold Pulse Threshold above which the pulse data eld will toggle be-
tween inverted numerical display and normal numerical display.
This allows the user to quickly see that they have a pulse above
the desired level..
Stall IAS speed value starting which a alarm is triggered (TAS Probe
needed).
4.8.11 Polar
Figure 4.32: Polar Parabola
The
Polar
menu option allows the user to dene the glider polar curve. The polar curve is approximated
by a parabola which is dened by 3 points identied by
Max; Between; Min
(see Figure 4.32). Each point
41
