Issue/Rev. 0.2 (6/14)
AB06069 • Page 7
Section III – Configuring a SLIP Connection

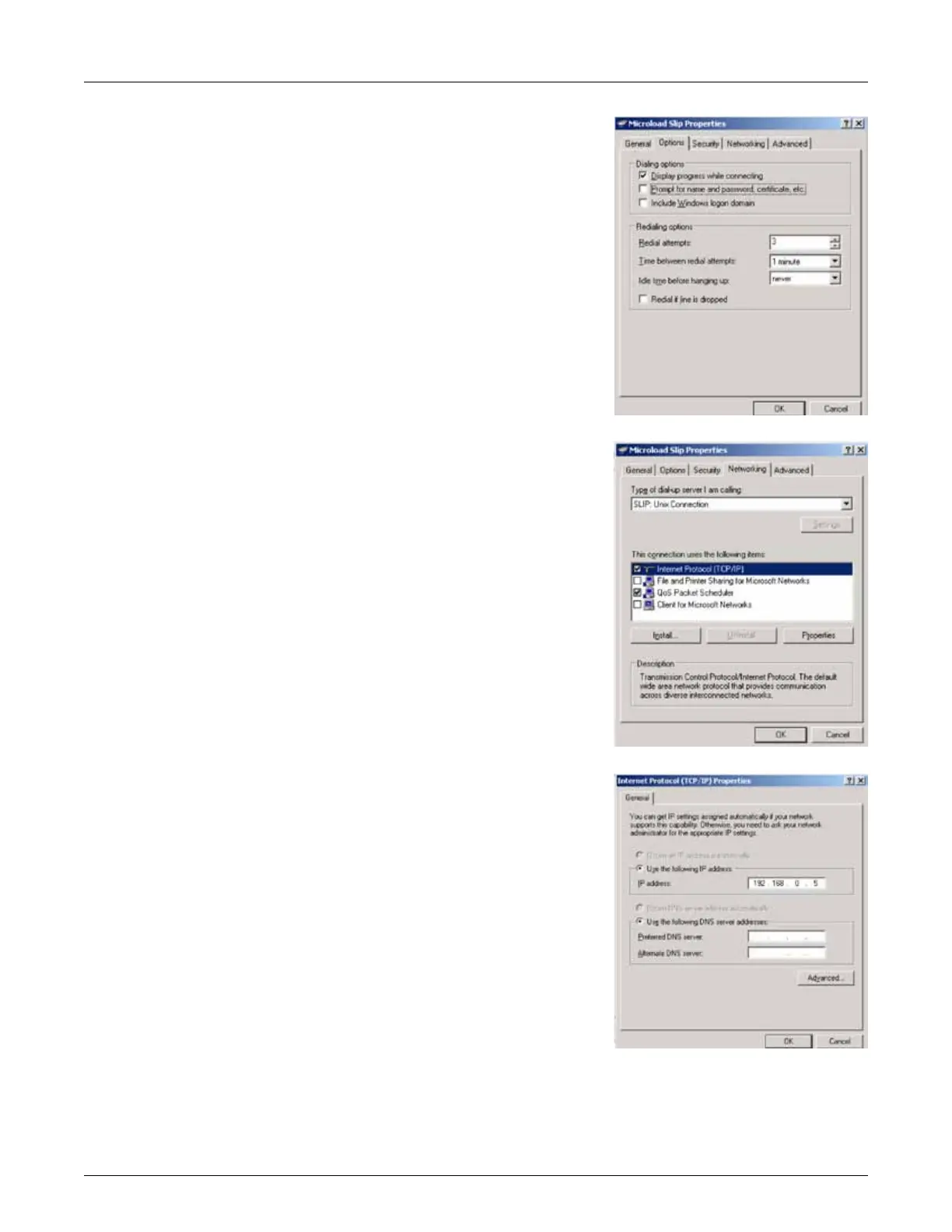

• Click on the Options tab. Uncheck the “Prompt for name and
password, etc.” box. The other options can be left the same.
• Click on the Networking tab.
– From the drop down menu for the type of dial up server
I am calling, select “SLIP: UNIX Connection”
– Clear all checkboxes except for Internet Protocol (TCP/IP)
and QoS Packet Scheduler.
– Select “Internet Protocol (TCP/IP) ” in the list box and
• A new window will appear that is labeled “Internet Protocol
(TCP/IP) Properties”
– Select “Use the following IP address”
– Specify an address that is DIFFERENT from but on
the same subnet as the AccuLoad you are using
For example, if the AccuLoad is configured for 192.168.0.1,
set the PC to 192.168.0.5, or 192.168.0.10, etc.
Click <OK> to exit the dialog then click <OK> at the bottom of the AccuLoad SLIP Connection Properties window.
If all is configured correctly, the dialog should report ‘connected’ and the link will be established successfully.
