2. Prepare incoming gas line and check with
local codes regarding the use of Teon
tape. Complete your gas line installation
by connecting incoming gas line with ex-
ible gas line. Secure tightly with a wrench,
but DO NOT OVERTIGHTEN
   

for leaks after the installation
   
      -
     

-

     


-
-
vice, or maintenance can cause


additional information, consult
  

FIREPLACE INSTALLATION
Continued

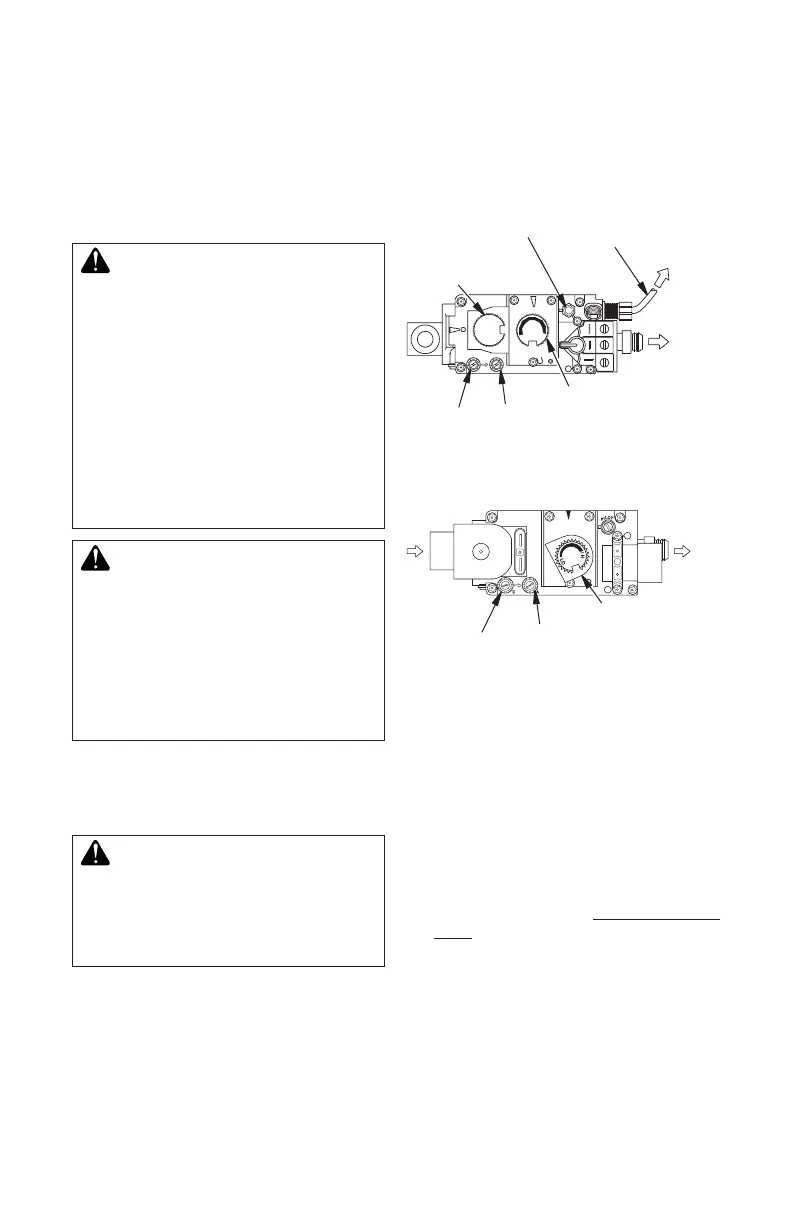

GAS SUPPLY TESTING
Note: This section is intended as a guide for
qualied service technicians installing gas to
the appliance.
CAUTION: Do not connect
-
   
-

The millivolt system with a manual HI/LO
applies only to the (V)DVF36TPNA/TSDTA
and (V)DVF36TNPA/TSTPA models. Gas
control valve is accessible from lower control
compartment. Two pressure taps are provided
on gas control valve for a pressure gauge
connection (see Figure 44).
O
F
F
P
I
L
O
T
O
N
L
O
H
I
P
I
L
O
T
EA
16AI
7
TPTH TP TH
Figure 44 - Millivolt Control Valve
Pilot
Adjustment Cap
ON/OFF
Knob
Outlet
Pressure
Inlet
Pressure
Pilot Gas Line
Do Not Kink
To Pilot
Burner
To Main
Burner
Flame
Adjustment
Knob
E
A
O
L
H
I
L
P
I
O
T
To Main
Burner
Outlet
Pressure
Inlet
Pressure
Flame
Adjustment
Knob
From
Gas
Supply
Figure 45 - Electronic Control Valve
INSTALLING LOG SET
Before proceeding, make sure gas control
valve is in the OFF position. Logs have been
shrink wrapped on a cardboard backing
to prevent breakage during shipping. Cut
around perimeter of each log and pull gently
on shrink wrap to expose log. Do not pull on
log to release it from shrink wrap as this may
damage logs.
1. Remove lower louver access panel in
replace (see step 1 of Wall Switch Instal-
lation, page 21).
2. Remove screen rod by sliding it either to
the left or right of replace until one of the
rod ends is free and completely remove
screen from replace.
3. To open glass door, undo latches located
on top and bottom of rebox (see Figure
46, page 25). Note: Use caution when
opening these latches. Carefully open
door by swinging it to the left. Glass door
is mounted to rebox with 5 screws.
The electronic system applies to the (V)
DVF36TPNEA/TSTEA and (V)DVF36TPN-
PEA/TSTPEA models (see Figure 45).
