Main wing installation
4
Model assembly
EN
Flap and aileron Linkage rod installation

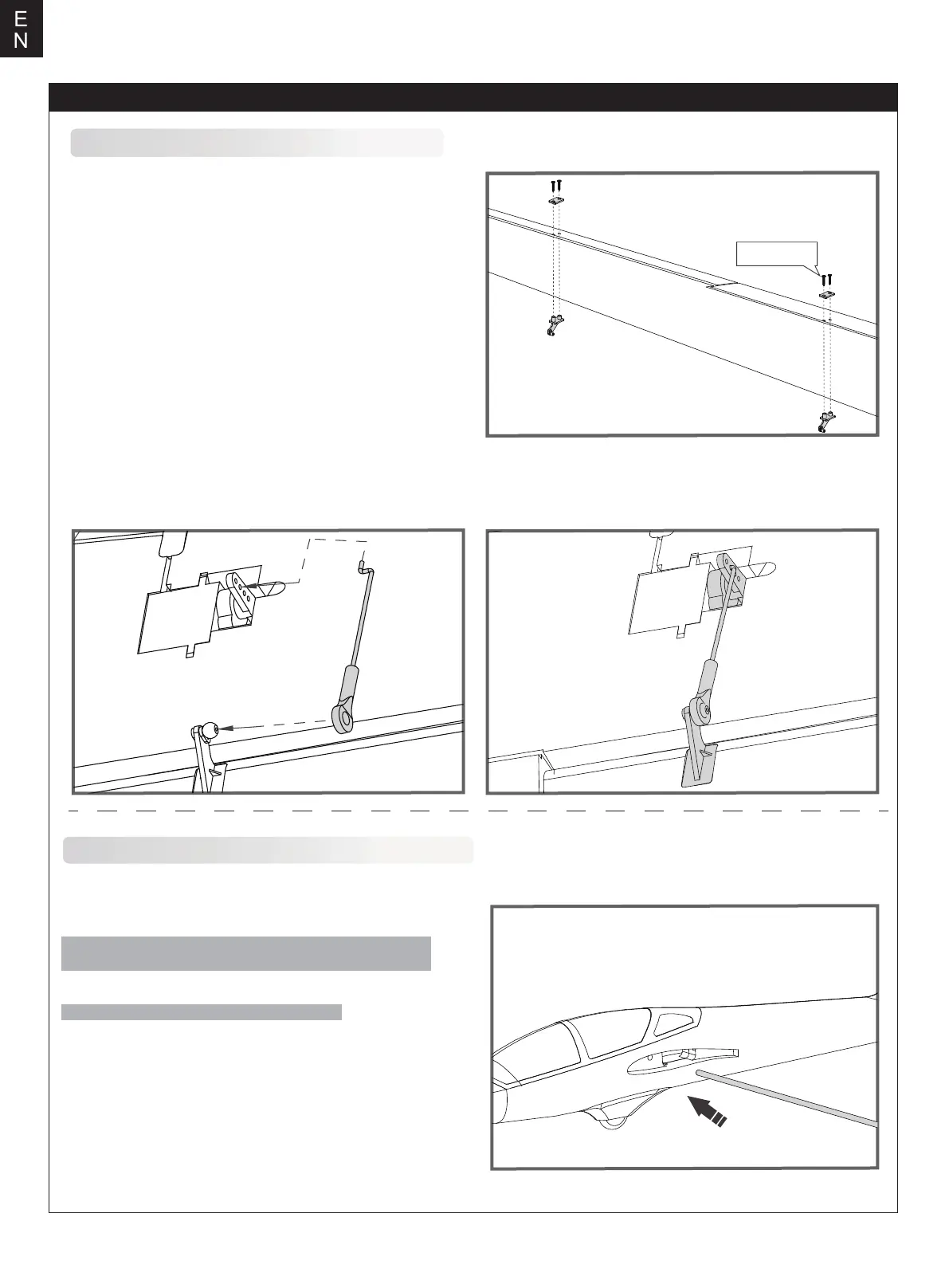

1.Open the accessory bag and take out the control horn
and gasket for ailerons and flaps. Install the control horns
and gaskets in aileron and flap slots as shown and screw
in place.
2.Make sure the servos are in neutral position. Attach the flap and aileron linkage rods to the corresponding holes in the flap
and aileron control arms from the outside as shown (Please refer to the control horn and servo arm settings in manual ). And
then install the ball buckle at the other end of the linkage rods to the ball head at each control horn on control surfaces.
1.Slide the tube into the fuselage.
Notice: Loosen the screws at the shown positions before
applying the wing tube.
2.Install both wing halves over the wing tube and into the wing
slot of the fuselage.
Notice: Connect CH1, CH6, to Y harness.
3.Secure the screws in place as shown.
KA1.7*7
