Annex

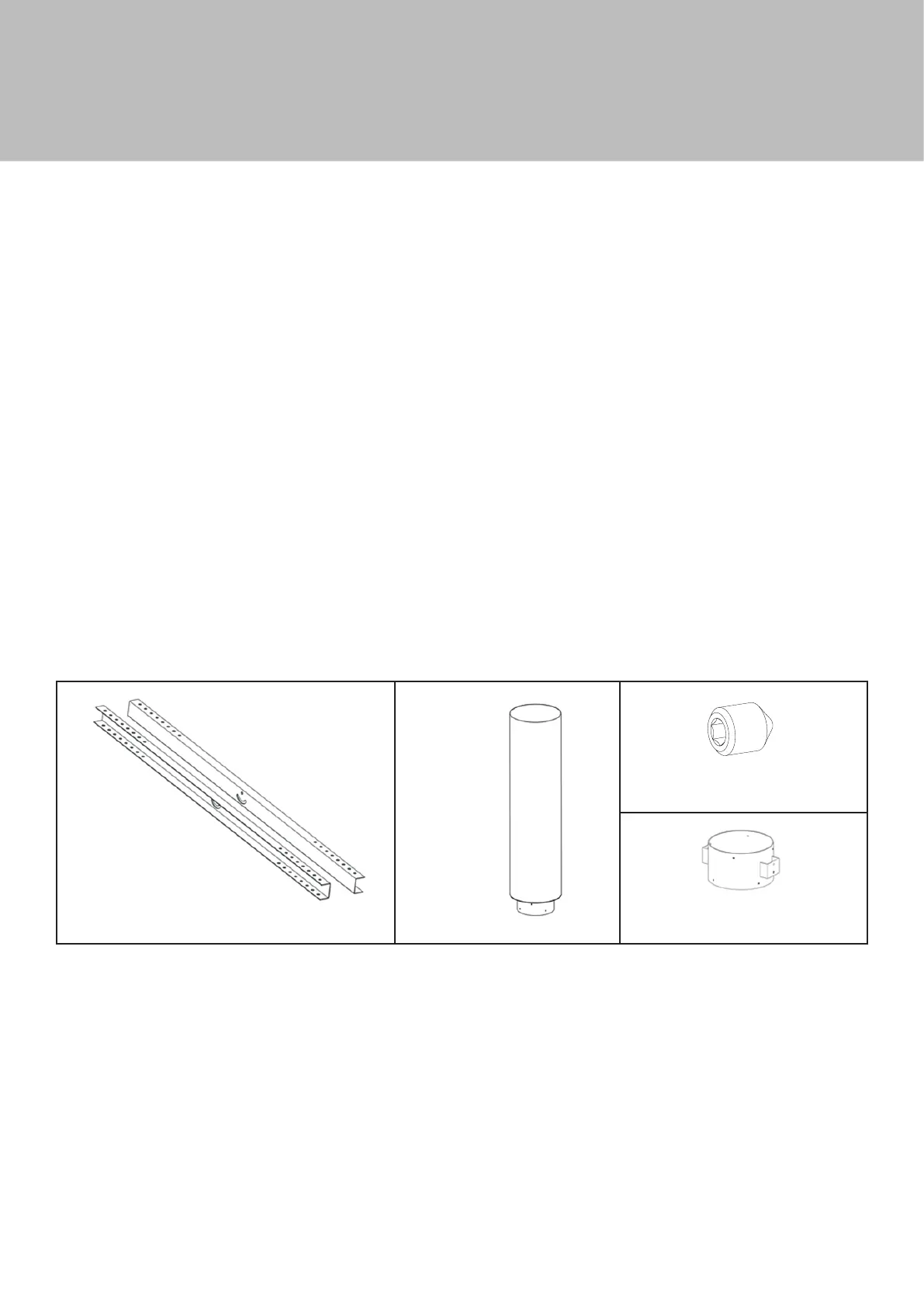

Mounting Bars (x2)
Support Collar (x1)
Drum (x1)
Cramping screws M8x10 (x8)
The dimensions are as follows:
• Inside Diameter: 8 inches (200 mm).
• Outside Diameter: 10 inches (254 mm).
It is essential to note that the adjustable suspension plate is intended exclusively for use with the Domofocus, Gyrofocus,
Ergofocus, Bathyscafocus, Meijifocus, Agorafocus 630.
Components of the adjustable suspension plate include:
• 2 Mounting bars
• 1 Support collar
• 1 Drum
• 8 Cramping screws (M8x10)
For installation, the mounting bars can be cut to the required length and must be securely attached to the rafter/structure using
lag bolts (for wood installation) or through bolts (for wood or metal installation). This secure attachment is necessary to support
