Installation

INCLUDED PARTS, MATERIALS AND REQUIRED TOOLS FOR INSTALLATION

• The appliance and its designated components include the firebox, Suspension plate, steel flue pipe, focus kit (comprising a heat-

protective glove, mounting gloves, and a can of touch-up paint, ash removal hatch), and insulating washers.

• Essential tools for installation: drill, M8 allen key, level, screwdrivers, M12 key, scaffolding (up to underceiling height).

• A minimum of 2 persons is required for the installation process.

• Cover disc (OPTION).

• Focus steel flue extension (OPTION).

• Custom suspension plate (OPTION).

• Adjustable suspension plate (OPTION).

• Rotation restricter (OPTION).

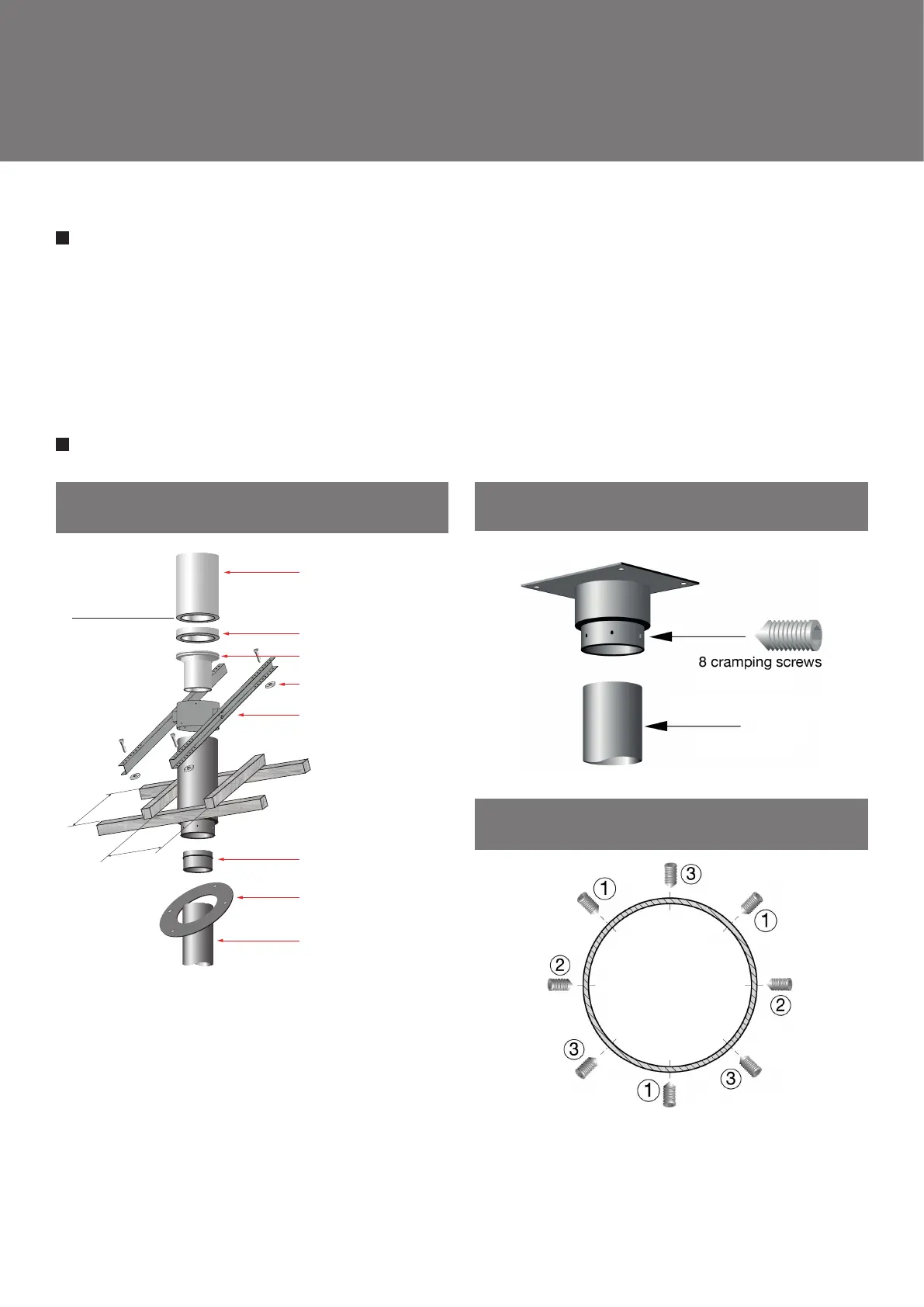

ASSEMBLY DETAILS

A. STAINLESS STEEL CHIMNEY SYSTEM PLATE SETUP AND

CONNECTION

Anti-heat loss washers

Oblique cover disc

Focus steel flue

Adjustable suspension plate

Focus 8" (200 mm) universal adaptor

14" mini

355 mm mini

Slip connector: same brand

as the class A insulated chimney

Class A insulated chimney pipe

8" id - 10" od

(200 mm int./250 mm ext.)

This point 3" (75 mm) mini

below finished ceiling

Finishing collar

B. FLUE ATTACHMENT TO SUSPENSION PLATE

focus steel flue

conduit en acier

8 vis pointeaux

C. ORDER IN WHICH TO TIGHTENING THE PLATE SCREWS

(TO SECURE PROGRESSIVELY)
