CLEARANCES TO COMBUSTIBLES

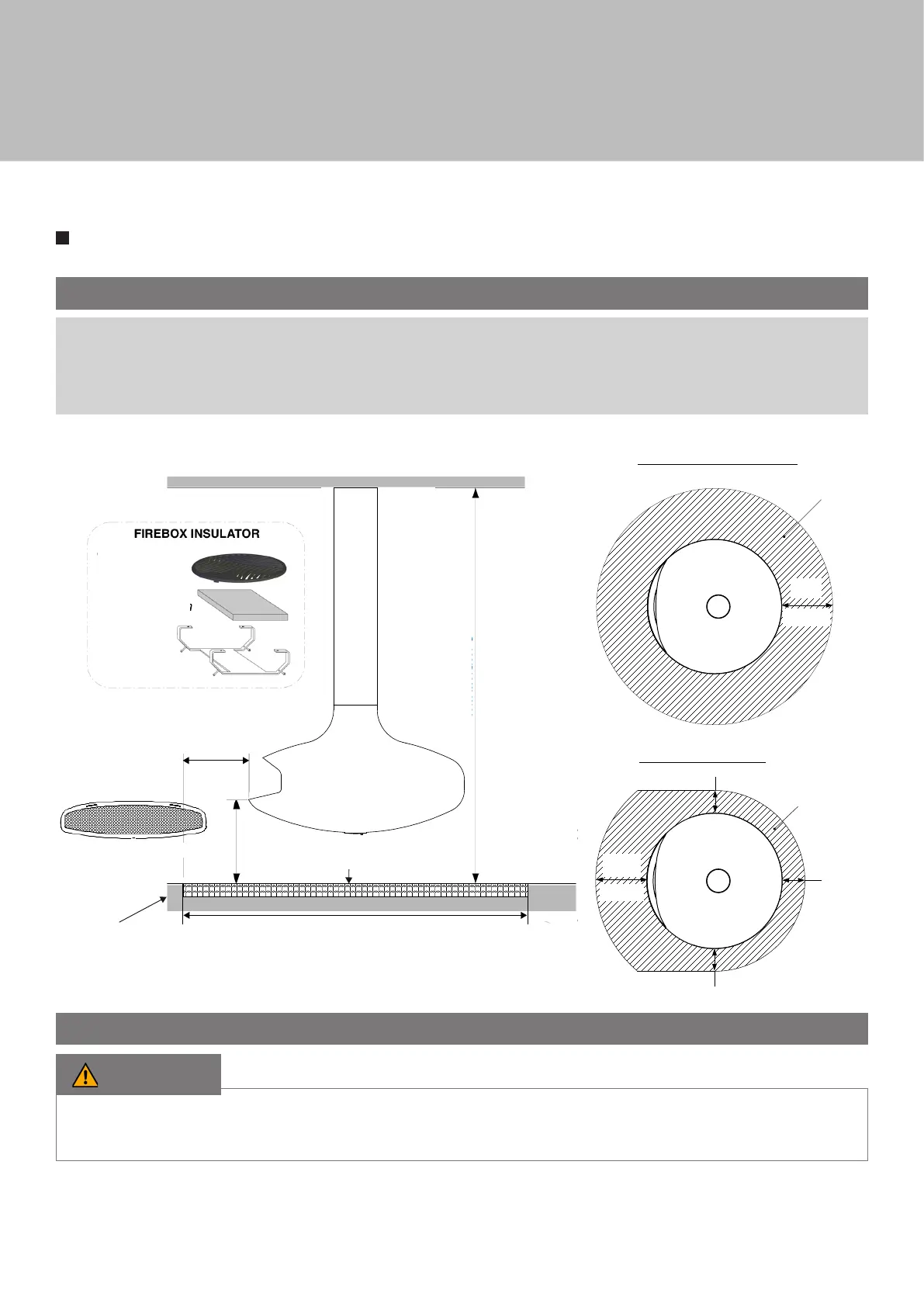

A. FLOOR PROTECTION
Rotating version require 16 inches (400 mm) (US) or 18 inches (450 mm) (Canada) of floor protection on all sides (360°).
Fixed version require 16 inches (400 mm) (US) or 18 inches (450 mm) (Canada) on the front and to extend 8 inches on the left and
right sides as well as for the back side.
Use of provided firebox insulator under the grate (vermiculite) is compulsory.
non-combustibe surface
surface non combustible
IMPORTANT : PAS DE CHAUFFAGE AU SOL !
2750 mm
500 mm
pare étincelle
combustible sub floor
sous plancher combustible
400 mm / 16’’ (US)
minimum 9’
fire screen
20’’
450 mm / 18’’ (Canada)
R value
PIVOTANT
VERSION
400 mm
16’’(US)
18’’(Canada)
450 mm
FIXED
VERSION
8''
8''
8''
45 cm
200 mm
200 mm
200 mm
16'' (US)
18''(Canada)
400 mm
450 mm
IMPORTANT: NO RADIANT FLOOR HEATING
TUBING UNDER THE FIREPLACE
ROTATING VERSION
FIXED VERSION
non-combustible
surface
non-combustible
surface
Cast iron grate 
Ø550mm
+ Vermiculite

330x300x30mm
+ Spacer
B. CLEARANCES TO WALLS
CAUTION
THE DISTANCE TO A COMBUSTIBLE WALL MUST BE MAINTAINED AT 38 INCHES (760 MM). PROPERTY DAMAGE OR DEATH
CAN OCCUR IF THIS DISTANCE IS NOT MAINTAINED. DRYWALL PRODUCTS LINED WITH PAPER SUCH AS SHEETROCK ARE
COMBUSTIBLE. CLEARANCES AS INDICATED FURTHER APPLY.
