9
Installation

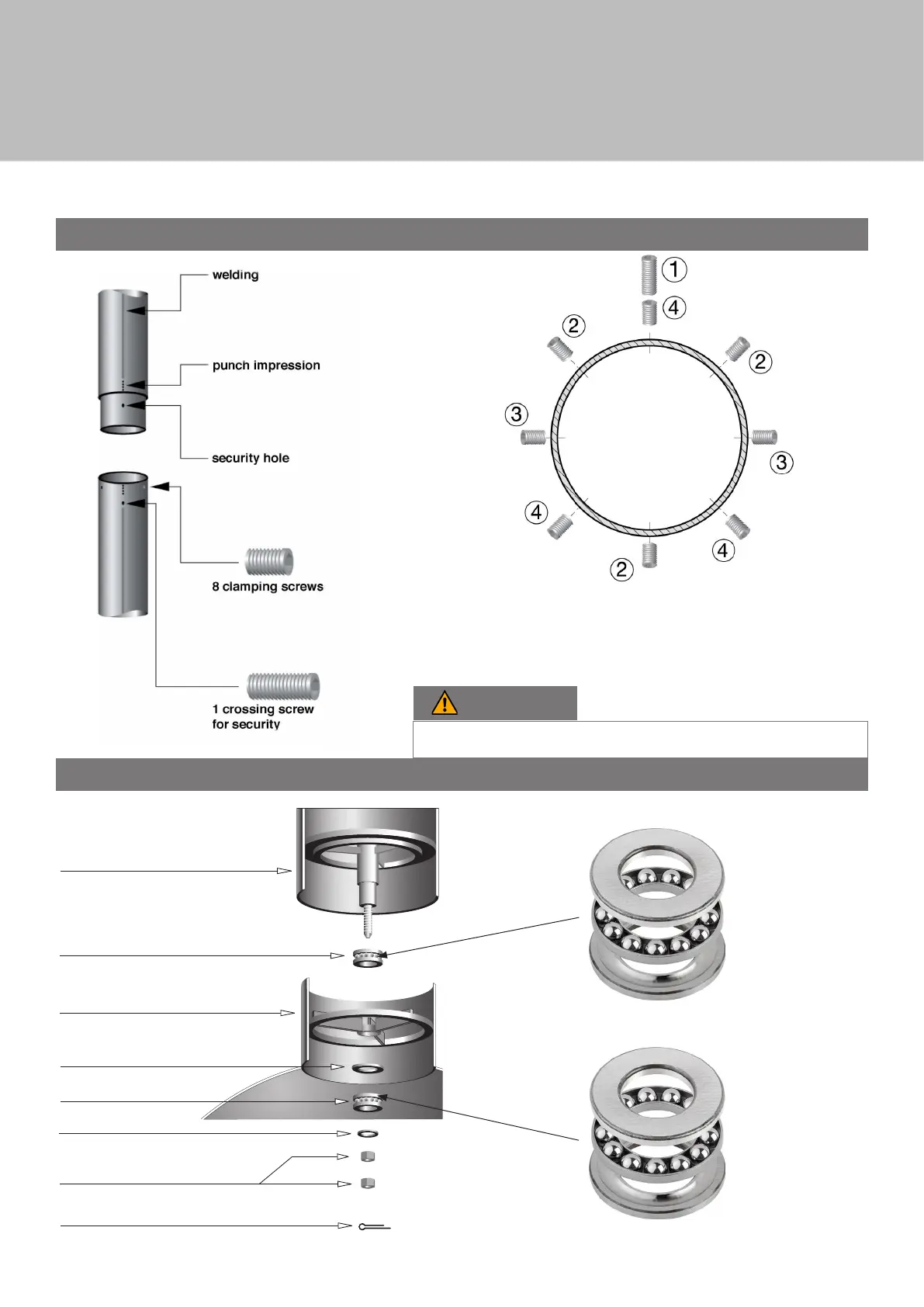

D. JUNCTION SLEEVE DETAIL
NOTE : The junction sleeves are provided only when the floor to ceiling
height in the room requires several focus pipe in several parts.
(you may not find a junction sleeve on 9 feet (2700 mm) or less
ceiling height)
E. ROTATING MECHANISM DETAIL
Low part of the steel flue
Smoke outlet sleeve
washers Ø13/16’’ - 25/16’’
Thickness 1/6’’ Ø20-40 mm ép. 3mm
Nut M12
Ball bearings Ø 13/16’’ - 25/16’’
Thickness 1/6’’ Ø20-40 mm ép. 3 mm
Cotler pin
Washers Ø 1/2’’ - 17/18’’
Thickness 1/8’’ Ø13-24 mm ép. 3mm
Ball bearings
CAUTION
SCREWS DO NOT SIT FLUSH WHEN INSTALLED.
