Specifications
STRUCTURAL REQUIREMENT
CAUTION
THE SUPPORT OF THE ANCHOR PLATE (ROOF STRUCTURE, SLAB, ETC.) MUST BE SIZED IN CONGRUENCE WITH THE
FIREPLACE STATIC AND DYNAMIC CHARGES. THE SIZE CALCULATION FOR THE SUPPORT IS NOT THE RESPONSIBILITY
OF FOCUS OR ITS AFFILIATES. IT IS YOUR RESPONSIBILITY TO CONSULT WITH AN ENGINEER OR ARCHITECT FOR YOUR
PROJECT.
CONNECTOR
Connectors are all non-insulated chimney parts including focus flue, focus 8’’ (200 mm) universal adapter and the chimney manufacturer
finishing collar with adapter.
To avoid heat traps the chimney connector shall not pass through an attic or roof space, closet or similar concealed space, or a floor, or
ceiling.
Passage through an attic, roof frame floor, or ceiling must be done using an insulated chimney respecting all chimney manufacturer
clearances.
CAUTION
PASSAGE THROUGH A WALL OR PARTITION OF COMBUSTIBLE CONSTRUCTION IS NOT AN APPROPRIATE INSTALLATION
FOR THIS FOCUS FIREPLACE.

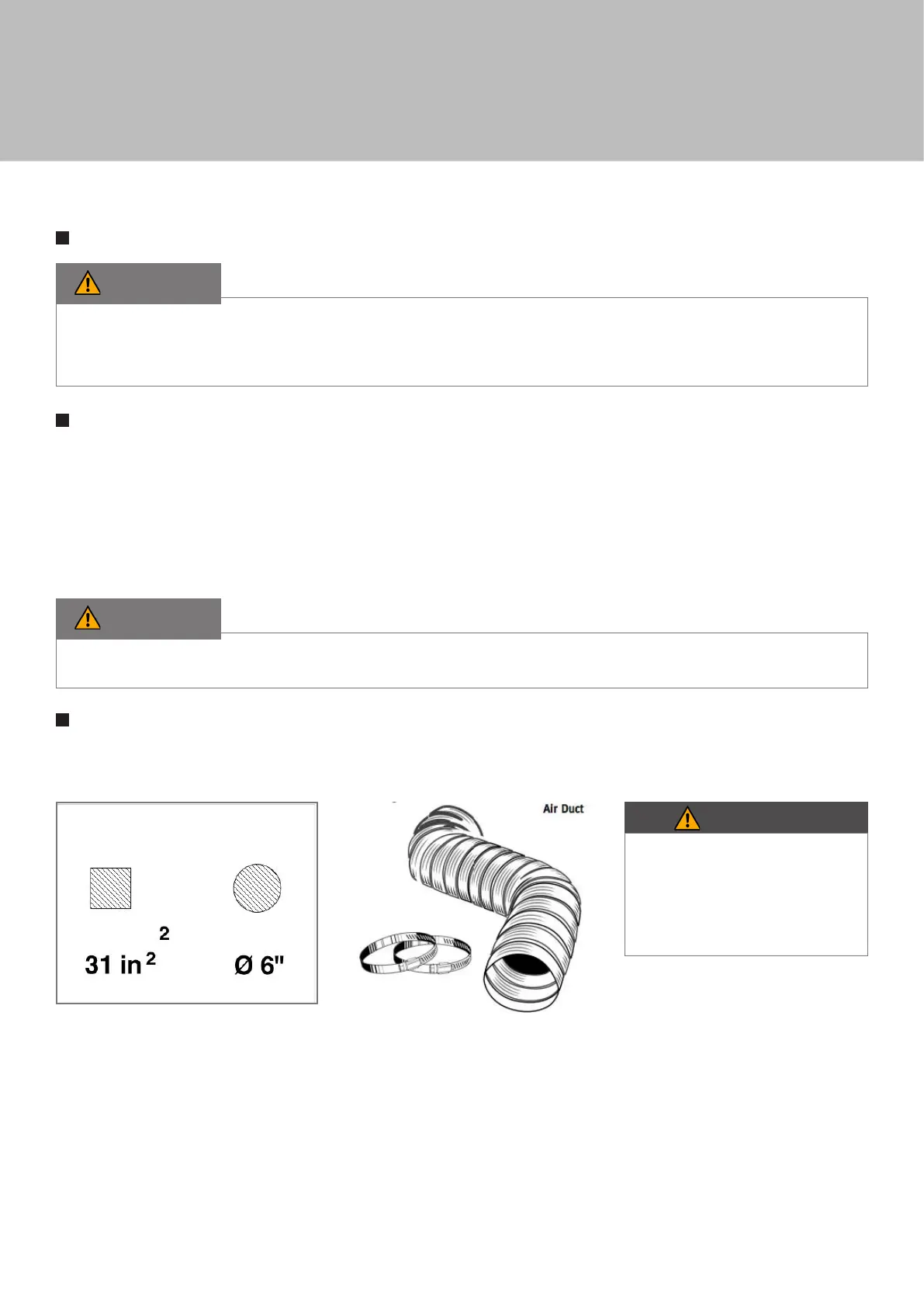

FRESH AIR INTAKE
For optimal performance, Focus recommends a fresh air intake in the room, ideally positioned below the fire. We suggest using Deflect-O
A0684 semi-rigid aluminum duct. The minimum size for the fresh air intake is:
Fresh air intake
2000 mm Ø160 mm
OR
This fresh air intake is compulsory
when operating venting appliances
such as kitchen hoods, permanent air
extractors or any appliances creating
an air depression in the habitation.
