Focusrite ISA 828 - Advanced Recording Techniques; Recording with Inserts; AES Output to Pro Tools Connection

x8
Digital Storage Medium
Pro Tools HD™ 192 Interface
AES/EBU 25-pin Inputs
(requires 2 cards)
Cable pinout according
to Appendix 1
Word Clock Output (1x or 256x)
ISA 828 Digital Card in 2-wire mode
(Jumpers in default ‘enabled’ position)
15

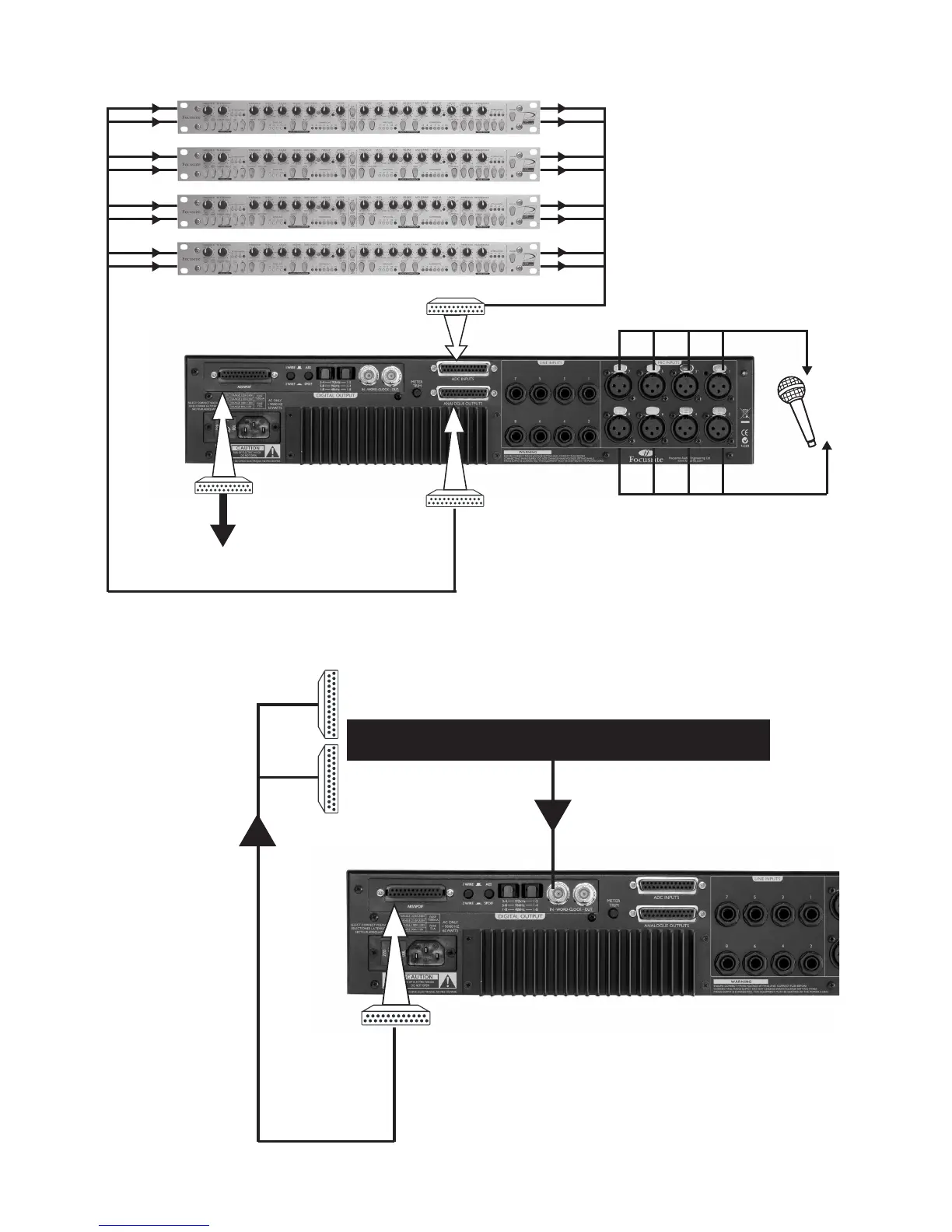

Recording with Inserts
Recording from AES Outputs 1-8 to Pro Tools HD
™ at 192kHz
Focusrite Compounders (Stereo Compression) x 4
ISA 828 has all eight Insert switches engaged
Analogue I/Ps Analogue O/Ps
