Focusrite iTrack Solo Getting Started Guide

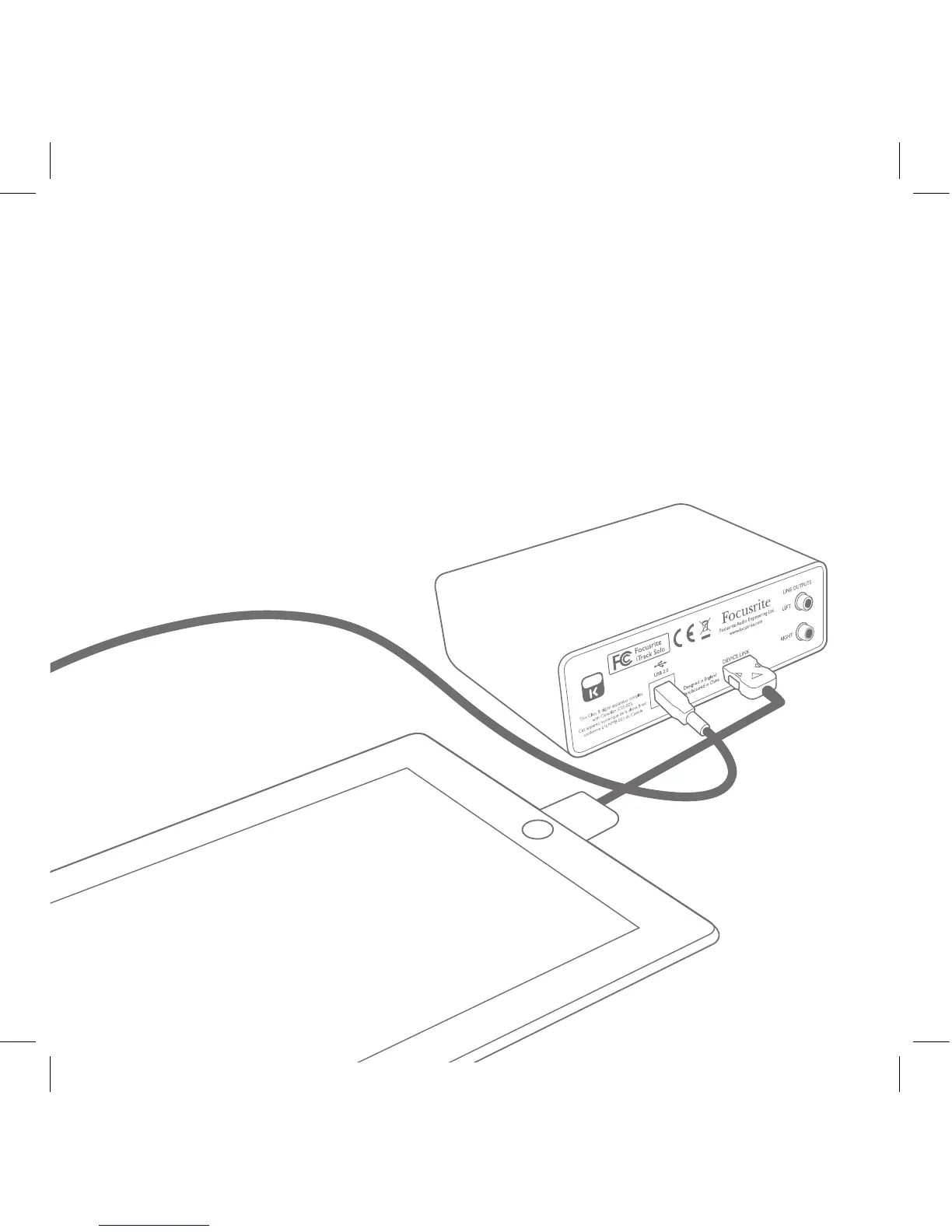

2) Connect the iTrack Solo to your iPad using the included cable
Note: When connecting the DEVICE LINK cable to the DEVICE LINK port on the
iTrack Solo please push the connector firmly into the iTrack Solo until
you hear a “click”. To disconnect, please firmly press the sides of the
connector and pull.

Focusrite iTrack Solo Specifications

General

Sample rate	98 kHz
Audio quality	24 bit
Frequency range	20 - 20000 Hz
Microphone maximum input	1
Microphone Total Harmonic Distortion (THD)	0.002 %
XLR in	Yes
I/O ports	2x XLR In, 6.35mm In, USB2.0 B, TRS Out, 2x RCA Out
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Compatible operating systems	- Windows 7 / 8\\r - Mac OS X 10.7 / 10.8

Weight and Dimensions

Weight	500 g
Dimensions (WxDxH)	150 x 100 x 45 mm
