Foley 653 ACCU-Master - Select Spin Drive Position

45
OPERATION
INFEED the GRINDING HEAD

GRINDING WHEEL.
Reset the TRAVERSE TRAVEL LIMITS so the
GRINDING WHEEL

GRINDING HEAD  TRAVEL LIMIT



CHOOSE SPIN MOTOR LOCATION
EDGE OF BLADE
INDEX FINGER
FIXED FINGER
WHEEL
TRAVEL LIMITS

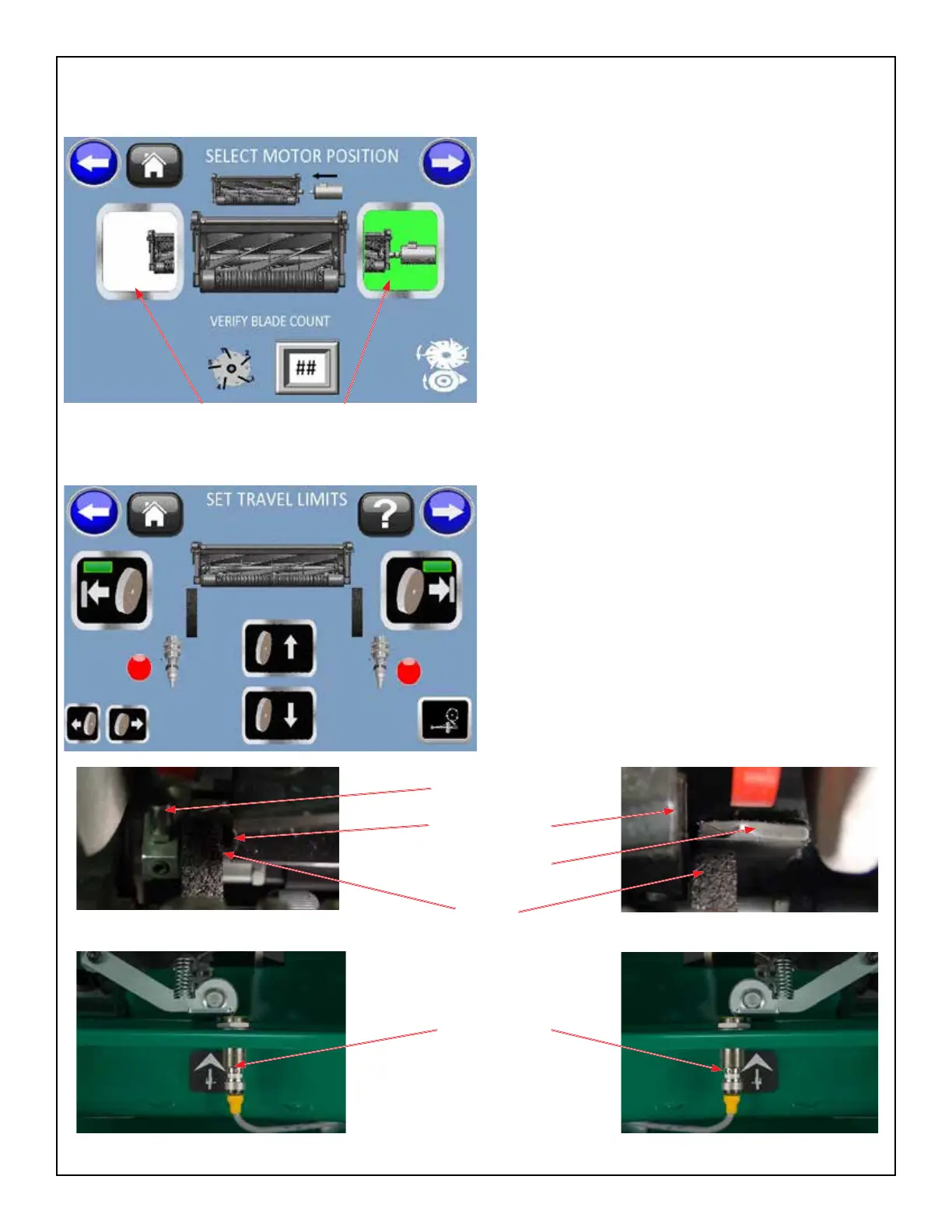

SELECT SPIN DRIVE POSITION
SET TRAVEL LIMITS
FIG. 71
FIG. 72
FIG. 73 FIG. 74
