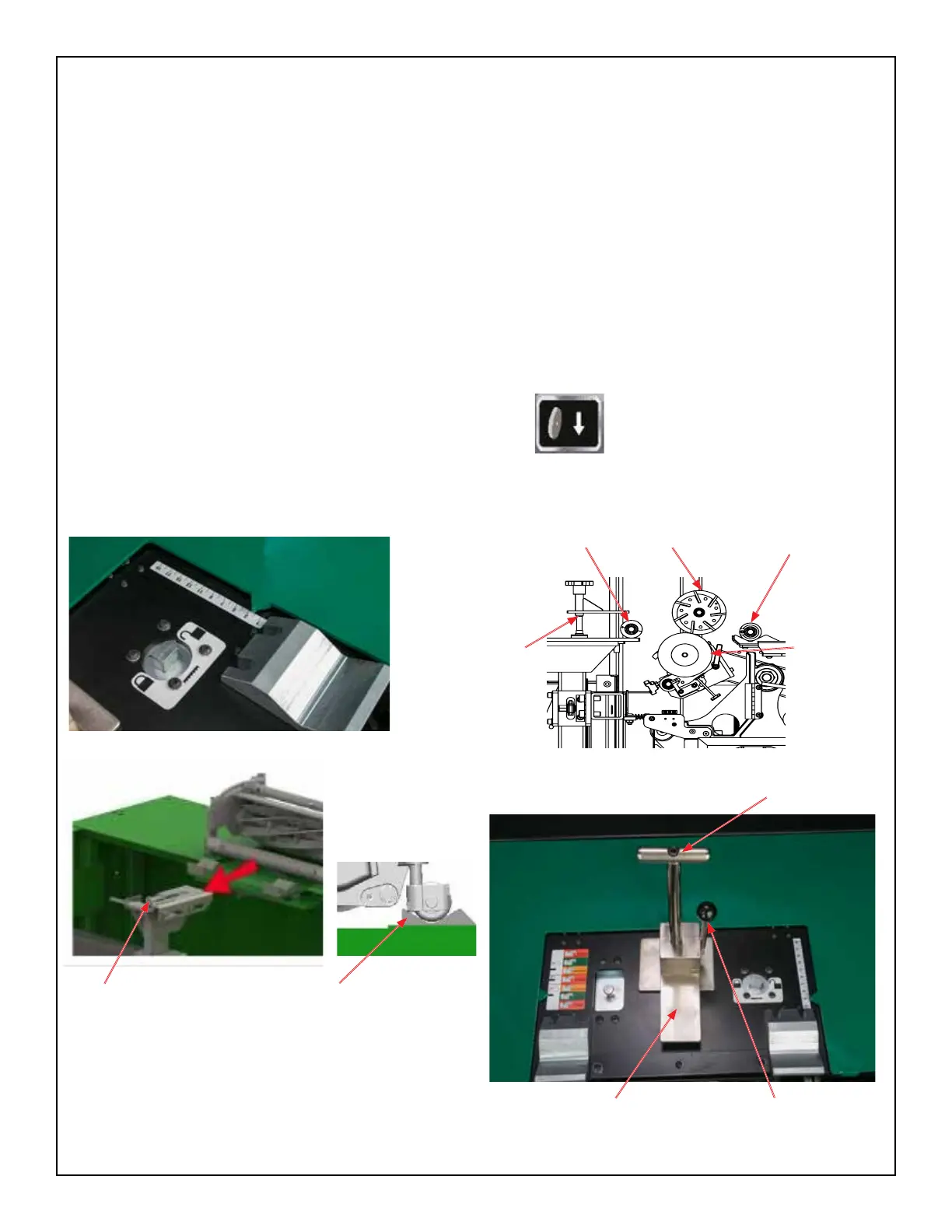

GRINDING OTHER REELS
PLACE A CUTTING UNIT NOT LISTED ON THE ACCU-REEL POSITIONER

to use the 
INSTALL CUTTING UNIT
PINUP




GRINDING WHEEL




NOTE: To adjust the RELIEF ANGLE ADJUSTER turn the knob clockwise for more clearance or counter
clockwise for less clearance unl you have reached the desired angle See page 44 for details.

EEL POSITIONER
FRONT HEIGHT ADJUSTER

FIG. 85
FIG. 86
FIG. 83
FRONT TOOLING
REAR ROLLER CLAMP


FIG. 84
REELFRONT ROLLER
CLAMP
REAR ROLLER
GRINDING
WHEEL
