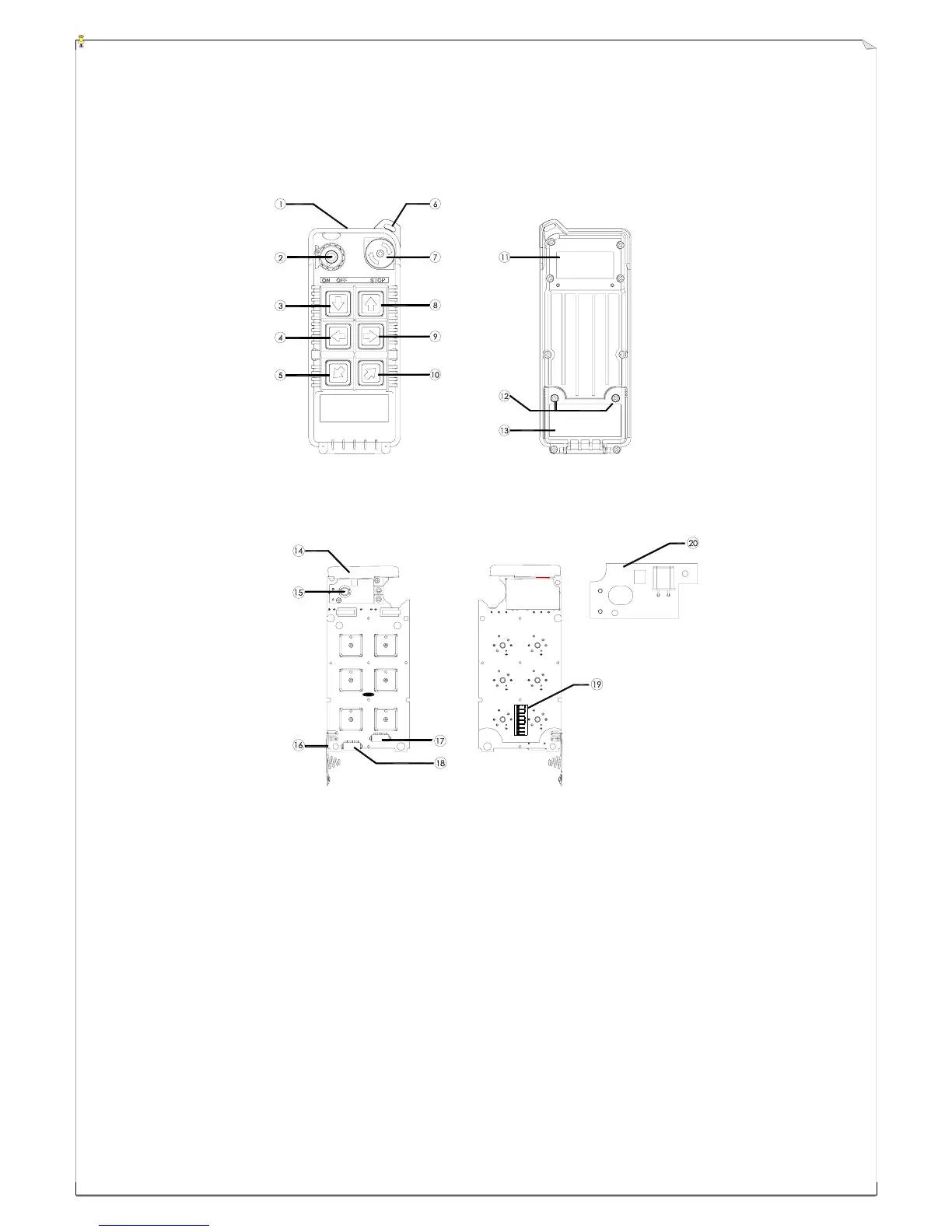

(Fig. 5) Front View (Fig. 6) Back View
(Fig.7) Front View (Fig. 8) Back View
1) Transmitter enclosure 8) Pushbutton #1 (↑ / Up) 15) Status LED display
2) Power switch (ON/OFF) 9) Pushbutton #3 (→ / East) 16) Battery contact
3) Pushbutton #2 (↓ / Down) 10) Pushbutton #5 (↗ / North) 17) AUX micro-button connector*
4) Pushbutton #4 (← / West) 11) System information 18) Programming port
5) Pushbutton #6 (↙ / South) 12) Battery cover screws 19) ID code dip-switch
6) Wrist strap attachment 13) Battery cover 20) Transmitting RF board
7) Emergency stop (EMS) 14) Internal antenna
* For Alpha 540A and Alpha 560A models only.
