9

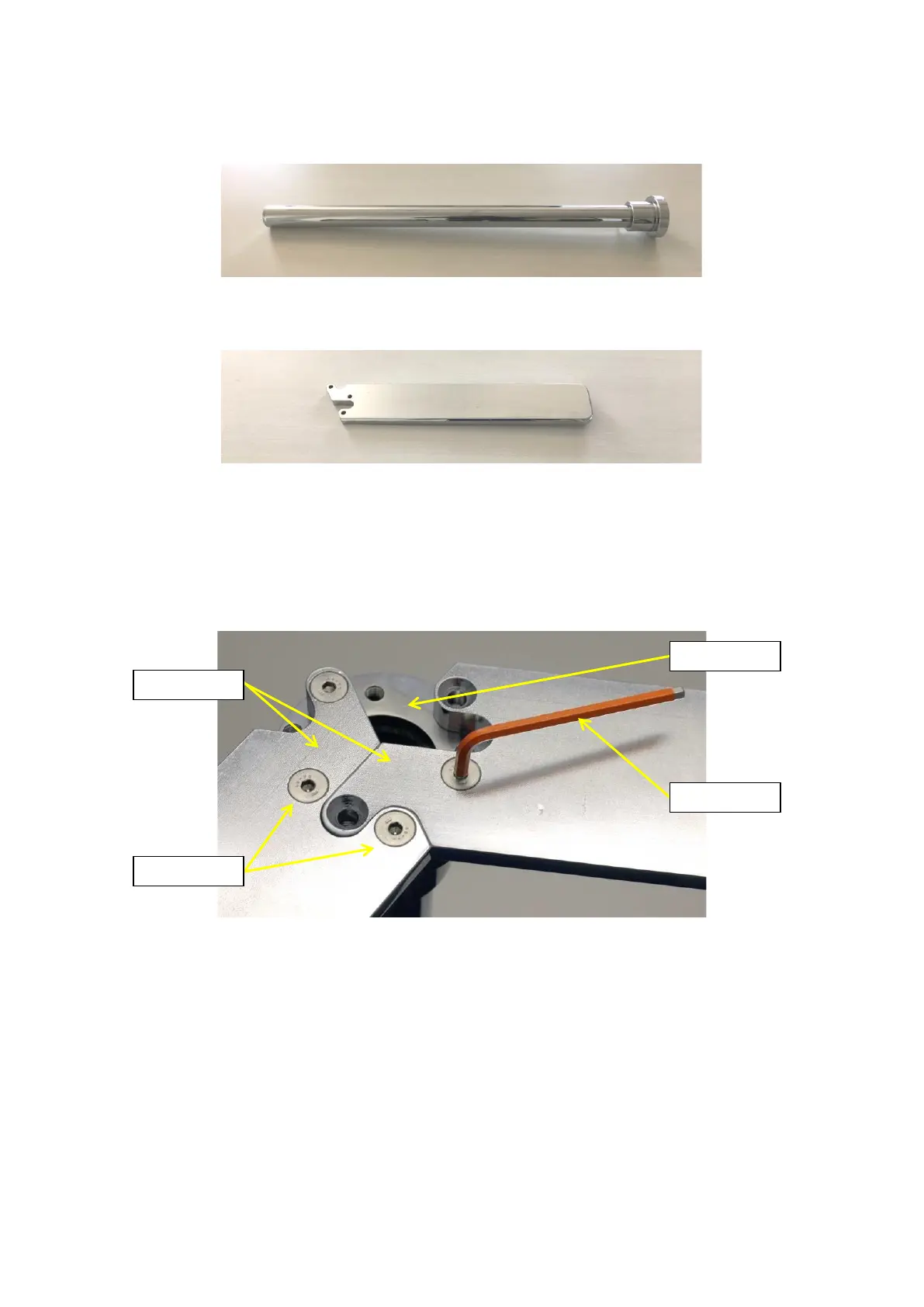

The lambda.7 support stand is composed of three legs and one mast which are illustrated in fig-
ures 3 and 4. These parts can be found in the two cardboard boxes that come with the unit.
Figure 3 –stand pole (1x)
Figure 4 – stand leg (3x)
The three legs are mounted to the pole by securely fastening the nine stand screws (three screws
per leg) using the orange hex key, as shown in figure 5. The screws and orange hex key can be
found in the plastic case that contains the haptic device controller.
Figure 5 – Mounting the device stand legs onto the pole.
