Force FS Series User Manual

Item Qty Description
1 1 Control Panel Cover
2 1 Opener Middle Cover
3 1 LED light Cover
4 1 PCB (1)
5 1 PCB (2)
6 1 DC Gear Motor
7 1 Motor Shaft Sleeve
8 1 Transformer
9 1 Transformer Plate
10 1 Steel Bottom Base
11 1 Reference Switch
12 1 Sprocket Support
Item Qty Description
13 1 Switch Cover
14 1 C Rail - Steel
15 2 U Hanging Bracket
16 1 Easy Click Bracket
17 2 Mounting Bracket
18 1 Chain or Belt
19 1 Idler Pulley
20 1 Wheel Bracket
21 1 Track Ending Bracket
22 1 Wall Bracket
23 1 Door Bracket
24 1 Bent Arm
Item Qty Description
25 1 Straight Arm
26 1
27 1
Trolley Assy - Bottom
28 1
Trolley Assy - Top
29 1
Trolley Arm
30 1
Release Cord
31 1
Caution Card
32 2
Release Handle
33 1
Remote Control
34 1
Remote Control Holder
Wire Connection
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
15
13
12
10
7
6
5
3

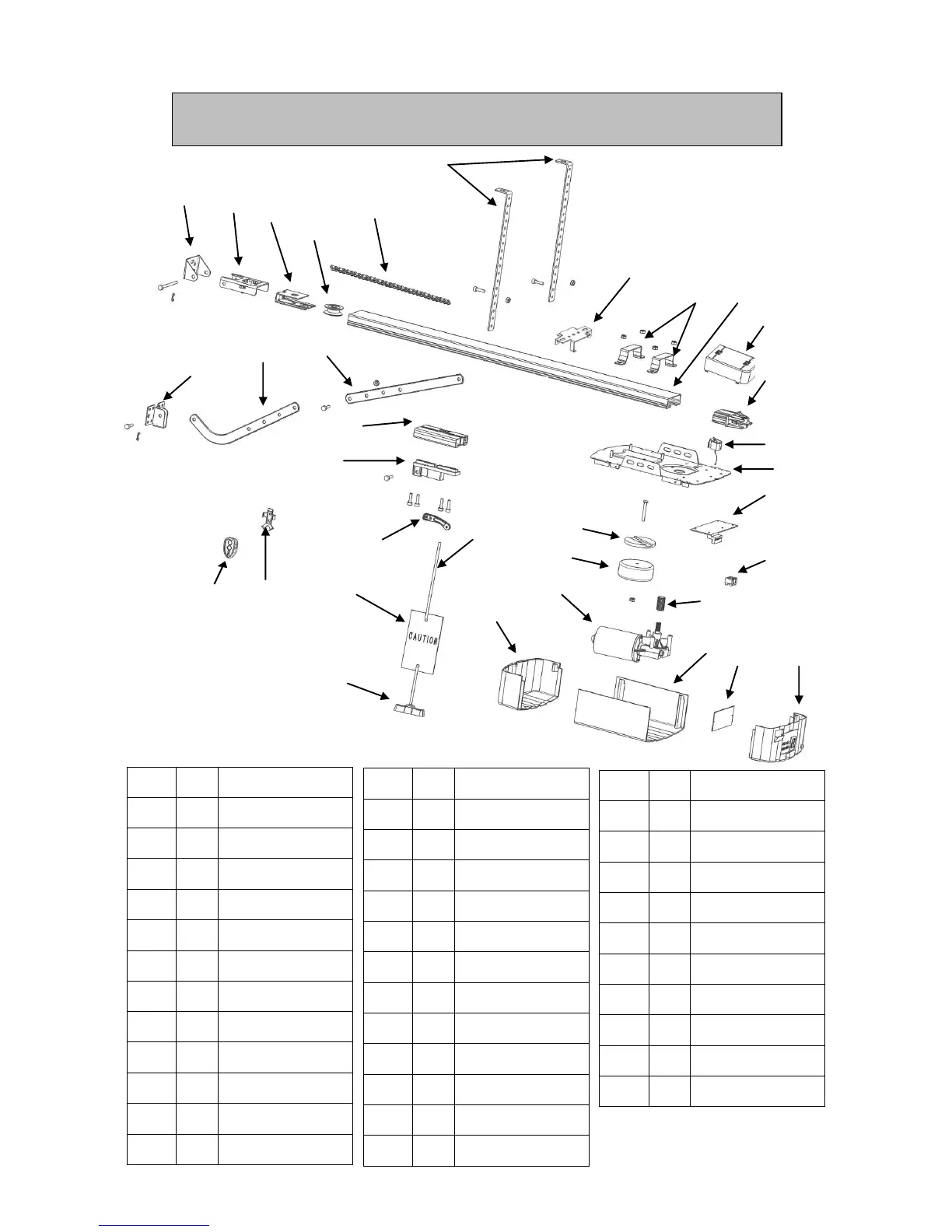

PARTS LISTING
1
2
4
8
16
9
11
14
45

Force FS Series Specifications

General

Drive System	Chain Drive
Horsepower	1/2 HP
Frequency	60 Hz
Speed	7 inches per second
Battery Backup	No
Voltage	120V
Remote Controls Included	2
