Force FS Series User Manual

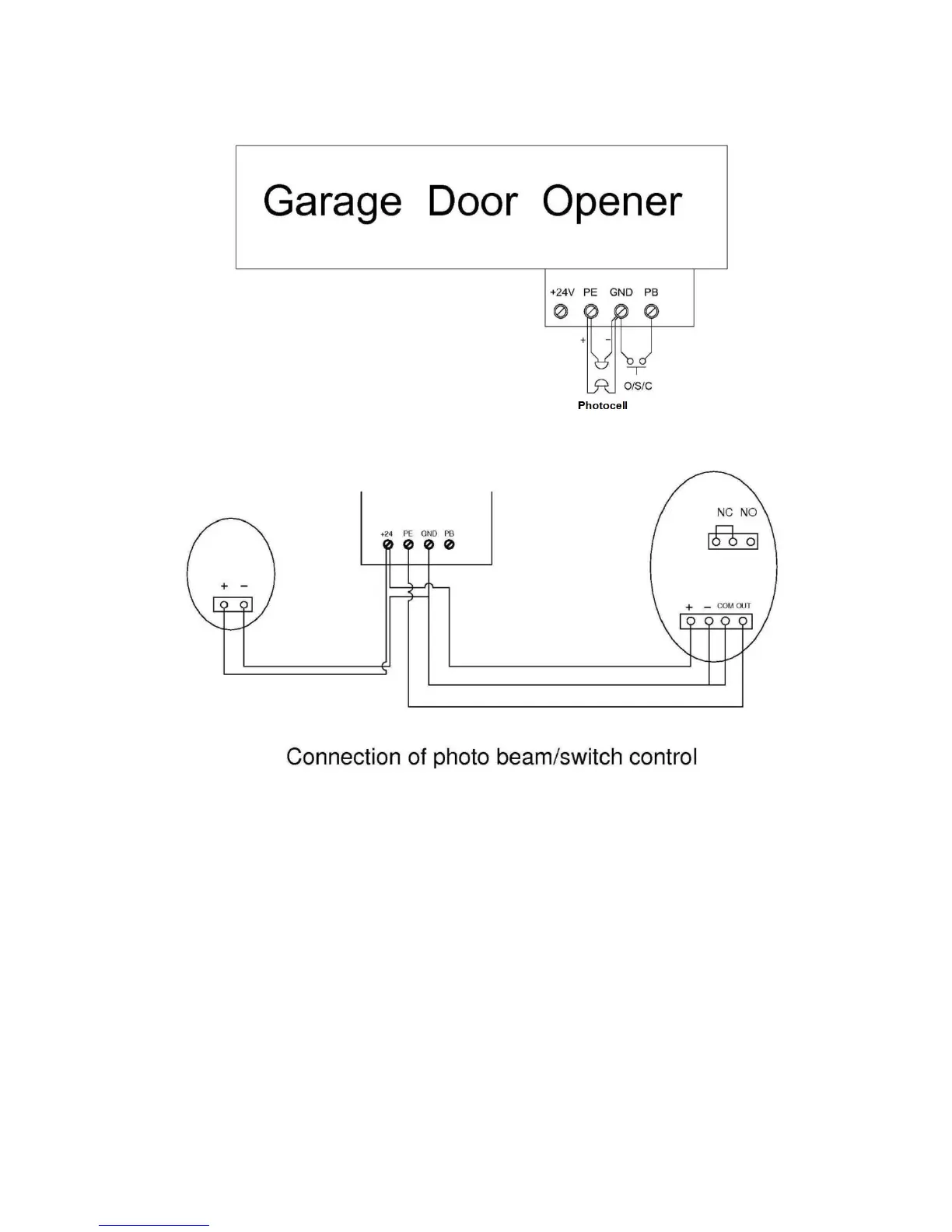

Photocell connection (optional) – Figure 13, Figure 14
Switch control connection (optional) – Figure 13
Figure 13
Figure 14
Other terminal introduction and application
1. The O/S/C interfaces available. (Figure 16)
Add a new O/S/C button to open or close the door (e.g. interior push-buttons).
2. Flashing light function. (Figures 15 and 16)
There are corresponding interfaces for this function and provide 24v-35v flashing light voltage. Connect the
flashing light with DC 24v-28v, current≤100mA. When using AC 220V power flashing lights, please fit an
adapter and wiring as required.
3. Pass door (SD) protection (Figure16)
This function ensures that the door can’t be opened unless the small pass door is closed. The door panel
won’t be damaged.
