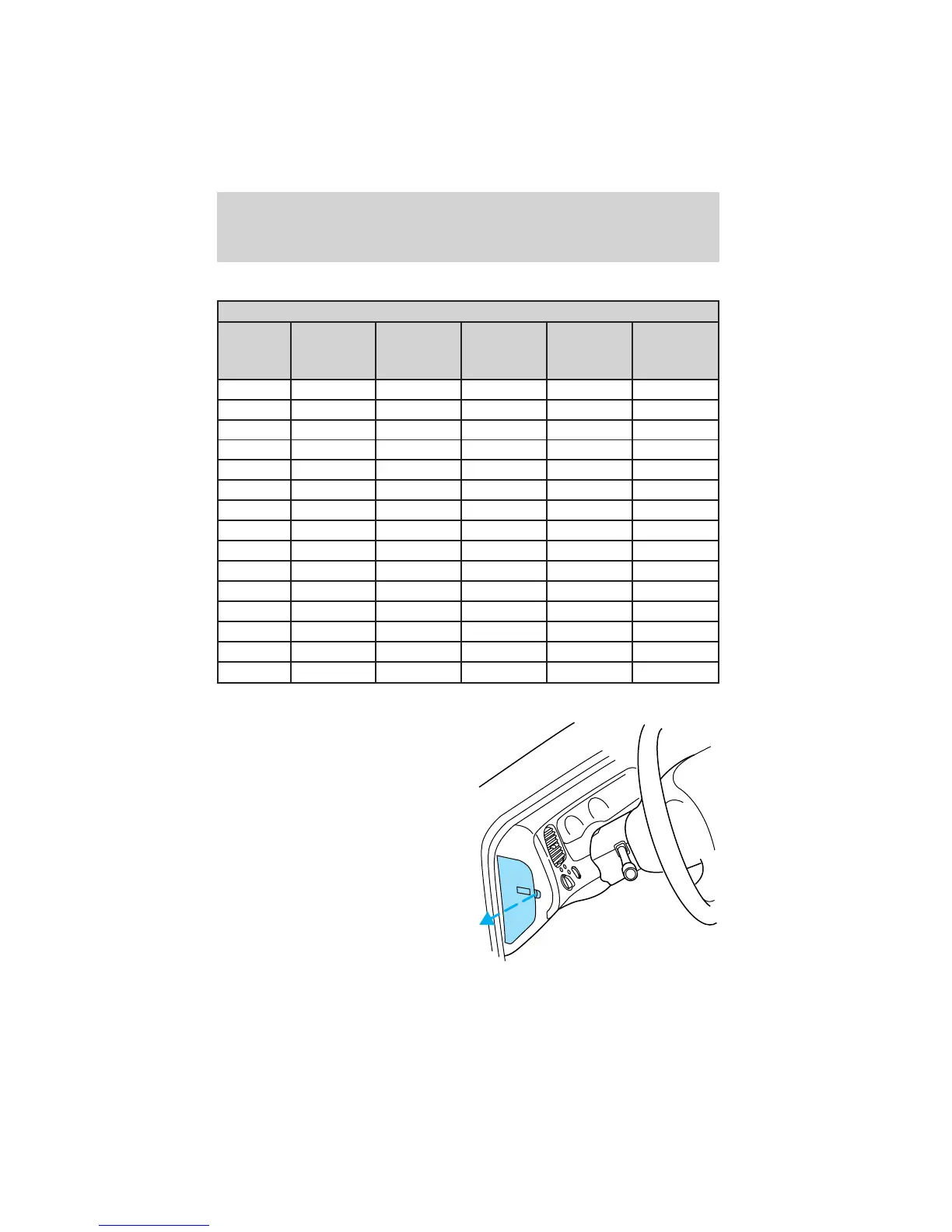

Standard fuse amperage rating and color
COLOR
Fuse
rating
Mini
fuses
Standard
fuses
Maxi
fuses
Cartridge
maxi
fuses
Fuse link
cartridge
2A Grey Grey ———
3A Violet Violet ———
4A Pink Pink ———
5A Tan Tan ———
7.5A Brown Brown ———
10A Red Red ———
15A Blue Blue ———
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural ———
30A Green Green Green Pink Pink
40A ——Orange Green Green
50A ——Red Red Red
60A ——Blue Yellow
70A ——Tan Brown
80A ——Natural Black
Passenger compartment fuse panel
The fuse panel is located on the
left-hand side of the instrument
panel facing the drivers side door.
Pull the panel cover outward to
access the fuses.
