Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
29 20A Radio
30 — Not used
31 — Not used
32 — Not used
33 15A Headlamps, DRL module,
Instrument cluster
34 — Not used
35 15A or Not Used 15A: Horn relay (if not equipped
with a truck CSM)
36 — Not used

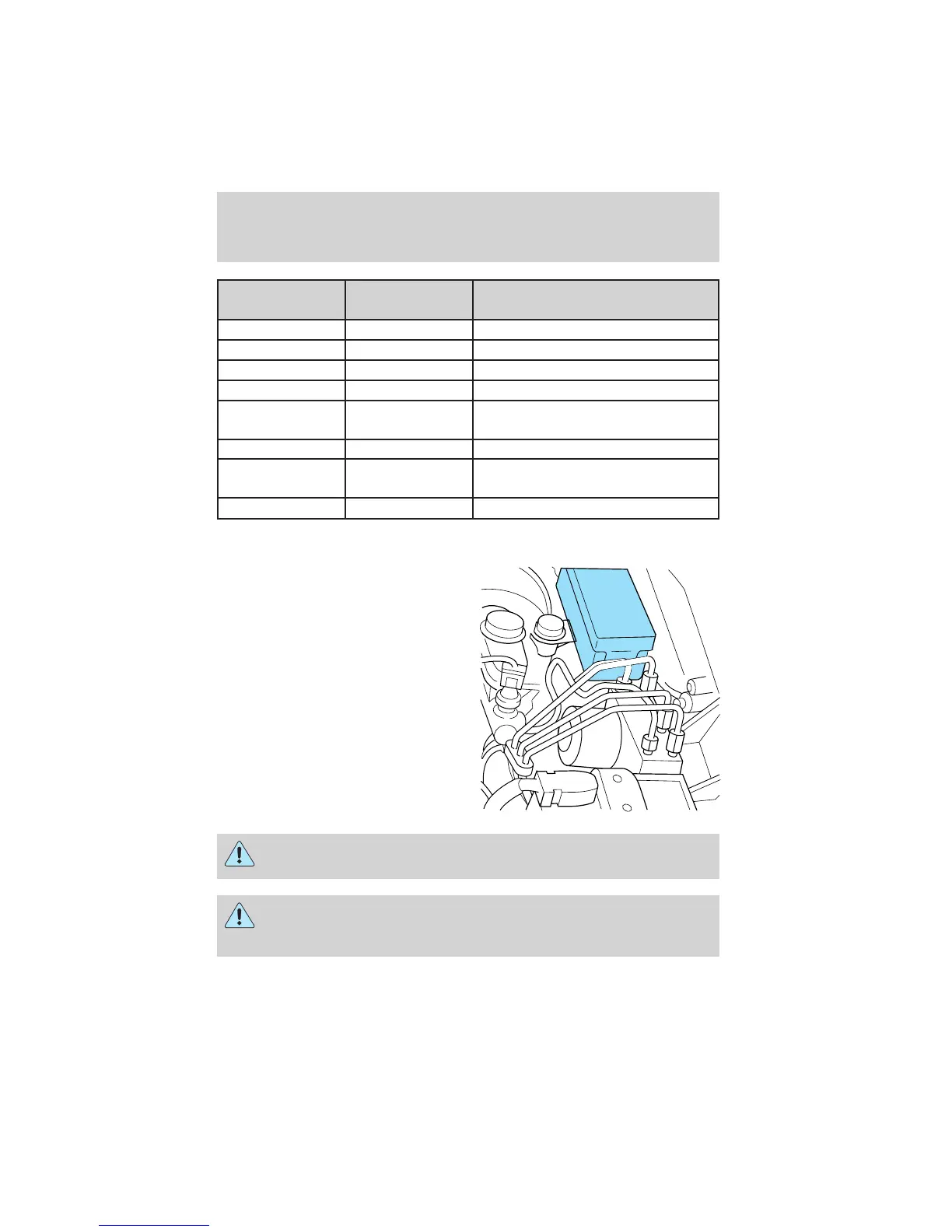

Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
Roadside Emergencies
155
