To remove a fuse use the fuse puller tool provided.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating

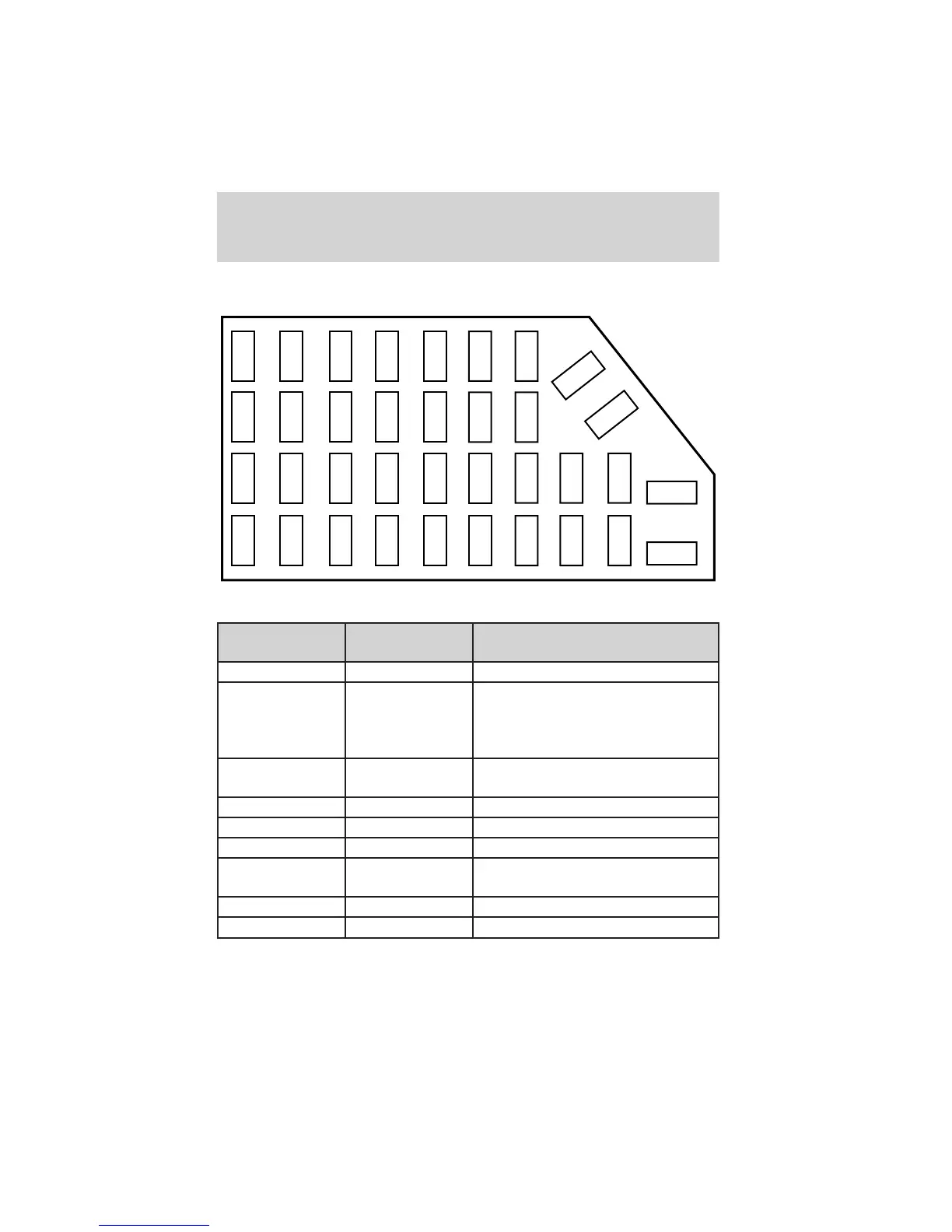

Passenger Compartment Fuse
Panel Description
1 5A Power mirror switch
2 10A Daytime Running Lights (DRL),
Back-up lamps, Transmission,
Passenger air bag deactivation
switch, Blower motor relay
3 7.5A Left stop/turn trailer tow
connector
4 — Not used
5 15A 4x4 control module
6 2A Brake pressure switch
7 7.5A Right stop/turn trailer tow
connector
8 — Not used
9 7.5A Brake pedal position switch
1234
5678
9101112
13 14 15 16
17 18 19 20
21 22 23 24
25 26
29 30
35
36
31
32
33
34
27 28
Roadside Emergencies
153
