Ford 2016 EXPLORER - Under Hood Overview - 2.3 L Ecoboost

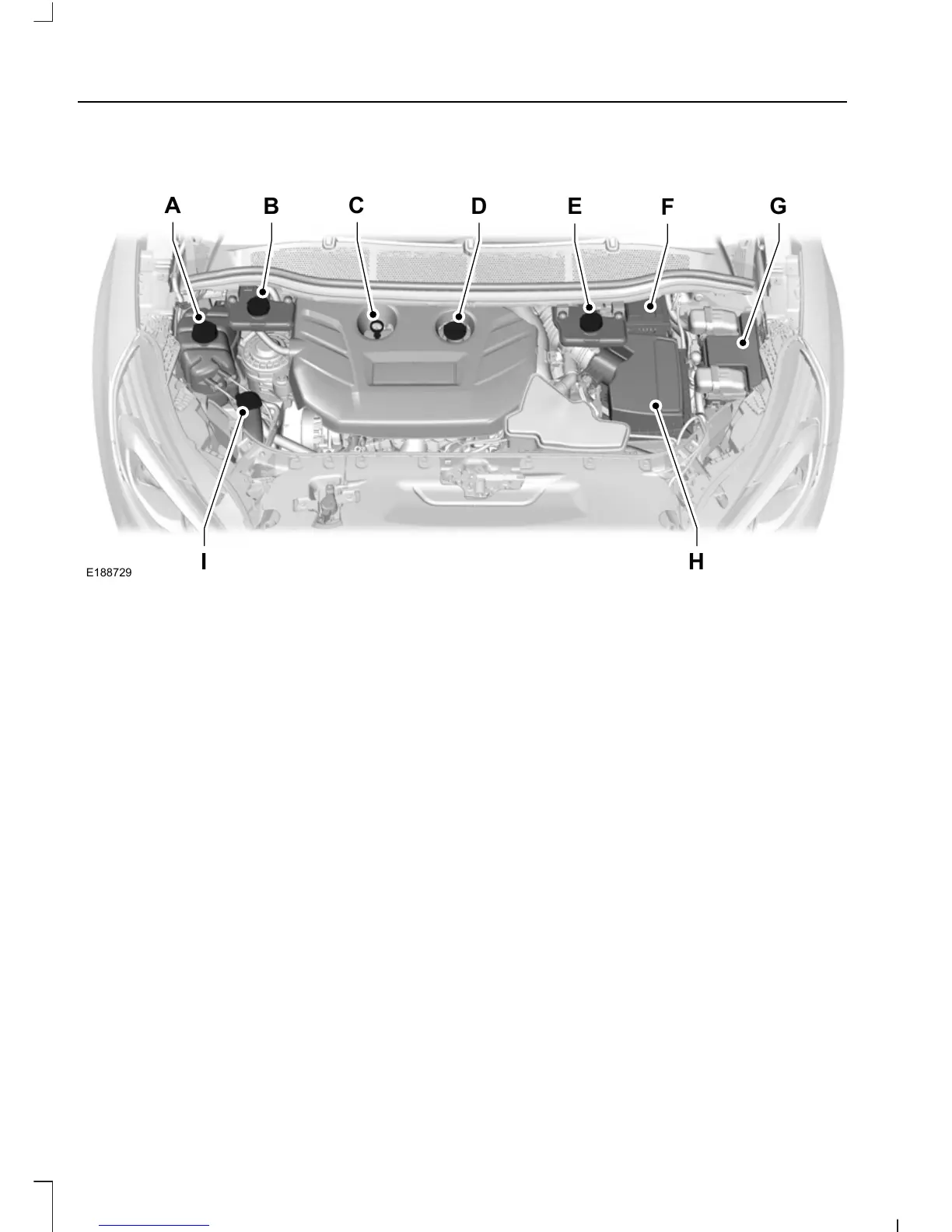

UNDER HOOD OVERVIEW - 2.3L ECOBOOST™
A
I H
EB
C
D
F
G
E188729
Engine coolant reservoir. See Engine Coolant Check (page 282).A
Brake fluid reservoir (right-hand drive). See Brake Fluid Check (page 288).B
Engine oil dipstick. See Engine Oil Dipstick (page 281).C
Engine oil filler cap. See Engine Oil Check (page 281).D
Brake fluid reservoir (left-hand drive). See Brake Fluid Check (page 288).E
Battery. See Changing the 12V Battery (page 289).F
Power distribution box. See Fuses (page 266).G
Air filter assembly. See Changing the Engine Air Filter (page 299).H
Windshield washer fluid reservoir. See Washer Fluid Check (page 288).I
278
Explorer (TUB), enUSA, First Printing
Maintenance
