Ford 2016 EXPLORER - Under Hood Overview - 3.5 L Duratec

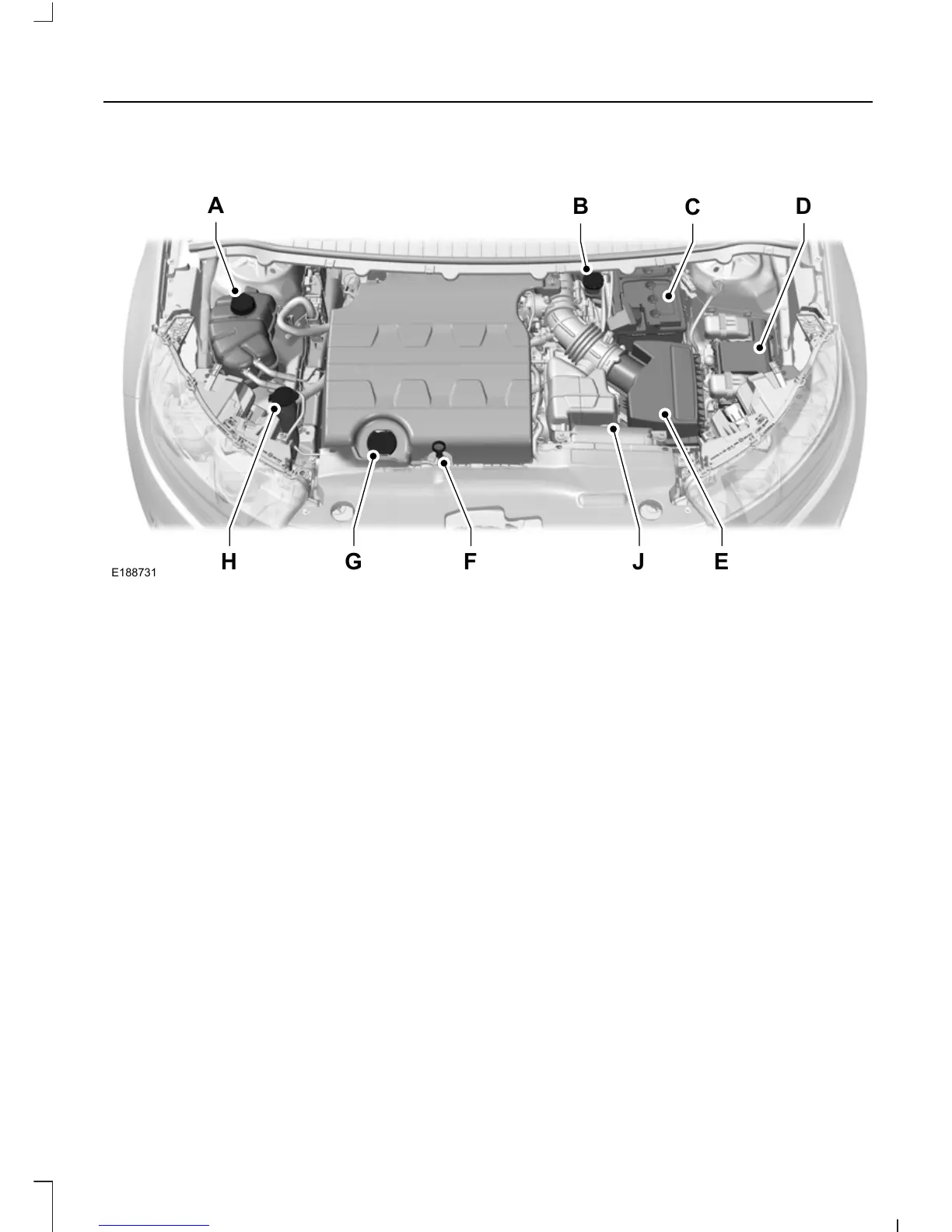

UNDER HOOD OVERVIEW - 3.5L DURATEC
H EJFG
A
B
C
D
E188731
Engine coolant reservoir. See Engine Coolant Check (page 282).A
Brake fluid reservoir. See Brake Fluid Check (page 288).B
Battery. See Changing the 12V Battery (page 289).C
Power distribution box. See Fuses (page 266).D
Air filter assembly. See Changing the Engine Air Filter (page 299).E
Engine oil dipstick. See Engine Oil Dipstick (page 281).F
Engine oil filler cap. See Engine Oil Check (page 281).G
Windshield washer fluid reservoir. See Washer Fluid Check (page 288).H
Automatic transmission fluid dipstick. See Automatic Transmission Fluid
Check (page 286).
J
279
Explorer (TUB), enUSA, First Printing
Maintenance
