Ford 2016 EXPLORER - License Plate Lamp; Led Lamps

B
E203702
5
6
A

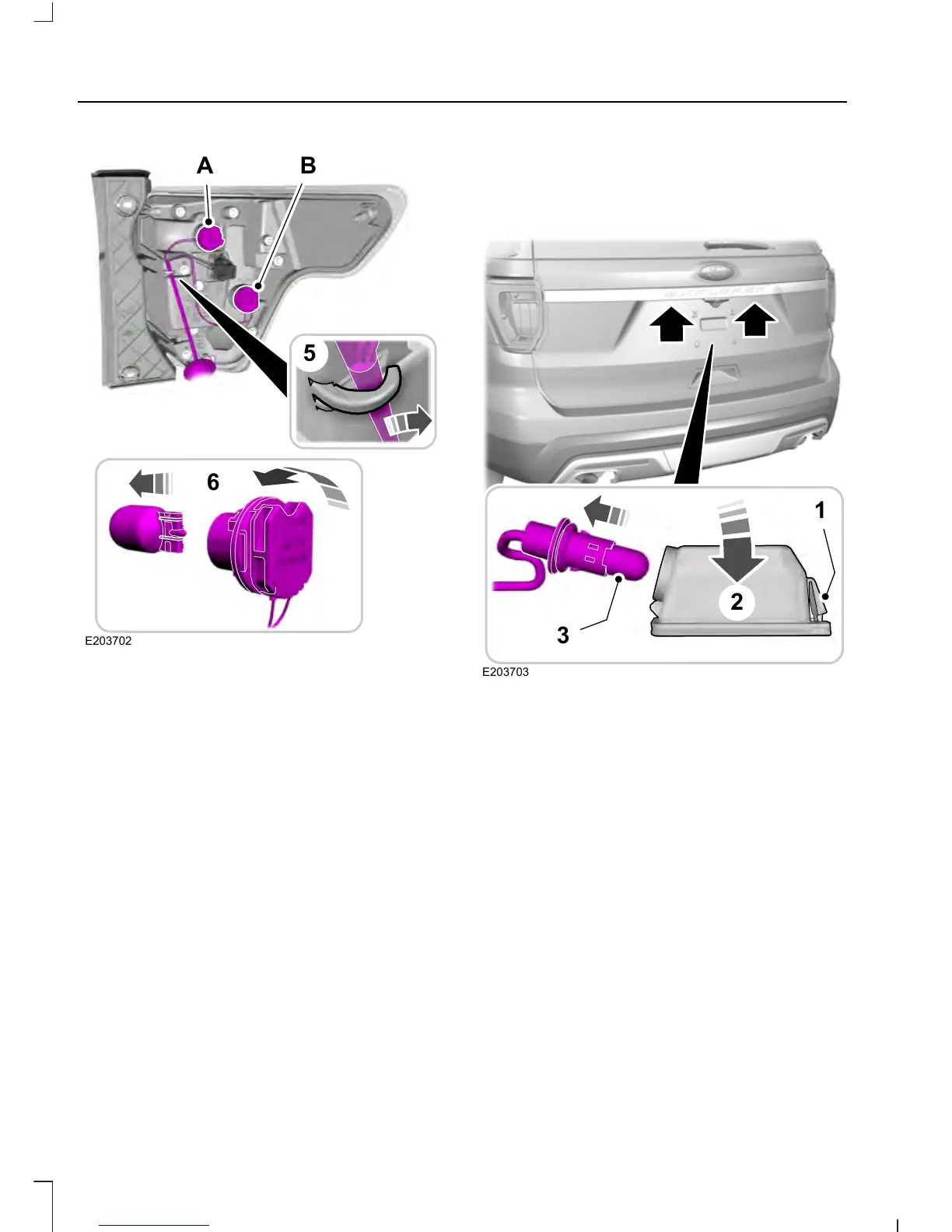

5. Release the wire from the securing clip.
6. Turn the bulb holder counterclockwise
and remove it.
7. Remove the bulb by pulling it straight
out.
LED Lamps
LED lamps are not serviceable items. See
an authorized dealer if they fail.
The following lamps are LED:
• Front side marker lamps.
• Front signature lamps.
• Daytime running lamps.
• Headlamp low beam.
• Side direction indicator.
• Rear side marker lamp.
• Brake and rear lamp.
• Central high mounted brake lamp.
License Plate Lamp
E203703
1
3
2
1. Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight
out.
296
Explorer (TUB), enUSA, First Printing
Maintenance
