4.
Disconnect
the
electrical
connector
.
5.
T
urn
the
bulb
holder
anti-clockwise
and
remove
it.

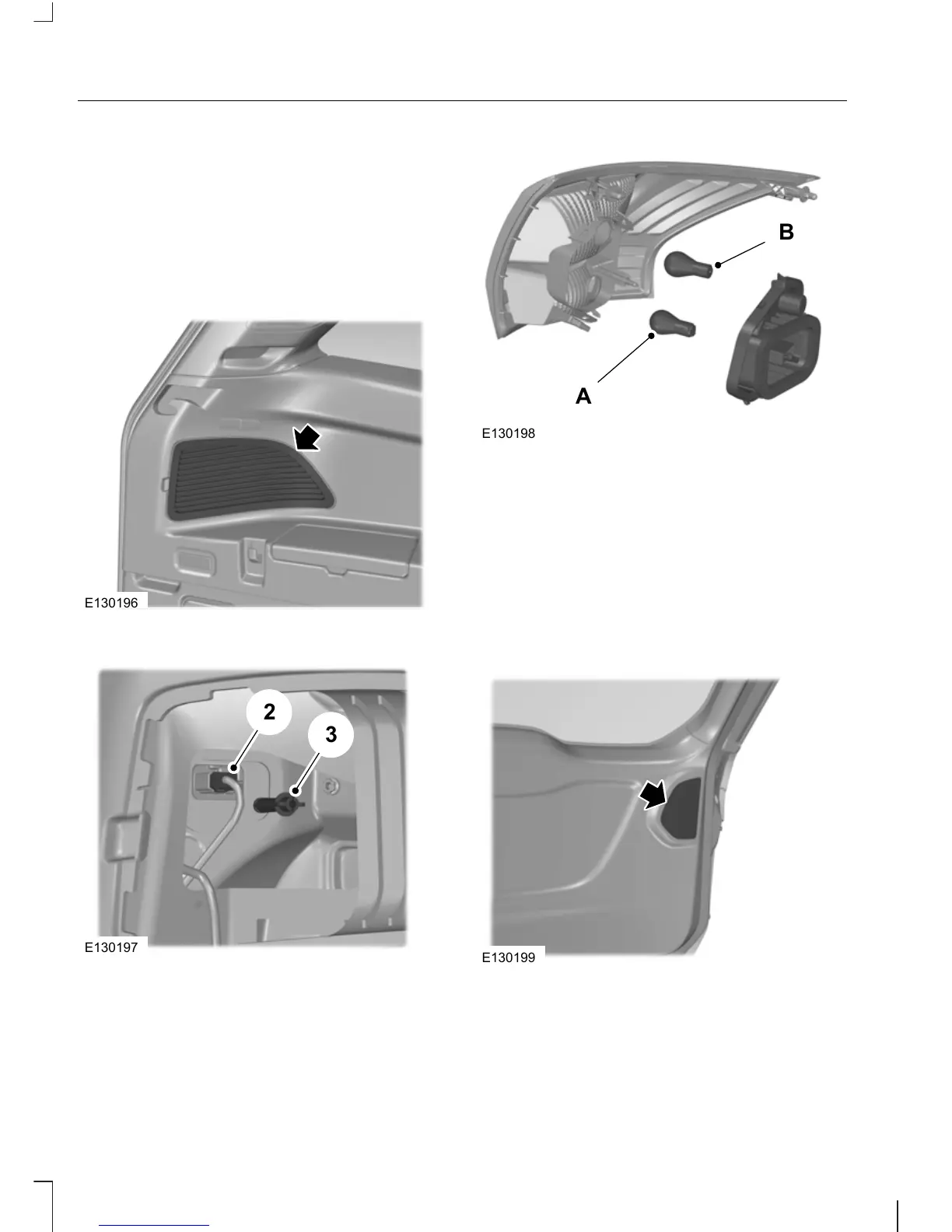

Rear
lamps
Direction
indicator
,
tail
and
brake
lamp
E130196
1.
Remove
the
trim
panel.
E130197
2
3
2.
Disconnect
the
electrical
connector
.
3.
Remove
the
wing
nut.
4.
Remove
the
lamp.
E130198
A
B
5.
Remove
the
bulb
holder
.
6.
Gently
press
the
bulb
into
the
bulb
holder
,
turn
it
anti-clockwise
and
remove
it.
A.
T
ail
and
brake
lamp
B.
Direction
indicator
Reversing
lamp,
tail
lamp
and
fog
lamp
E130199
1.
Remove
the
trim
panel.
66
Lighting
67
69
