Ford C-MAX 2010 - Page 69

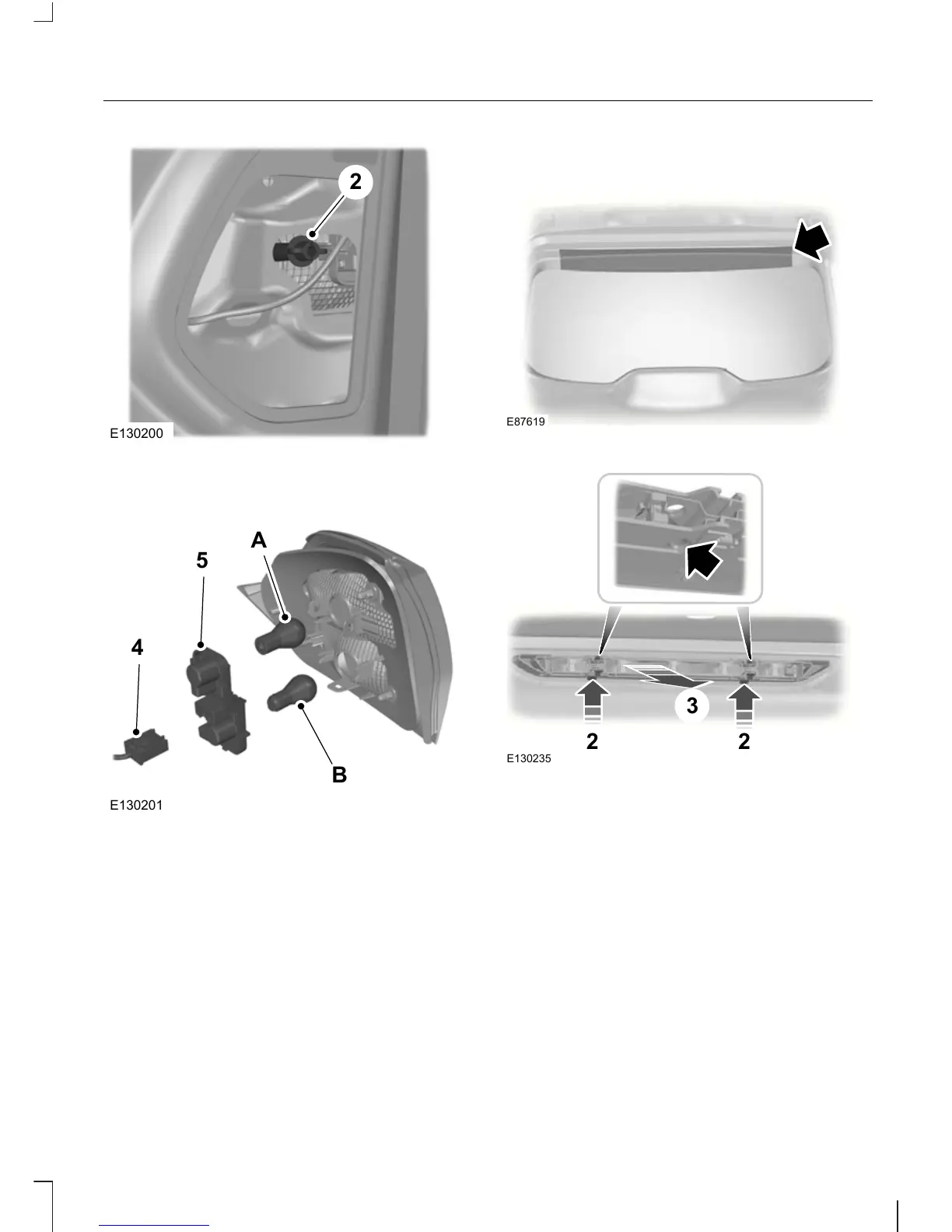

E130200
2
2. Remove the wing nut.
3. Remove the lamp.
E130201
2
4
5
A
B
4. Disconnect the electrical connector.
5. Remove the bulb holder.
6. Gently press the bulb into the bulb
holder, turn it anti-clockwise and
remove it.
A. Reversing lamp
B. Tail and fog lamp
Central high mounted brake
lamp
E87619
1. Detach the clips.
3
2 2
E130235
2. Insert a suitable object into the holes.
3. Carefully pull the lamp towards the
front of the vehicle to release the
spring clips.
67
Lighting
