Ford RANGER Owner's Handbook

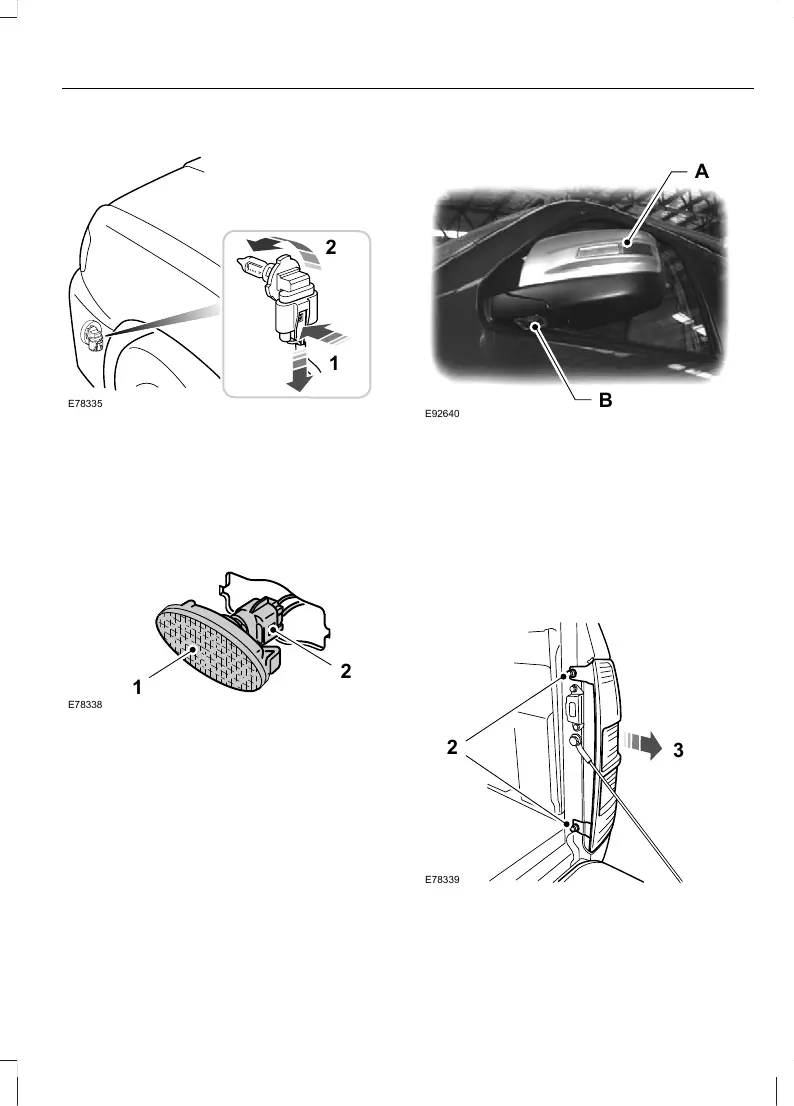

Front fog lamps
1
2
E78335
Note: You cannot separate the bulb from
the bulb holder.
1. Disconnect the electrical connector.
2. Turn the bulb holder anti-clockwise
and remove it.
Side repeaters
E78338
2
1
Note: You cannot separate the bulb from
the bulb holder.
1. Slide the lens to the right and remove
it.
2. Disconnect the electrical connector.
Exterior mirror lamps
A
B
E92640
Side repeater lampA
Approach lampB
Note: Items A and B are not serviceable
items, please consult your dealer if these
fail.
Rear lamps
Type A
2
3
E78339
31
Lighting
