Ford RANGER Owner's Handbook

B
A
4
C
E78340
5

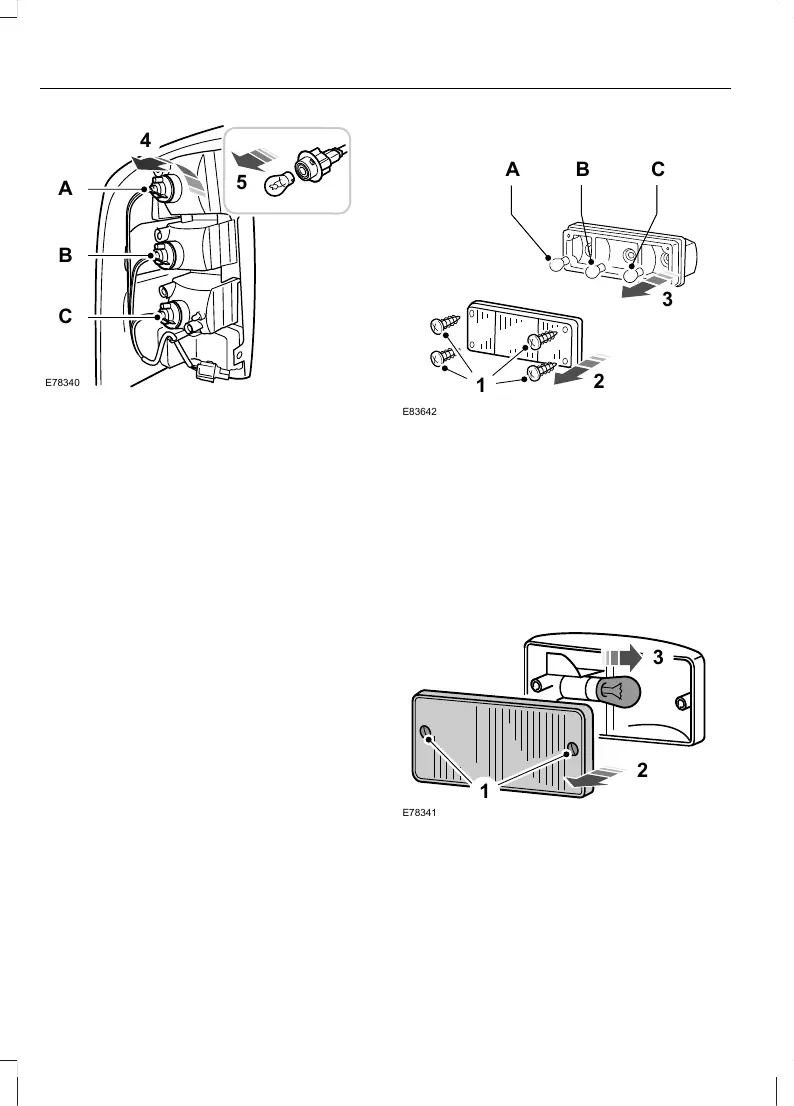

Tail and brake lampA
Direction indicatorB
Reversing and fog lampC
1. Open the tailgate.
2. Remove the screws.
3. Remove the rear lamp.
4. Turn the bulb holder anti-clockwise
and remove it.
5. Remove the bulb.
Type B
1
3
2
A
B C
E83642
Reversing lampA
Tail and brake lampB
Direction indicatorC
1. Remove the screws.
2. Remove the lens.
3. Remove the bulb.
Rear fog lamp
E78341
1
2
3
1. Remove the screws.
2. Remove the lens.
3. Remove the bulb.
32
Lighting
