Ford RANGER - Page 41

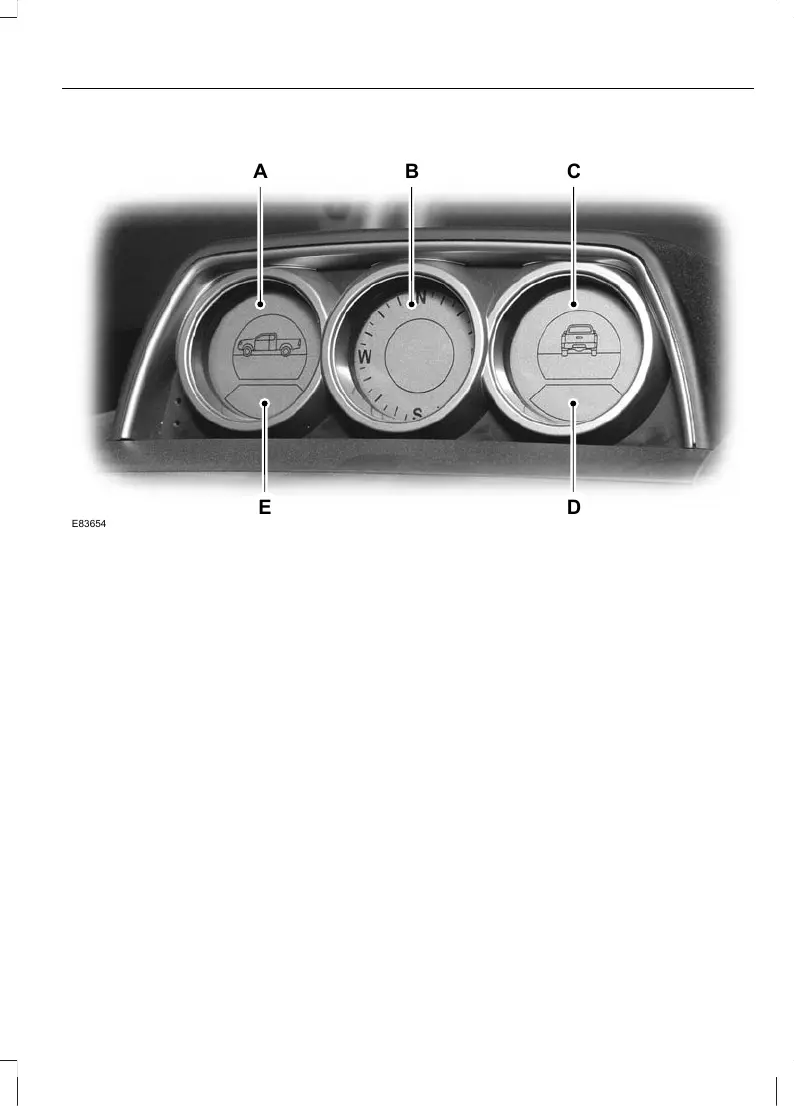

Inclinometer and compass
E D
A B C
E83654
Pitch inclinometerA
CompassB
Roll inclinometerC
Outside air temperatureD
Interior temperatureE
Pitch inclinometer
The pitch inclinometer indicates the fore
and aft angle of the vehicle from the
horizontal, measured in degrees.
Compass
The compass indicates the direction of
the vehicle by displaying an arrow
indicator and compass heading.
Roll inclinometer
The roll inclinometer indicates the side to
side angle of the vehicle from the
horizontal, measured in degrees.
Programming the inclinometer
and compass
Main menu
Overview of the main menu displays
39
Instruments
