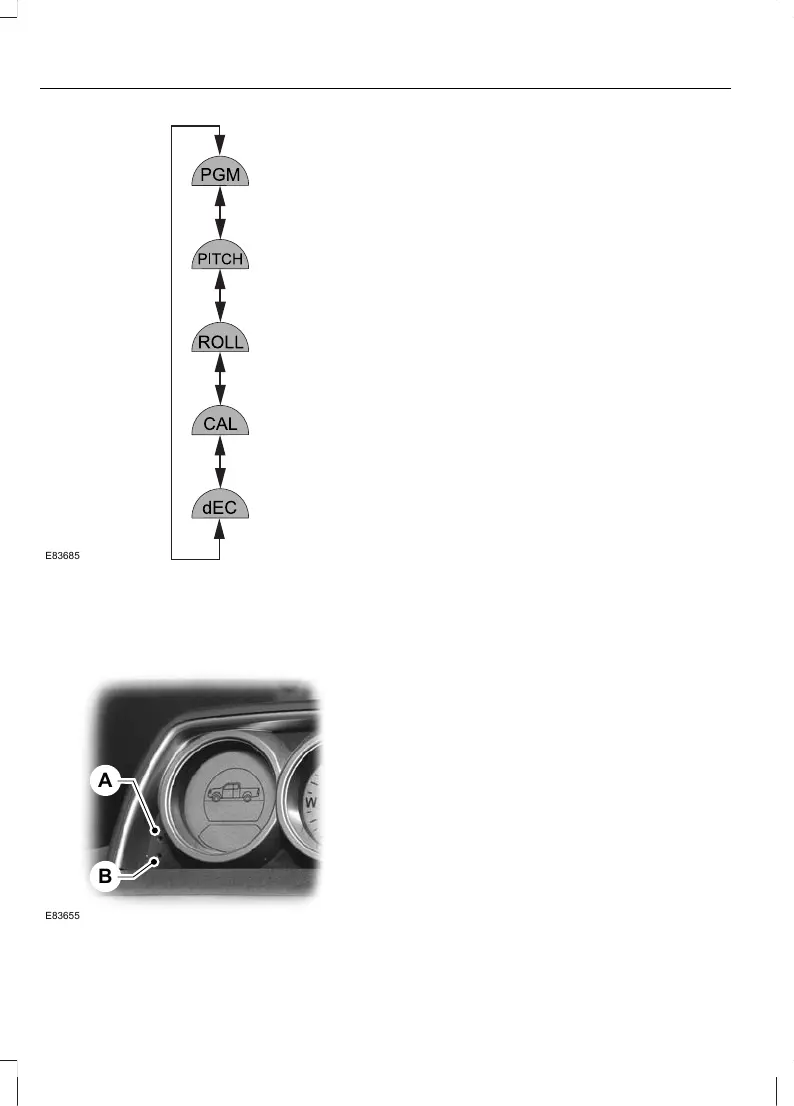

E83685
The various sub-menus are accessed
from the main menu.
Entering the programme mode
A
B
E83655
1.
Press and hold buttons A and B for
four seconds or more.
2.
Press button A to select the item that
you want to adjust.
Setting up pitch and roll
Note: Make sure that your vehicle is on
level ground.
1.
Press button A to select PITCH set
up mode.
2.
Press button B to set zero degrees.
3.
Press button A to select ROLL set up
mode.
4.
Press button B to set zero degrees.
5. Exit the programme mode.
Calibrating the compass
Note: Make sure that your vehicle is on
level ground.
1.
Press button A to select CAL set up
mode.
2.
Press button B to activate CAL set
up mode.
3. Drive the vehicle with full steering lock
on for two complete circles.
4.
Press button B to set the calibration.
5. Exit the programme mode.
Adjusting the declination angle
Note: Make sure that your vehicle is on
level ground.
1.
Press button A to select dEC set up
mode.
2.
Press button B to activate dEC set
up mode.
3. Enter your correct declination angle.
See declination table.
4.
Press button B to change the digit
from right to left.
5.
Press button A to change the figure
(at the 1st and 2nd digit).
40
Instruments
