18
Tipper Controls

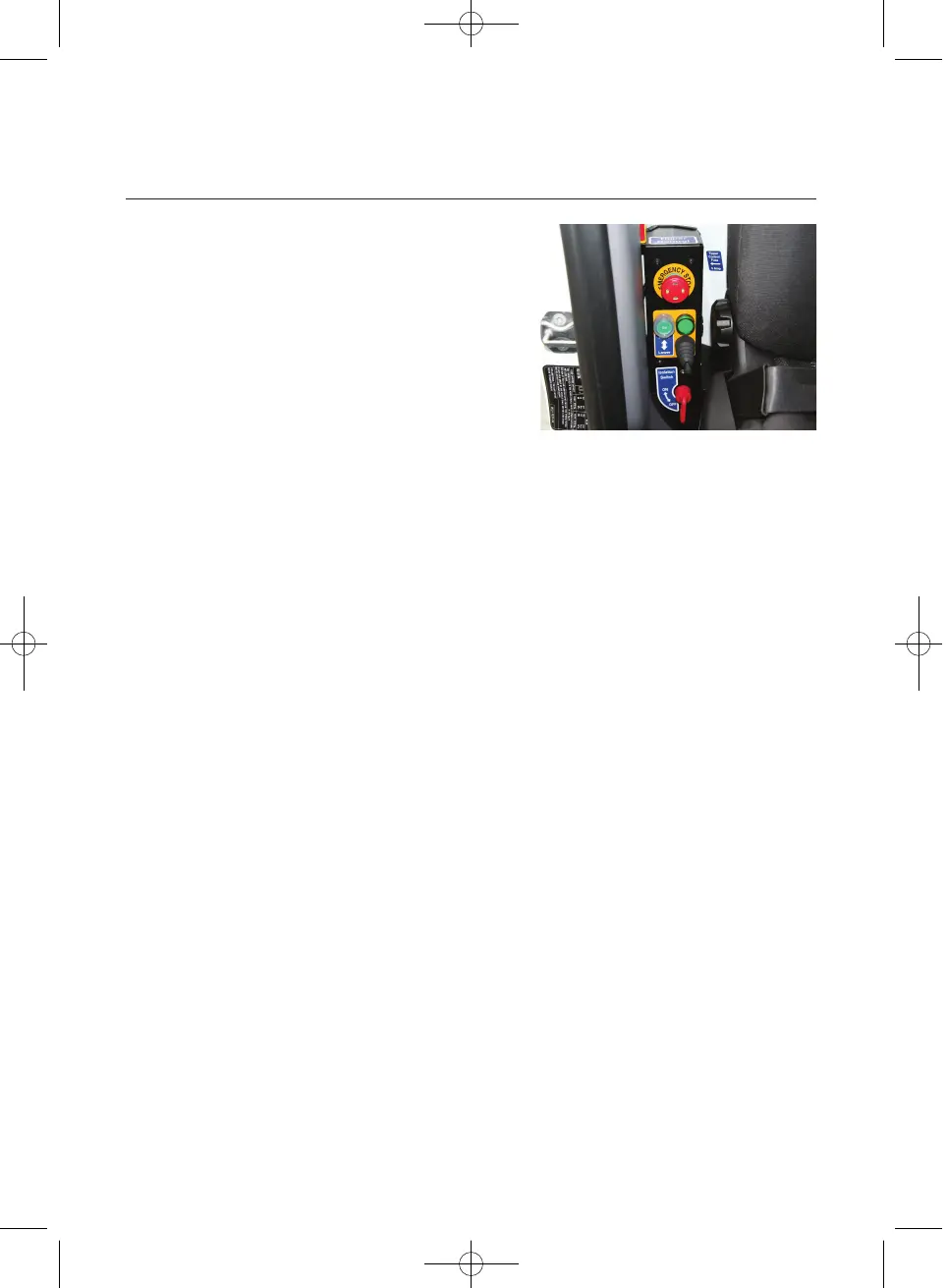

Tipper Control Station
Description:
The station provides all the controls
necessary to operate the tipper functions
into one consolidated location. The
following controls are located in this station.
Power on button
Power indicator lamp
Raise/lower joystick control
Emergency stop button
Isolation switch
Location:
The Tipper Control Station is to the right of the drivers seat base. Adjacent to
the cab offside rear corner pillar.
Purpose:
The Tipper Control Station enables the operator to control all functions of
the Tipper from the drivers seat, Power up the system, Raise and lower,
Emergency stop and Isolate.
Use: Operation procedure:
To perform tipping operations follow the instructions below:
Energise System…
Park the vehicle and apply handbrake.
Turn isolation switch to ‘ON’ position.
Switch on the Tipper Control system by pressing green ‘ON’ button.
Green ‘system energised’ light adjacent to switch will illuminate.
Note: If you release the handbrake after pressing green ‘ON’ button a warning
will sound and green ‘system energised’ light will extinguish and Tipping will no
longer be possible. Reapply handbrake and reset ‘ON’ button
