Formula Cruiser - 40 Performance Cruiser Specifications

3-9
FORMULA
SPECIFICATIONS AND LAYOUT
CRUISER/SUPERSPORT
40 PERFORMANCE CRUISER
Specifications
Approximate Weight:
Gas Power 18,510 lb (8,396 kg)
Diesel Power 18,900 lb (8,573 kg)
Capacities:
Port Fuel Tank 130 Gal.
Starboard Fuel Tank 118 Gal.
Fresh Water Tank 60 Gal. (227 L)
Hot Water Tank 11 Gal. (42 L)
Holding Tank 57 Gal. (216 L)
Steering System Full Hydraulic (Helm Pump)
Battery Charger 60 Amp
1
A
B
C
D
23456789

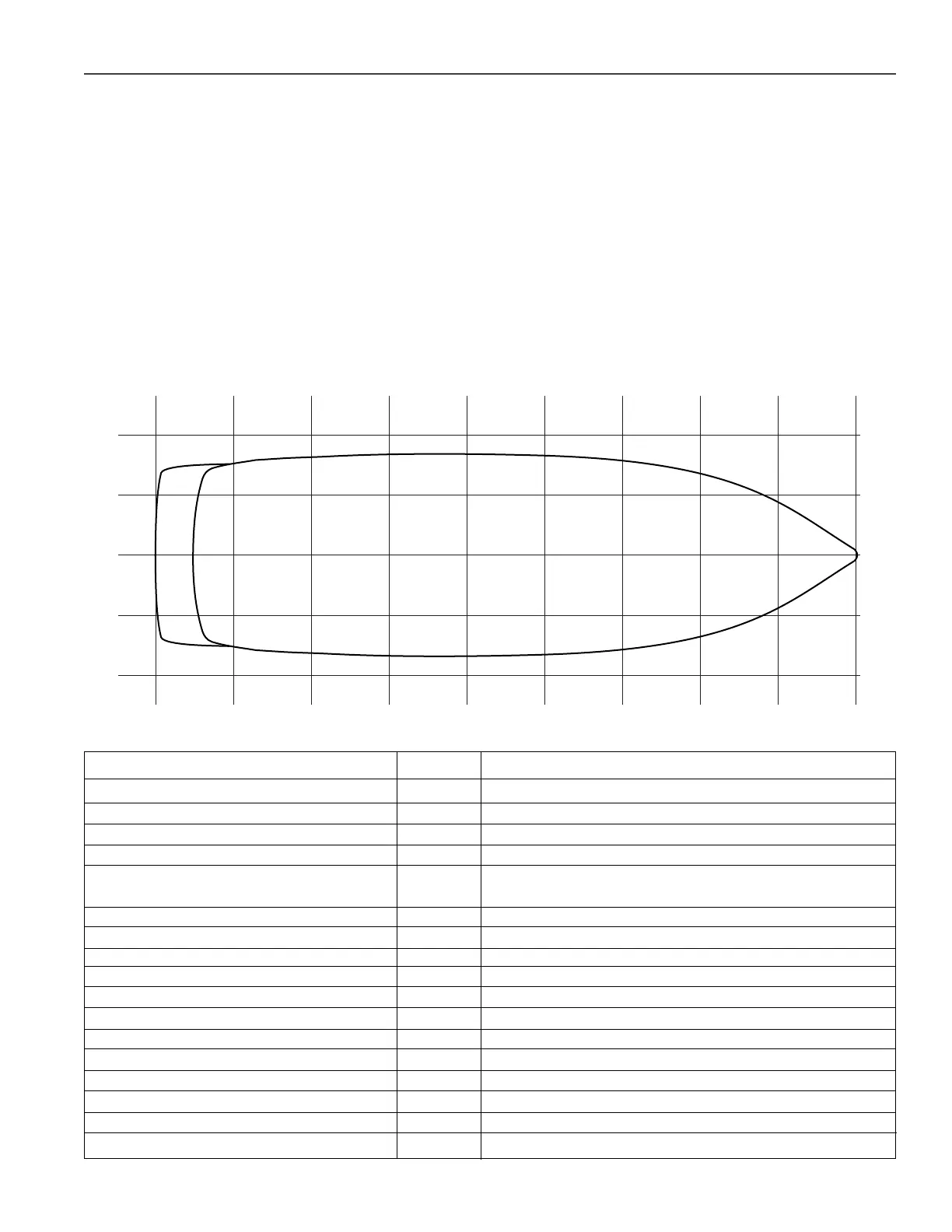

Equipment Location
Item
AC/DC Control Panel
Air Conditioning Controller
Automatic Fire Extinguisher
Battery Charger
Battery ON/OFF Switches
Battery Parallel Switch
Bilge Pump - FWD
Bilge Pump - Rear
Carbon Monoxide Detector
Central Vacuum
Circuit Breaker Panel - Helm
Circuit Breaker Panel - Cockpit
Circuit Breaker - Shore 1 Power Cord
Circuit Breaker - Shore 2 Power Cord
Circuit Breaker - Windlass
Circuit breaker - Auxiliary Power
Drive Unit Pump - PORT
Location
D-4
D-4
C-2
B-2
B-2/B-3
B-2
B/C-5
B-2
D-2
D-3
D-3
A-3
D-2
D-2
B-2
B-2
N/A
Remarks
Cabin, above aft dinette seat
Cabin, above aft dinette seat
FWD engine compartment, STBD side
FWD engine compartment, PORT side
FWD engine compartment above generator/aux aft
wet bar compartment
Forward engine compartment above generator
Cabin floor FWD sump by galley
Engine compartment, keel
Aft cabin, behind hanging locker, STBD side
Under aft cabin starboard seat cushion
Beneath dash starboard side
Cockpit, wet bar, behind aft storage door
Seat cushion, beneath aft cockpit STBD side corner
Seat cushion, beneath aft cockpit STBD side corner
Forward engine compartment above generator
Forward engine compartment above generator
