SYSTEM OPERATION AND EQUIPMENT
CRUISER/SUPERSPORT

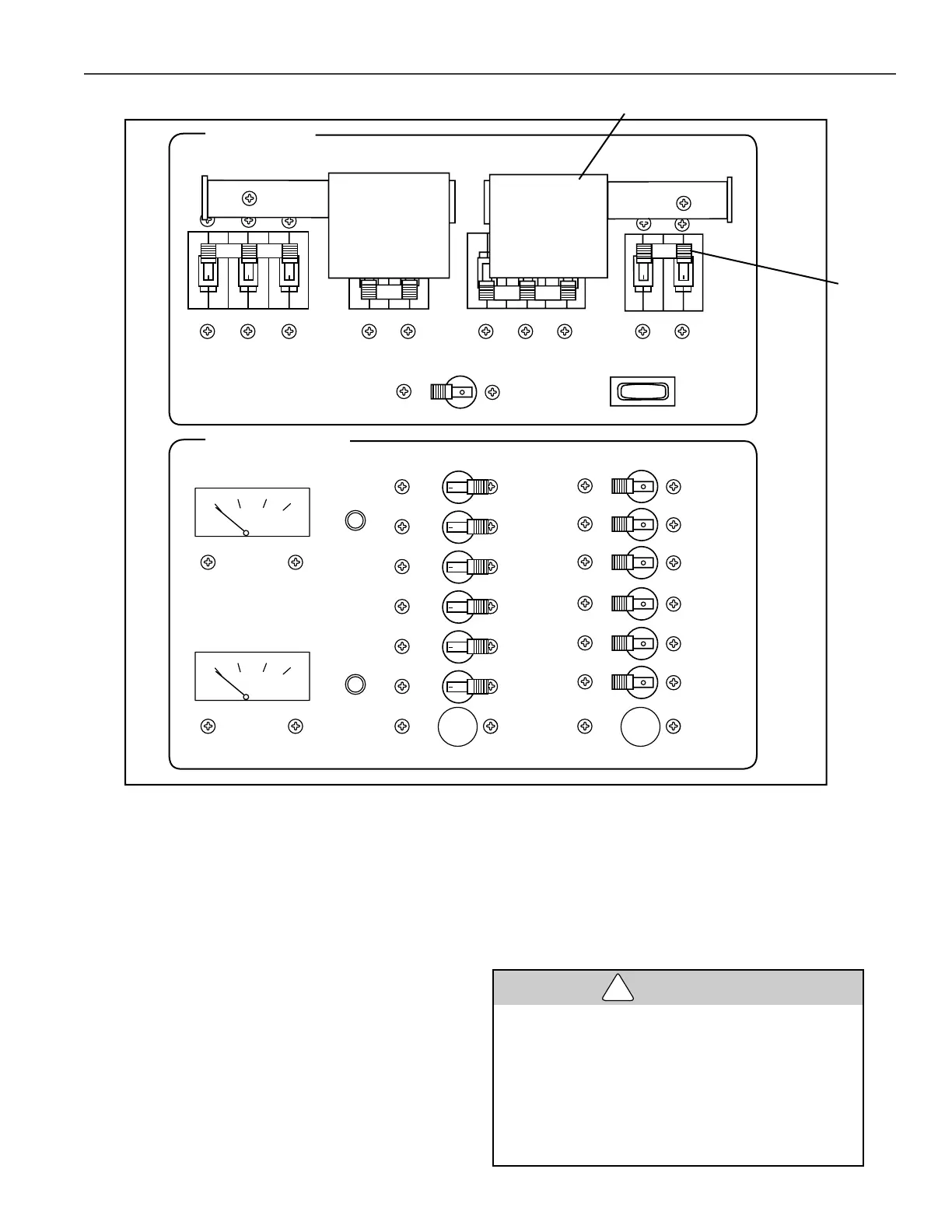

To operate equipment from the right column of
circuit breakers, turn the AC main circuit breaker
No. 2 OFF. Move the slide cover from the transfer
switch over to cover the No. 2 main circuit breaker.
Move the transfer switch up to the ON position. In
this configuration, all components can be used
with power supplied from Shore 1 cord up to a
maximum of 30 amps.
Shore Power Connection
The shore power system requires a special,
marine grade three-conductor cable to make a
proper connection to the shore. Dockside
connections and the boat side connections are
plug-in. Boatside connections are also locked in
position with a threaded locking collar to prevent
accidental disconnection and enhance water
resistance. Refer to Specifications, in Section 3,
for location of your shore power receptacles.
Plugs and receptacles for different
systems are designed in non-
interchangeable configurations. A plug
from one system cannot fit into the
receptacle of another system. Do not
modify a shore power cable. Use only
commercially available adapters for
system modification.
