Formula Cruiser - HELM CONTROLS AND INDICATORS

4-9
FORMULA
CONTROLS AND INDICATORS
CRUISER/SUPERSPORT
HELM CONTROLS AND
INDICATORS

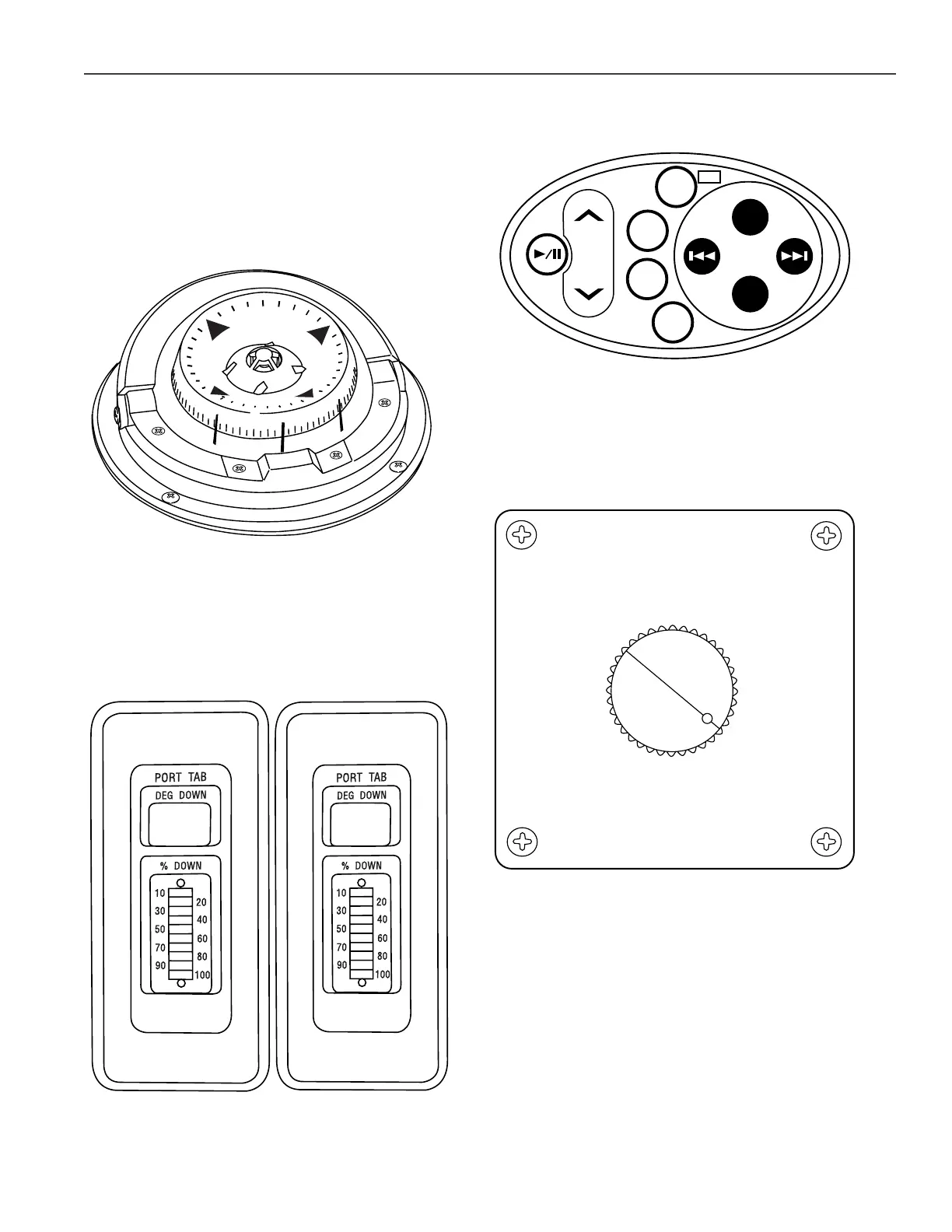

Compass—Aids in navigation of your Formula
boat, a compass is mounted at the helm. Refer to
the compass user’s manual supplied in your
Owner Information Binder for operating
information.
Trim Tab Indicators—Displays the trim tab
location in degrees and percent of deflection.
Refer to Trimming-Drive Units and Trim Tabs, in
Section 7, for trim tab operation.
Trim Tab Indicators
Figure 4-25
Compass
Figure 4-24
S
SW
NW
NE
S
E
N
W
E
2
2
3
3
3
0
0
0
3
0
0
7
0
2
4
0
Stereo Remote Control—Provides full-feature
stereo remote control from the helm (Figure 4-26).
Stereo Remote Volume Control—Controls local
volume of the stereo. Several volume controls are
installed in your Formula boat (Figure 4-27).
Stereo Remote Volume Control
Figure 4-27
0
3
2
1
4
5
6
7
8
9
10
Stereo Remote Control
Figure 4-26
DISC UP
DISC DOWN
TRACK/TUNE
FM
TUN
CD
TAPE
VOLUME
CD
CH
OFF
SRC
AM
FOR025
FOR063
FOR037
FOR013
