Formula Cruiser - AC ELECTRICAL

5-4
FORMULA
PERFORMANCE CRUISER/SUPER SPORT
CRUISER/SUPERSPORT
AC ELECTRICAL
Any modification performed on the boat’s
AC system must be made by a qualified
marine technician. The modification must
be checked to assure compliance with
ABYC guidelines and National Electrical
Codes.
CAUTION
The AC portion of the control panel receives AC
power from the shore power cable(s) or the
generator. The AC panel distributes power through
two main circuit breakers which in turn supplies
the individual branch circuit breakers. AC
electricity typically operates the following
equipment:
●
Electrical outlets
●
Microwave, Stove and Refrigerator
●
Battery charger and Hot water heater
●
Air conditioning and Vacuum
MAIN #1
MAIN #1
BLOWERS
START STOP
GENERATOR CONTROLS
MAIN #2
TRANSFER
SHOREPOWER
MAIN #2
SHOREPOWER
MAIN #1
GENERATOR
0
AC VOLTS
ON ON ON
OFF
ON ON ON ON ON ON
OFF OFF OFF OFF OFF OFF
ON ON ON
50
100
150
MAIN #2
REVERSE
POLARITY
REVERSE
POLARITY
CABIN
HEATER
WATER
HEATER
REFRIG.
MICROWAVE
STOVE
WALL
VACUUM
ACC./
AIR COND.
ACC.
ICE
MAKER
AIR
COND,
GALLEY
OUTLETS
STBD
OUTLETS
PORT
OUTLETS
BATTERY
CHARGER
0
AC VOLTS
50
100
150
MAIN CONTROLS
120V 60HZ AC SYSTEM
1
6
5
4
2

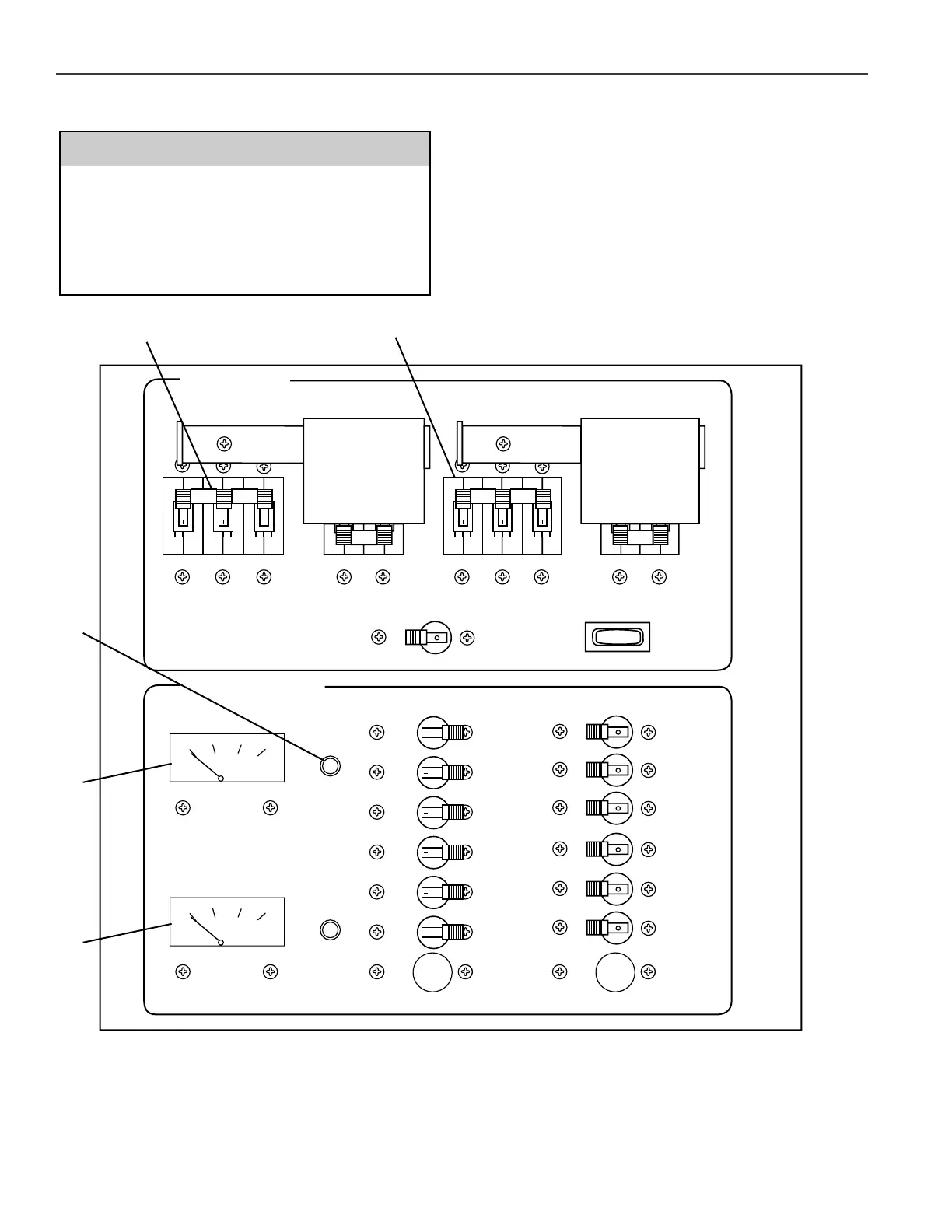

AC Electrical Panel
Figure 5-3
1. Shore Power No. 1 Main Circuit
Breaker
2. Shore Power No. 2 Main Circuit
Breaker
3. Shore Power No. 2 Reverse
Polarity Light
4. Shore Power No. 2 Voltmeter
5. Shore Power No. 1 Voltmeter
6. Shore Power No. 1 Reverse
Polarity Light
