1. Trim Switch
On some models, the trim switch activates the
drive unit’s tilt feature. Other models have
separate switches that activate the tilt feature.
These switches are labeled “Trailer.” The port
switch activates the port drive unit’s power tilt. The
starboard switch activates the starboard drive
unit’s power tilt. Push the top of the switch to raise
the drive unit.
1. Trailer Switches
Typical Trailer Switches
Figure 4-18
1
OUT
OUT UP
IN DOWN
TRAILER
T
A
B
S
D
R
I
V
E
S

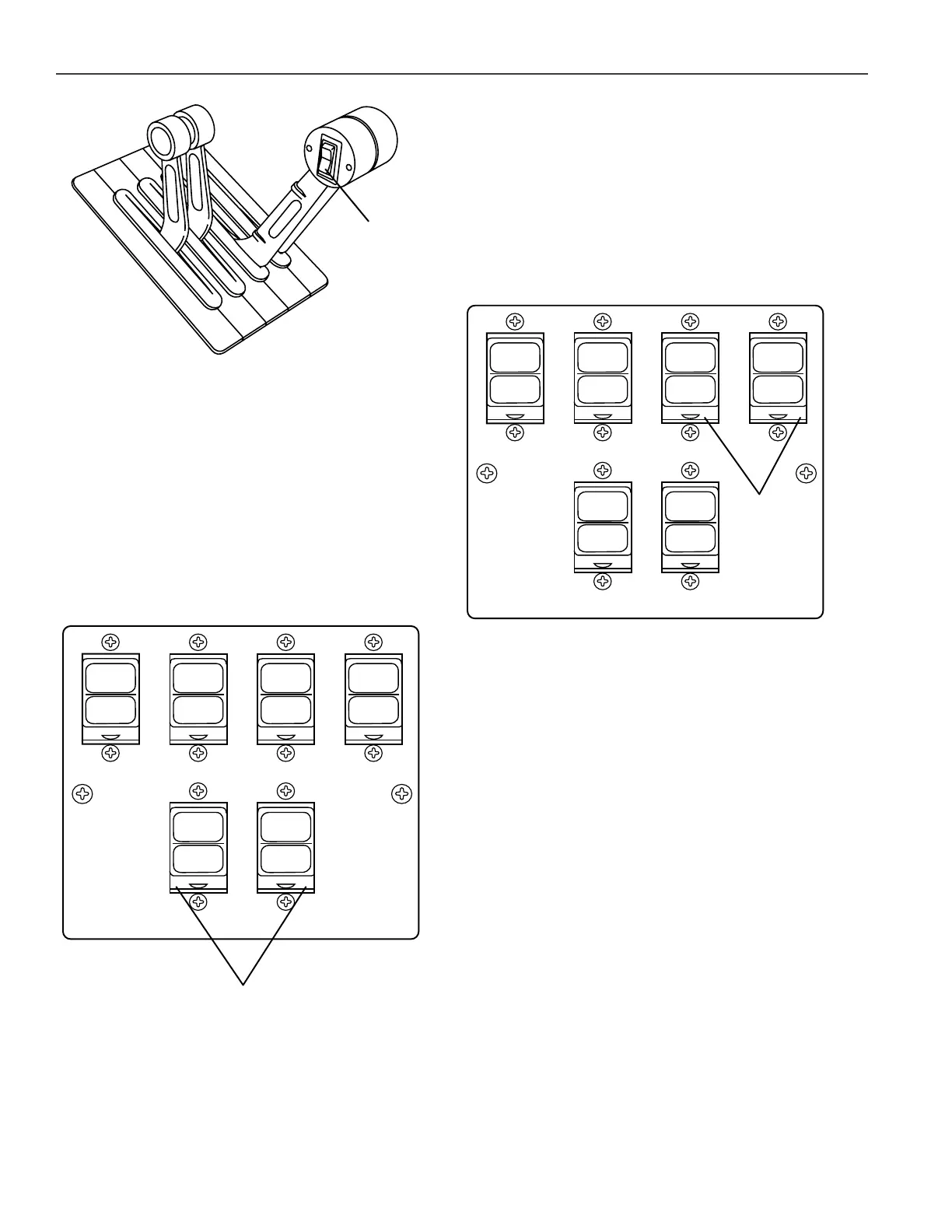

Remote Control Trim Switch
Figure 4-17
1
Refer to Trimming-Drive Units and Trim Tabs, in
Section 7, for additional information.
Trim Tab Switch—Labeled “TABS,” these
switches control the operation of the trim tabs.
Adjusting trim tabs will improve the ride of your
boat and correct listing from side to side due to
varying weight distribution and/or sea and wind
conditions. Refer to Trimming-Drive Units and
Trim Tabs, in Section 7, for further trimming
procedures.
1. Trim Tab Switches
CIRCUIT BREAKERS
A circuit breaker panel(s) is located at the helm.
Most electrical equipment is controlled with circuit
breakers. These breakers will activate if
overloaded and cut power to the switch. To restore
power, push the button in and release. If a circuit
continuously overloads under normal operating
conditions, have your boat inspected by your
Formula dealer immediately.
Typical Trim Tab Switches
Figure 4-19
1
OUT
OUT UP
IN DOWN
TRAILER
T
A
B
S
D
R
I
V
E
S
