Formula Cruiser - Using Only Shore 1 Power Cord

5-6
FORMULA
PERFORMANCE CRUISER/SUPER SPORT
CRUISER/SUPERSPORT
The two shore power inlet breakers, one for shore
power No. 1 circuit and one for shore power No. 2
circuit, protect the AC circuits from the boat’s
shore power connectors to the AC control panel.
Refer to Specifications, in Section 3, for shore
power inlet breakers’ location.
Using Only Shore 1 Power Cord
Shore 1 cord powers the left column of circuit
breakers on the AC control panel. Any of these
circuit breakers may be used with only shore 1
plugged in.
SHOREPOWER
MAIN #2
120 VAC
60 HZ
ON
SHOREPOWER
MAIN #1
120 VAC
60 HZ
ON

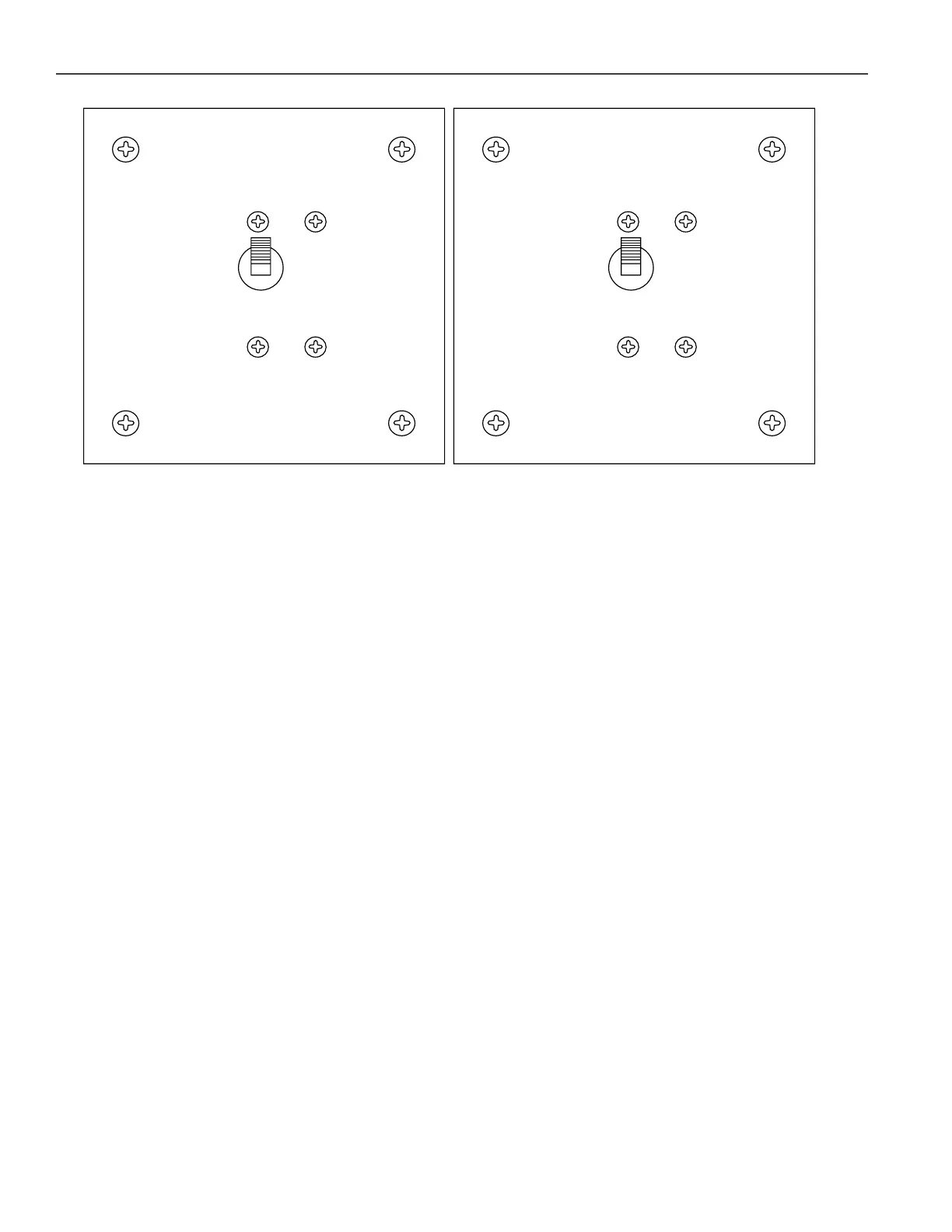

Shore Power Inlet Breakers
Figure 5-5
FOR017
