Search Light Remote Control—Electrically
operates the search light from the helm. For
operating information, refer to the search light
operating instructions in your Owner Information
Binder.
Automatic Fire Extinguisher Indicator—
Monitors the fixed automatic fire extinguisher
mounted in the engine compartment. The
automatic fire extinguisher indicator light is located
at the helm. When the light is on, the system is
charged. When the light is off, the system is
discharged and needs attention. Refer to
Automatic Fire Extinguisher, in Section 5, for
additional information.
1. Indicator Light
Automatic Fire Extinguisher Indicator Light
Figure 4-29
LIGHT OFF
SYSTEM
DISCHARGED
ALARM
W
ILL SOUND W
HEN
OIL PRESSURE IS LOW
OR ENGINE IS HOT.
LIGHTON
SYSTEM
CHARGED
W
AR
NIN
G:
G
A
S
O
L
IN
E
V
A
P
O
R
S
C
A
N
E
X
P
L
O
D
E
.
B
E
F
O
R
E
S
T
A
R
T
IN
G
G
E
N
E
R
A
T
O
R
;
–
C
H
E
C
K
E
N
G
IN
E
C
O
M
P
A
R
T
M
E
N
T
F
O
R
G
A
S
O
L
IN
E
O
R
V
A
P
O
R
S
.
–
O
P
E
R
A
T
E
B
L
O
W
E
R
S
F
O
R
4
M
IN
U
T
E
S
.
R
U
N
B
L
O
W
E
R
B
E
L
O
W
C
R
U
S
IN
G
S
P
E
E
D
.
HORN
1

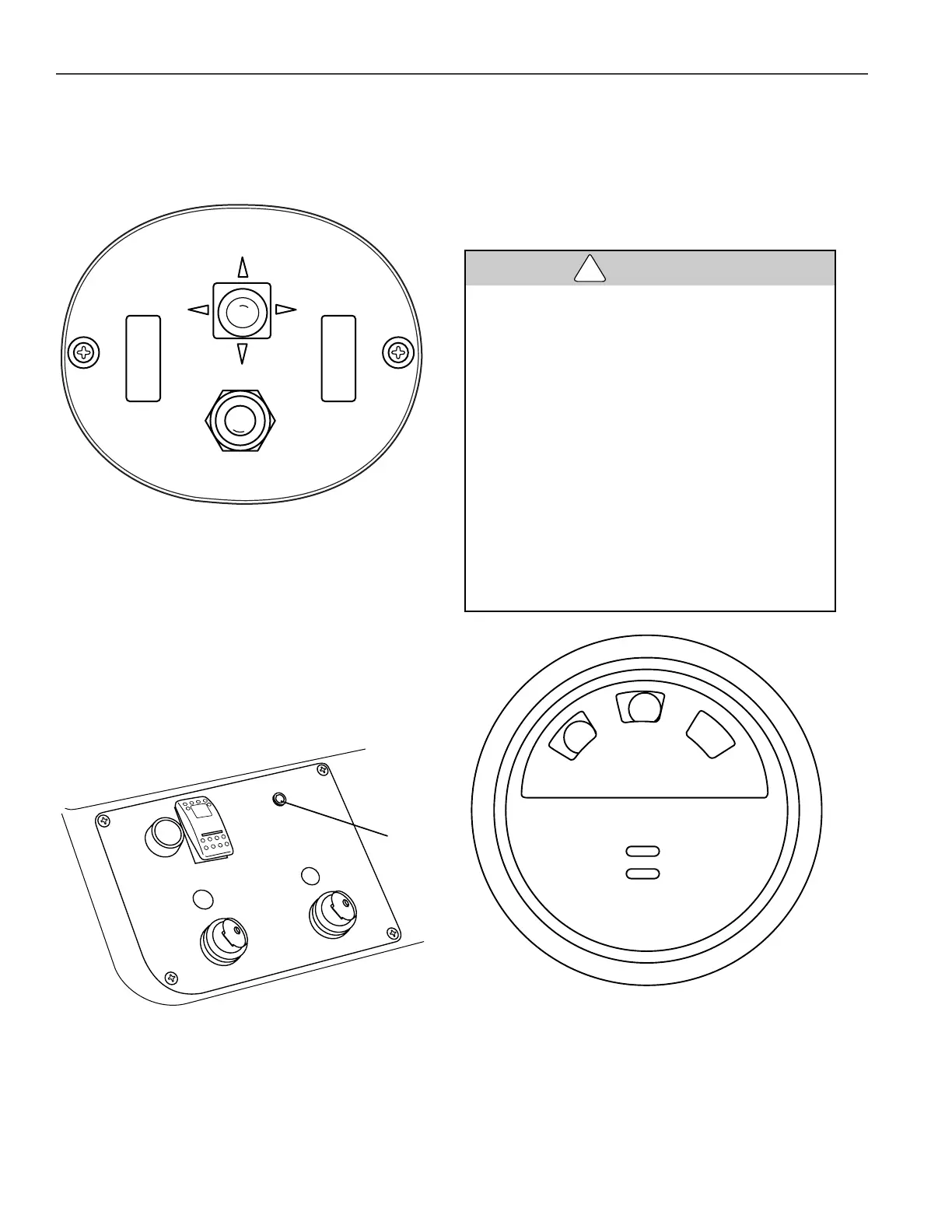

Typical Search Light Remote Control
Figure 4-28
SEARCHLIGHT
SF
Fume Detector Gauge—Monitors the engine
compartment for excessive fuel fumes. The gauge
is mounted at the helm and a sensor is located in
the bilge area where fumes collect. The system
also monitors for unburned hydrocarbons from a
faulty exhaust system and hydrogen battery
vapors. Refer to the fume detector owner’s manual
for additional information.
The fume detector system is meant to
serve as a supplement warning system. It
is not meant to replace standard safety
practices which should be followed around
explosive gases.
If the fume detector indicates a dangerous
condition, do the following:
●
Do not operate electrical equipment.
●
Extinguish open flames and smoking
materials immediately.
●
Turn OFF the engines and generator.
●
Wait five minutes before opening the
engine compartment to investigate the
cause.
●
Determine the cause and correct it
immediately before resuming operation.
Fume Detector Gauge
Figure 4-30
GASOLINE FUME DETECTOR
MUTETEST
M-1
!
WARNING
FOR012
FOR065
FOR066
