Windlass ON/OFF Switch—Supplies electrical
power to operate the windlass from the helm.
(Figure 4-12)
Windlass Up/Down Switch—Raises and lowers
the windlass. The safety pin must be removed
from the lock bracket before operating the
windlass. Turn the windlass switch OFF and install
the safety pin when the system is not in use. For
additional Windlass system information, refer to
Anchoring and Sea Anchors, in Section 7.
The safety pin must be installed in the lock
bracket when the windlass is not in use.
Do not operate your Formula boat without
the safety pin installed.
The windlass can be operated from the bow. Two
foot operated switches are located under the
anchor locker door.
1. Down Manual Switch
2. Up Manual Switch
Exhaust Diverter Switch—Controls the exhaust
direction on the exhaust diverter system, if
equipped.
Accessory Switch—This switch is available to
operate an accessory item.
Windlass Manual Switches

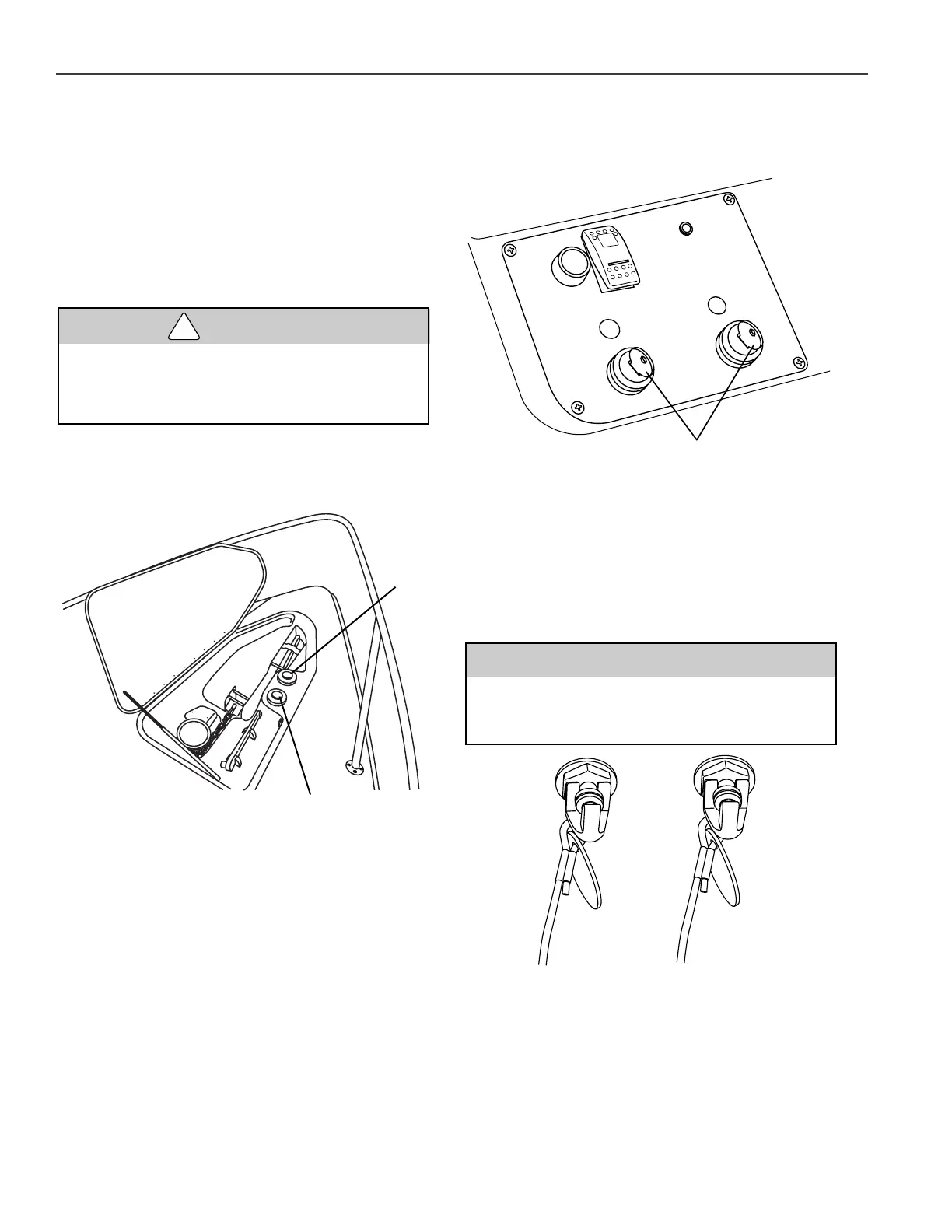

Figure 4-12
1
2
!
WARNING
Ignition Switches—Each engine has a separate
ignition switch. The left switch is for the port
engine, and the right switch is for the starboard
engine.
1. Ignition Switches
Ignition Safety Switches—Super Sport models
are equipped with two ignition safety switches, one
for each engine. The ignition safety switches are
mounted on the starboard gunwale at the helm.
Do not allow your Formula boat to be
operated without the proper use of the
ignition safety switch and lanyard.
Ignition Safety Switches
Figure 4-14
CAUTION
Ignition Switches
Figure 4-13
