Air Conditioning Controller—Displays
information and controls certain aspects relative to
the associated air conditioning system. Controller
(Figure 4-34) for each unit is located centrally,
relative to the area being cooled/heated. Refer to
the air conditioning owner’s manual in your Owner
Information Binder for operating instructions.

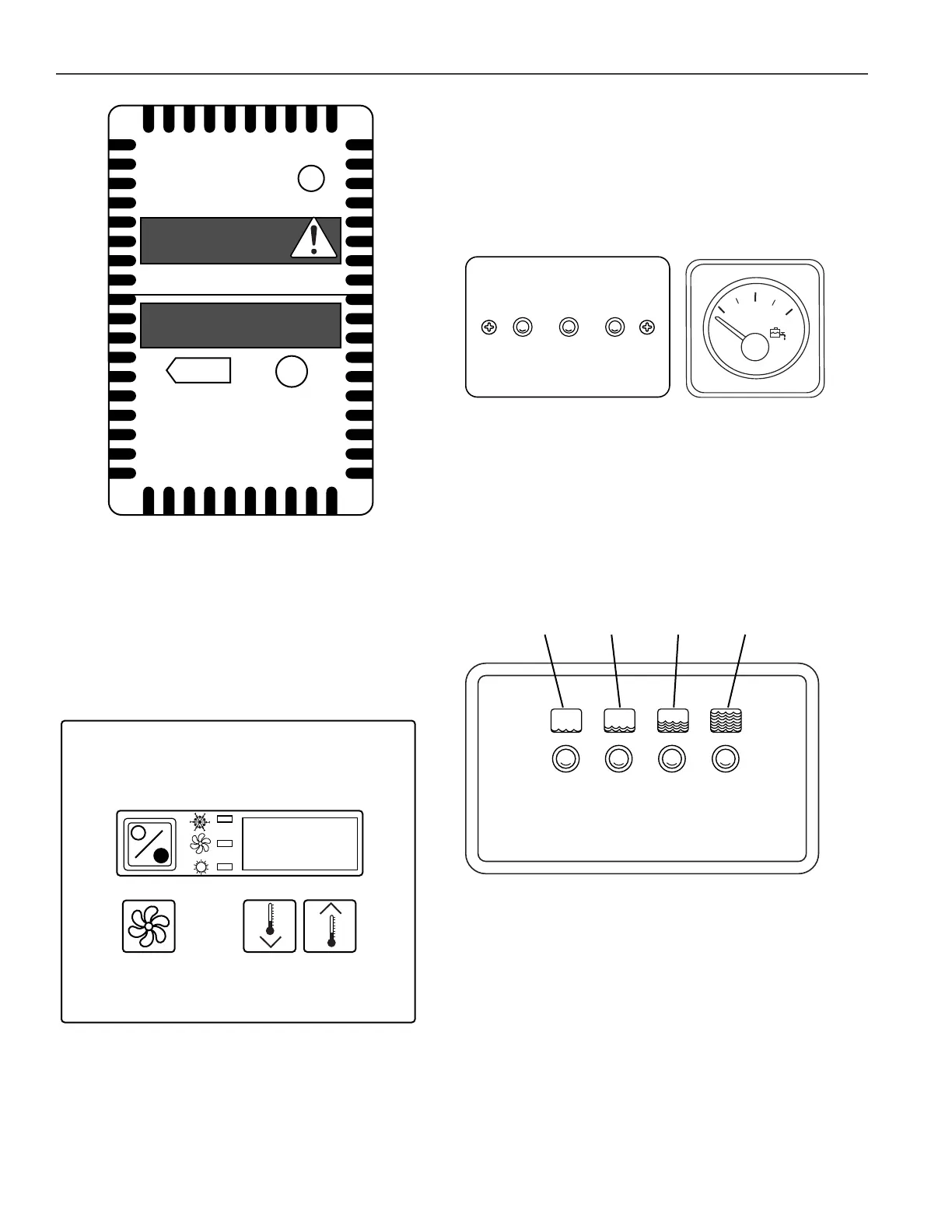

Air Conditioning Controller
Figure 4-34
Carbon Monoxide Detector
Figure 4-33
Fresh Water Level Indicator—Displays the
available fresh water in the tank. The indicator is
located under the galley sink. Your Formula boat
may be equipped with either a gauge or a display
panel. The Water Pump breaker located in the 12V
section of the AC/DC panel must be “ON” to
activate the indicator. Refer to Fresh Water
System, in Section 5, for additional information.
Waste Tank Level Indicator—Displays the level
of waste water in the tank. The indicator is located
in the head compartment. The Head Pump
breaker located in the 12V section of the AC/DC
Panel must be “ON” to activate the indicator. Refer
to Waste Water System, in Section 5, for
additional information.
1. Green Light—Empty
2. Yellow Light—Low
3. Orange Light—Mid
4. Red Light—Full
Head (Toilet)—Flushing is controlled by pushing
down on the pedal at the base of the toilet. Lifting
up on the pedal will raise the water level in the
bowl, if needed.
Waste Tank Level Indicator
Figure 4-36
