Formula RX - SET UP; Lever Positioning Adjustments; Braking Feeling Adjustment (FCS)

28
2 SET UP

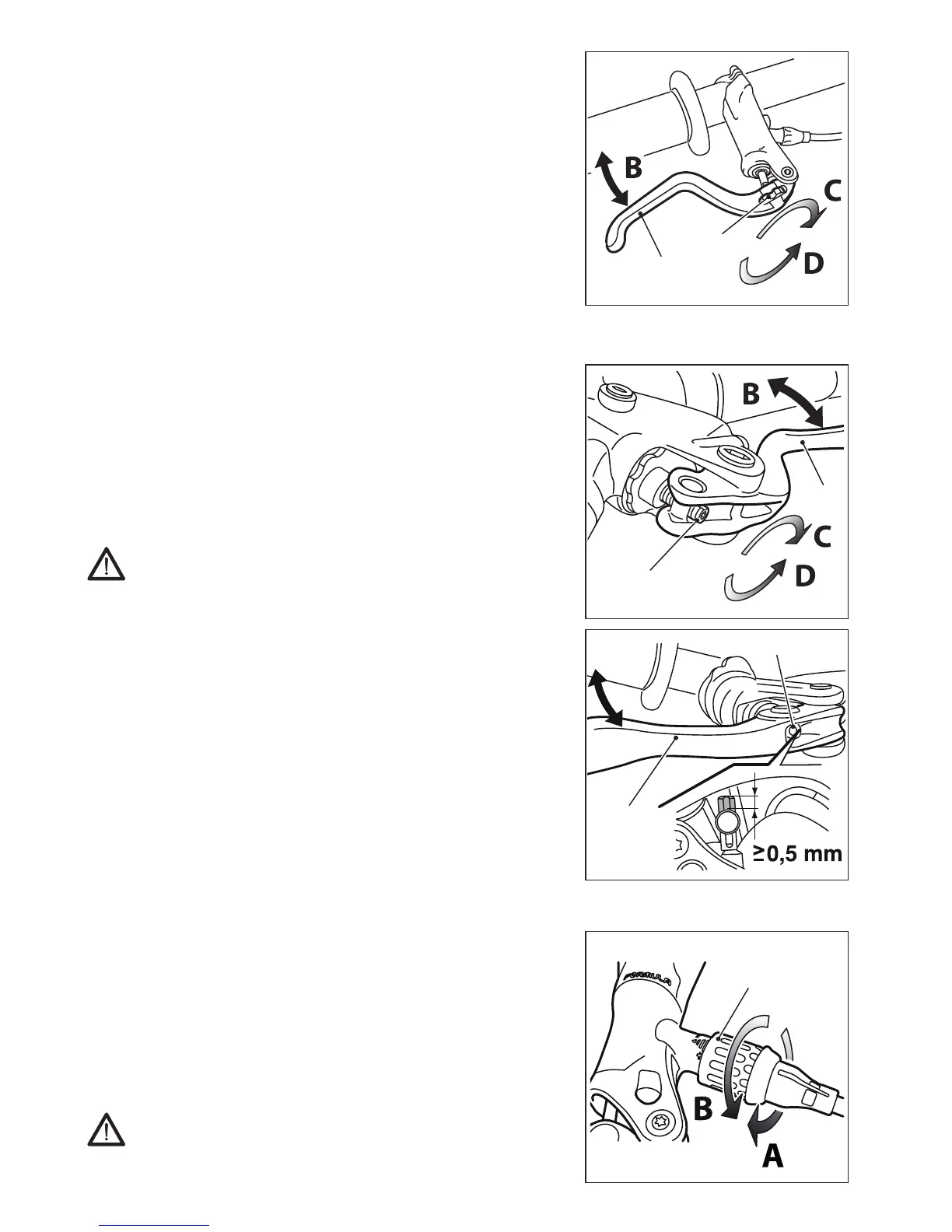

2.1 Positioning the R1 - RO - T1
T1 RACING - T1S - R1S
ITCANBEUSEDFORPUMPSWITHTFRA
Turn the knob 61 so as to adjust the position of the lever 60
(distanceB)asrequired.
Turn the knob 61 in the direction D to increase the distance
B.
Viceversa,turntheknob61 in the direction C to decrease
the distance B.
2.2 PositioningtheRX-R1RACINGlever
ITCANBEUSEDFORPUMPSWITHOUTTFRA
To position lever 29(distanceB)tomeetyourneeds,adjust
screw 30witha2mmAllenwrench.
WARNING: The head of adjuster screw 30 must
protrudeatleast0,5mmfromthethreadedinsert.
2.3 Braking feeling adjustment (Optional)
FCS(FeelingControlSystem)adjustmentallowsthechange
of the braking point in the braking device.
Turn the ring nut 64 in the direction A for an abrupt and
immediate braking.
Turn the ring nut 64 in the direction B for a soft and progres-
sive braking.
WARNING: The lever must be in idle position when
adjusting the FCS.
B
29
30
60
61
64
60
61
