Solid Wire
75% Ar + 25%
CO
2
(ER70S-6)
.023” (0.6 mm) 25 17.8 82 42 18.5 69 51 19.5 66 71 20.6 52 78 22 52 - - - - - - - - -
.030” (0.8 mm) 22 15.1 65 33 16.7 65 44 18 65 55 19.7 65 60 20.7 65 65 22.2 65 75 23 65 80 23.7 65
.035” (0.9 mm) 22 15.5 68 28 16.4 68 33 17.1 68 44 18.7 68 55 21.3 75 60 22.1 76 - - - - - -
Solid Wire
100% CO
2
(ER70S-6)
.023” (0.6 mm) 37 19.3 80 48 19.9 73 59 21.2 70 85 23.7 59 74 24.6 55 - - - - - - - - -
.030” (0.8 mm) 24 15.8 69 33 17.5 69 44 18.9 69 60 21.9 69 75 23.6 69 85 24.9 69 90 25.8 69 - - -
.035” (0.9 mm) - - - 19 18.2 92 30 19.7 90 38 21.1 93 46 22.7 96 55 24 97 - - - - - -
Flux Core Wire
(No Gas)
(E71T-GS)
.035” (0.9 mm) - - - - - - 18 14.7 66 30 16.5 66 37 17.2 66 48 18.8 66 59 20.8 66 - - -
(Wire)
GAS
WIRE
ø
MATERIAL THICKNESS
22 Gauge
.0315” (.8 mm)
18 Gauge
.0236” (1.2 mm)
16 Gauge
1/16” (1.6 mm)
12 Gauge
.0984” (2.5 mm)
1/8” (3 mm) .1575” (4 mm) 3/16” (5 mm) 1/4” (6 mm)

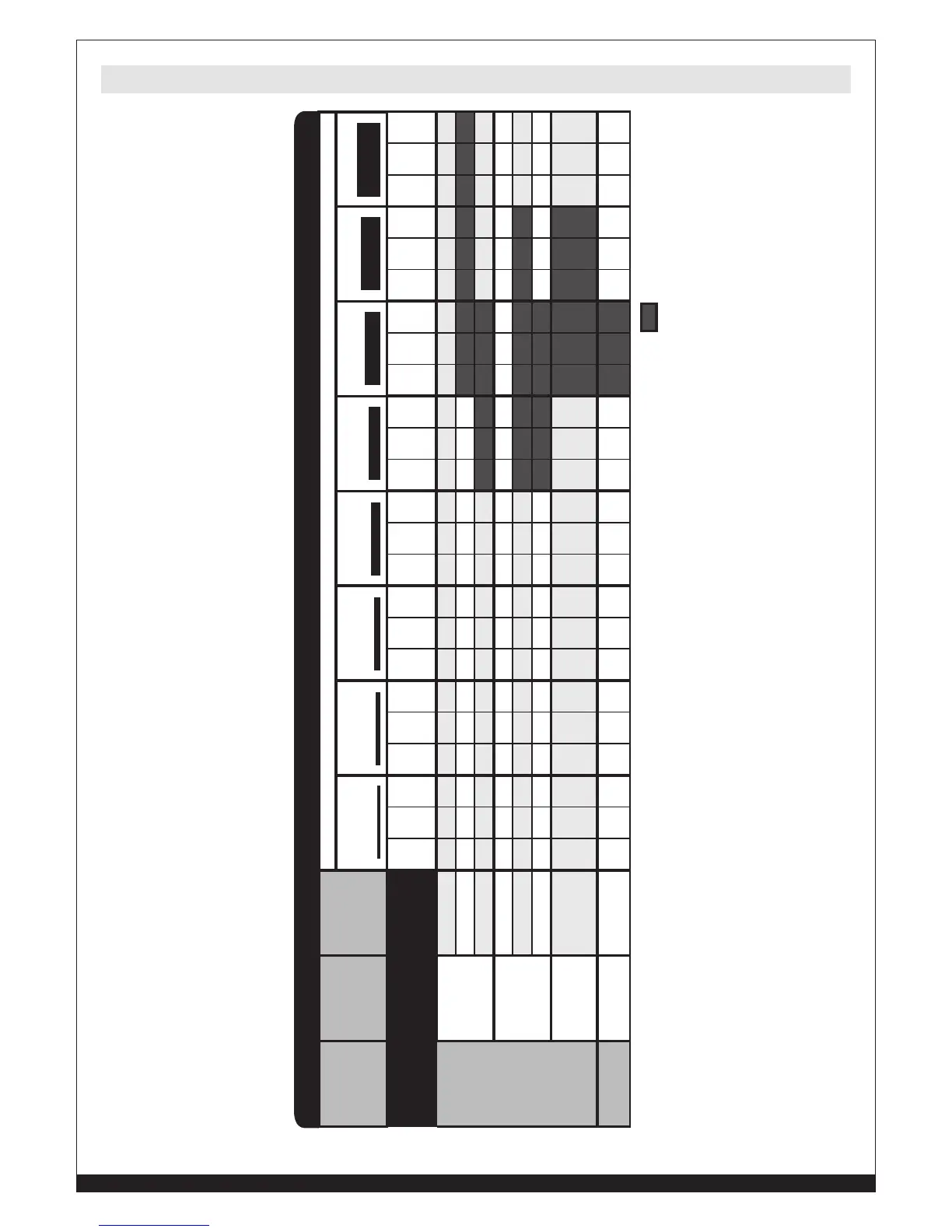

190 MP MIG SET-UP CHART
MIG, GMAW, Fluxcore Wire (FCAW) Welding Setting Chart
