FORST XR8D - Chipper Diagrams

Page 29
5.5 Chipper Diagrams

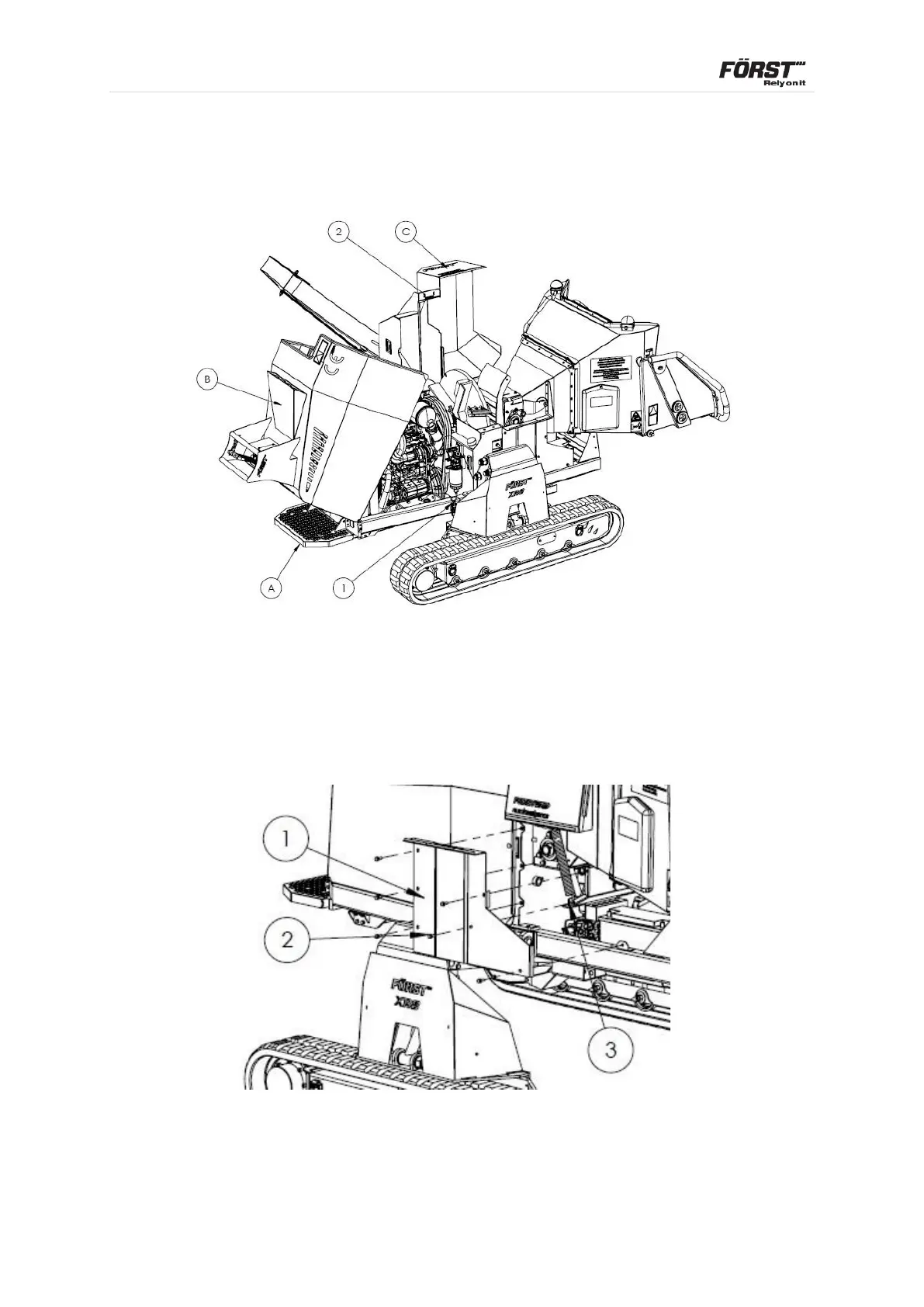

5.5.1 Main Covers
• Opening sequence: ‘A’ then ‘B’ then ‘C’
5.5.2 Side Panel
1. Engine cover latch (x2)
2. Chipping chamber cover bolts (x2 M12)
1. Side panel
2. 6 x Fasteners
3. Hydraulic oil filter
4. Tensioner
