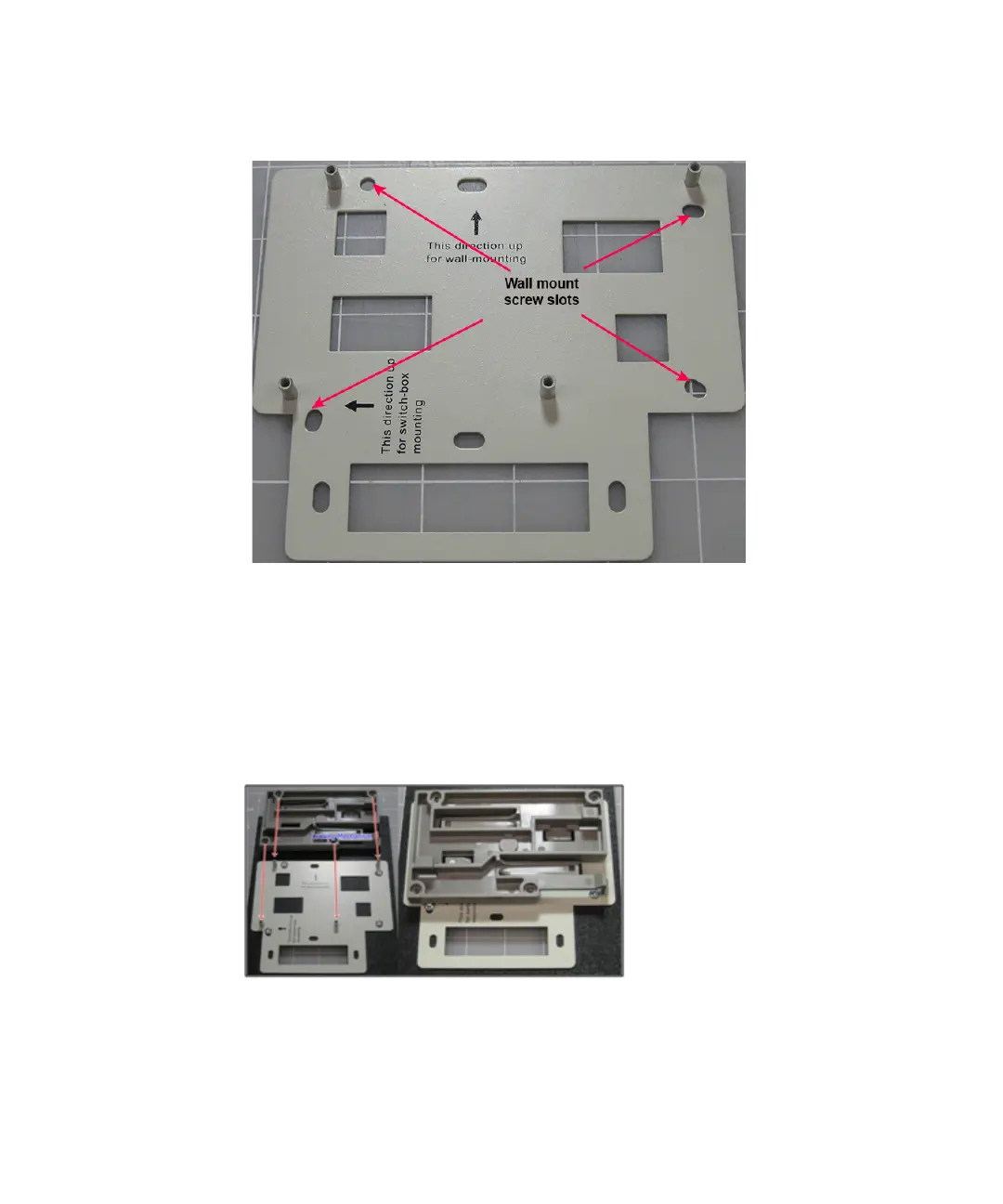

Figure 3: AP832 Wall Bracket
6. Orient 15/16" T-Bar adapter/Wall mount adapter to line up with posts on wall mount
bracket.
7. AP locking mechanism should be facing away from bracket.
8. Position the adapter over posts on wall mount bracket.
• User may mount the wall mount adapter directly to the wall mount bracket or use the
included option spacers to allow additional clearance between the AP and bracket. See
“AP832 Wall Bracket without spacers” on page 13 and “AP832 Wall Bracket with spac-
ers” on page 14.
Figure 4: AP832 Wall Bracket without spacers
To Next Page
