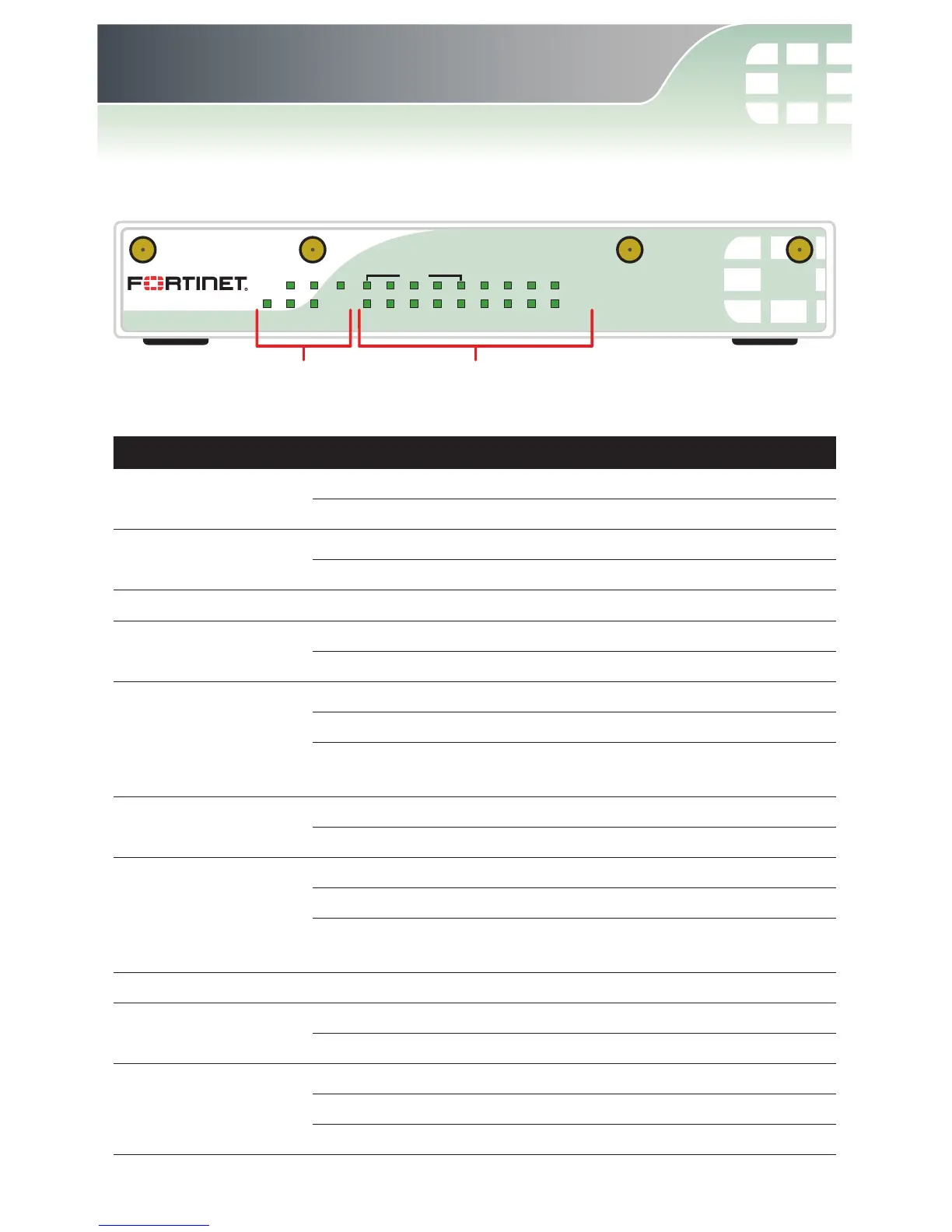

Interface LEDs
PWR STATUS HA
SPEED
LINK/ACT
WAN1 WAN2 DMZINTERNAL
3G/4G
1 2 3 4 5
MODEM
FortiWiFi 60CM-3G4G
3G-1 4G-1 4G-2
3G-2
WIFI
Unit LEDs
8. LED Specifications
LED State Description
Power
Green The unit is on.
Off The unit is off.
Status
Flashing Green The unit is starting up.
Green The unit is running normally.
HA Green The unit is being used in an HA cluster.
Ports 1 to 5 Link/Act
Green Port is online.
Flashing Green Port is sending or receiving data.
Ports 1 to 5 Speed
Green Connected at 1 Gbps.
Amber Connected at 100 Mbps.
Off Connected at 10 Mbps or
disconnected.
WAN1, WAN2, &
DMZ Link/Act
Green Port is online (link).
Flashing Green Port is sending or receiving data.
WAN1, WAN2, &
DMZ Speed
Green Connected at 1 Gbps.
Amber Connected at 100 Mbps.
Off Connected at 10 Mbps or
disconnected.
Modem Green Internal modem is in use.
3G/4G
Flashing Green 3G/4G interface is active.
Off 3G/4G interface is not active.
WiFi
Green Wireless interface is up
Flashing green Wireless interface is active
Off Wireless interface is down

Fortinet Fortigate 100D Specifications

General

Brand	Fortinet
Model	Fortigate 100D
Category	Firewall
Language	English
