Mounting Getting started

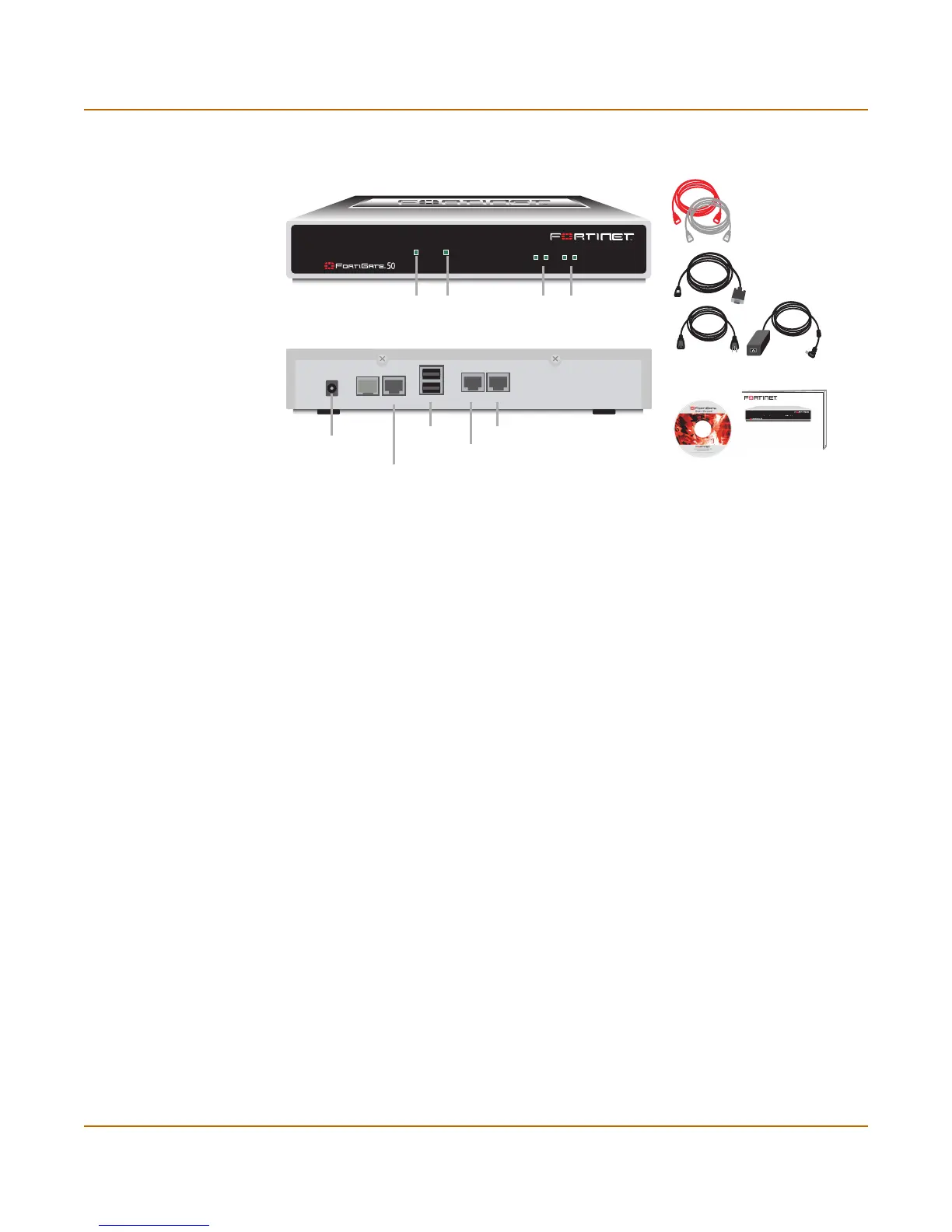

Figure 2: FortiGate-50A package contents
Mounting
The FortiGate-50A unit can be installed on any stable surface. Make sure that the unit
has at least 1.5 in. (3.75 cm) of clearance on each side to allow for adequate air flow
and cooling.
Dimensions
• 8.63 x 6.13 x 1.38 in. (21.9 x 15.6 x 3.5 cm)
Weight
• 1.5 lb. (0.68 kg)
Power requirements
• DC input voltage: 5 V
• DC input current: 3 A
Environmental specifications
• Operating temperature: 32 to 104°F (0 to 40°C)
• Storage temperature: -13 to 158°F (-25 to 70°C)
• Humidity: 5 to 95% non-condensing
PWR STATUS
INTERNAL EXTERNAL
LINK 100 LINK 100
PWR
STATUS
A
Power
LED
Status
LED
External
Interface
Internal
Interface
Documentation
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
USER MANUAL
FortiGate-50A
QuickStart Guide
Copyright 2004 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Power Cable Power Supply
RJ-45 to
DB-9 Serial Cable
Internal
External
DC+12V
USB
Back
Power
USB
Internal
Front
InternalExternal
LINK 100 LINK 100
PWR STATUS
External
Modem Console
RJ-45 Serial
Connection
